Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support

Manual Revision: October 16, 2024

Product ID

U1-USB-ISOLATOR

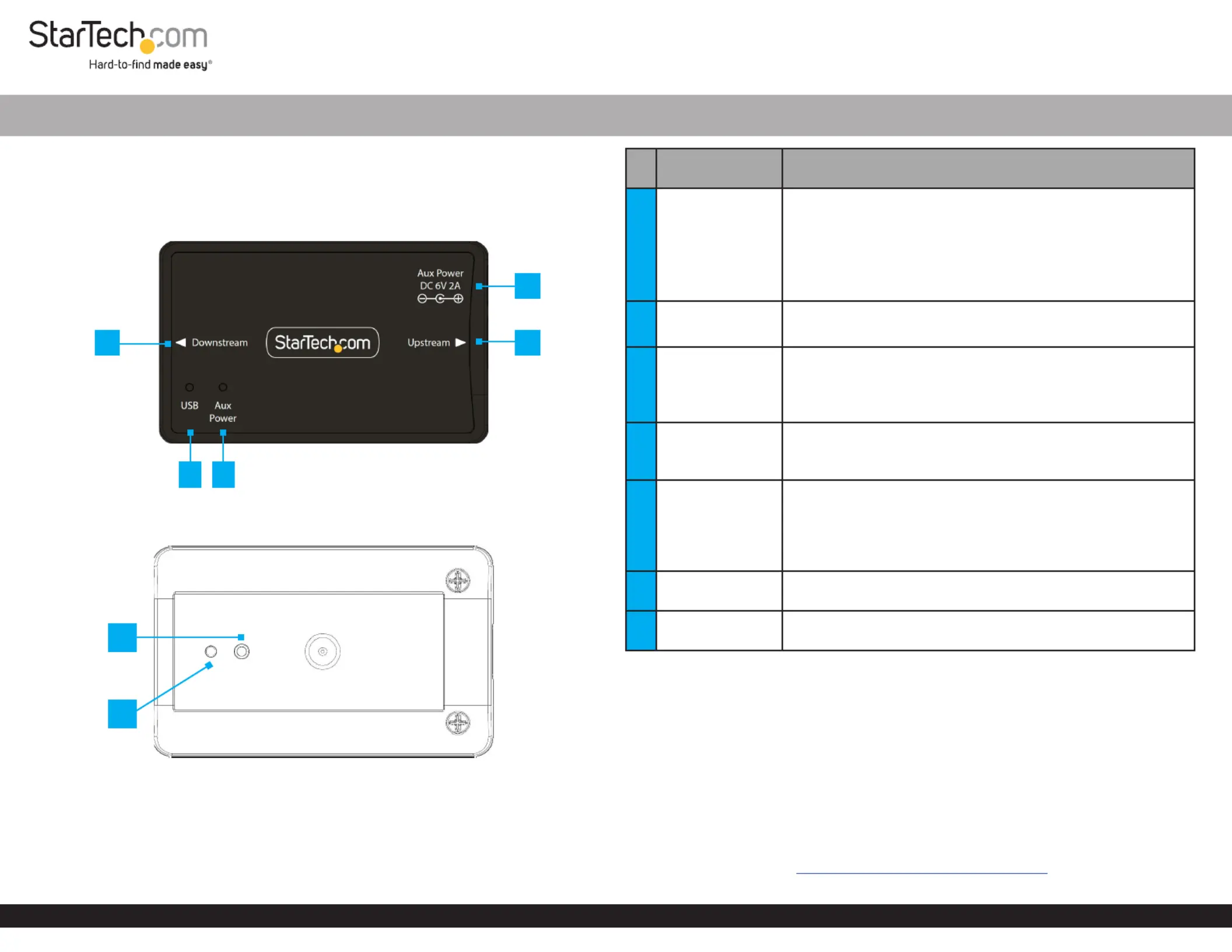

Top View

Bottom View

1-Port Industrial USB 2.0 Galvanic Isolator - Up to 6000V

Port/ConnectorFunction

1USB LED

• Solid Blue: Indicates there’s a connected to the USB Device

Isolated USB Device Port

Note: The Host Computer must detect the connected USB

Device before the LED turns on.

• O: No connected on the USB Device IsolatedUSB

Device Port

2Aux Power LED

• Solid Green: External power is being supplied

• O: No external power is being supplied

3

Isolated USB

Device Port

(Downstream)

• USB Type-A port. Provide up to 250mA output when not

using the optional power adapter

• USB 2.0 compliant

• Supports 1.5Mbps and 12Mbps only

4

USB Host Port

(Upstream)

• USB Type-B port

• Connect to the using the supplied Host ComputerUSB-B

to USB-A Cable

5DC Power Port

• (Optional) If the requires more than IsolatedUSB Device

250mA and less or equal than 500mA, an external Power

Supply (not included) is required

• 6V DC 2A Power Adapter Recommended

• Type M barrel plug: Ø 5.5x2.1x9.5mm. Center tip positive

6

DIN Rail

Mounting Point

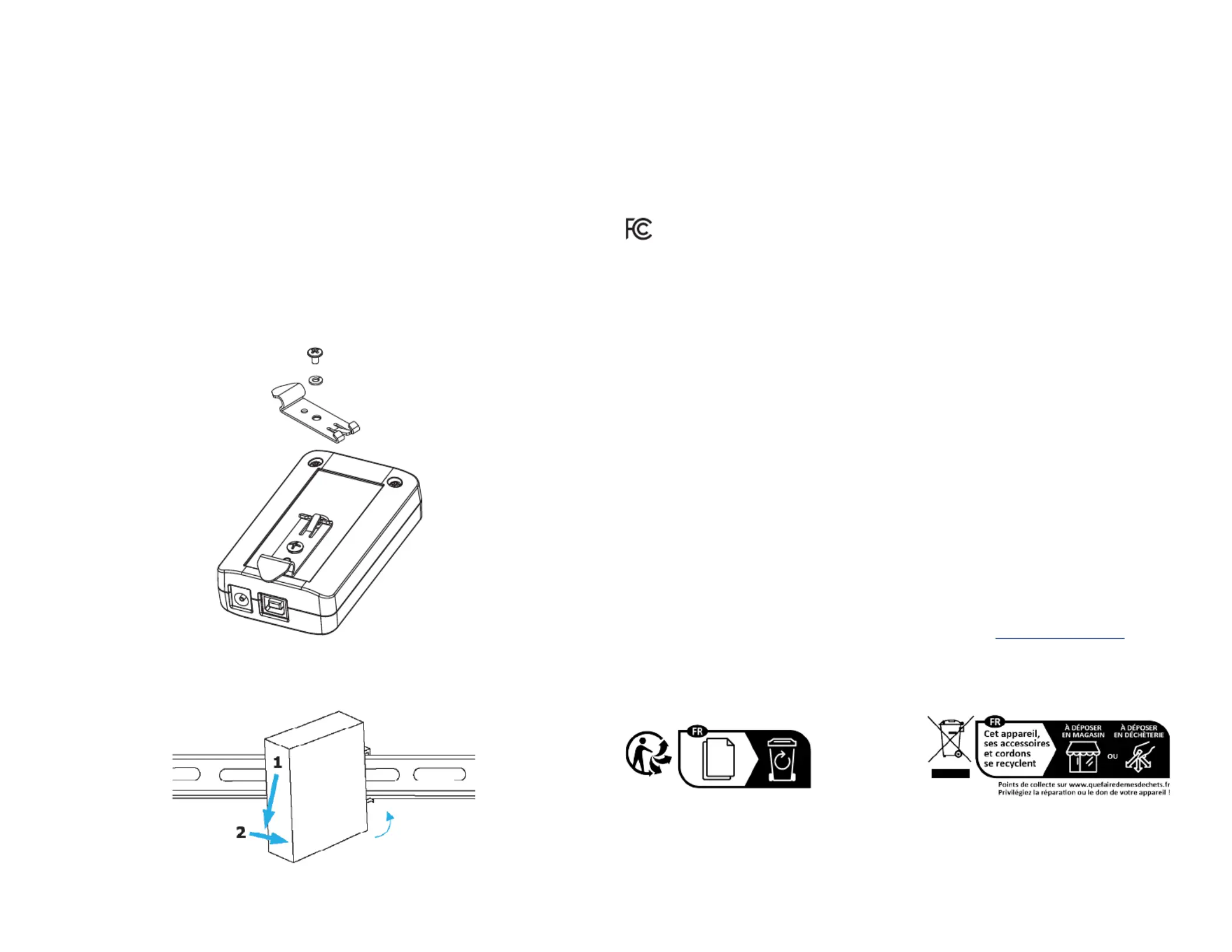

• Use to secure the included DIN Rail Mounting Kit

7Guide Peg

• Helps to install the so it can be DIN Rail Mounting Kit

installed only in one way

Package Contents

• USB Isolator x 1

• 3ft (0.9m) USB-B to USB-A Cable x 1

• Adhesive Strip x 1

• DIN Rail Mounting Kit x 1

• Quick-Start Guide x 1

Requirements

For the latest manuals, product information, technical specications, and declarations of

conformance, please visit:www.StarTech.com/U1-USB-ISOLATOR

*Product may vary from image

3

6

1

2

4

5

7
