ATOLL ELECTRONIQUE

OWNER’S MANUAL ~ INTEGRATEDINTEGRATED

ATOLL ELECTRONIQUEPage 5Page 4

An optional remote control is available. It is equipped with 2 Lithium CR2025

batteries. This remote control is also able to drive all others ATOLL’s products: CD

players, Tuners, DACs.

(2)

Tape In/Out - Monitoring:

The TAPE function allows recording music from any selected sources. Select the

source then hold 3 seconds on the TAPE key. TAPE Led (21) switch on and indicates

that monitoring is active. This function can also be used to insert a filter (or equalizer).

(3)

Using of the BY-PASS Input:

The source selection is made with the keys (27). To switch from analog sources

to digital sources (if you have this option), you must press these 2 buttons

simultaneously. When digital sources are selected, the indicator (23) lights up.

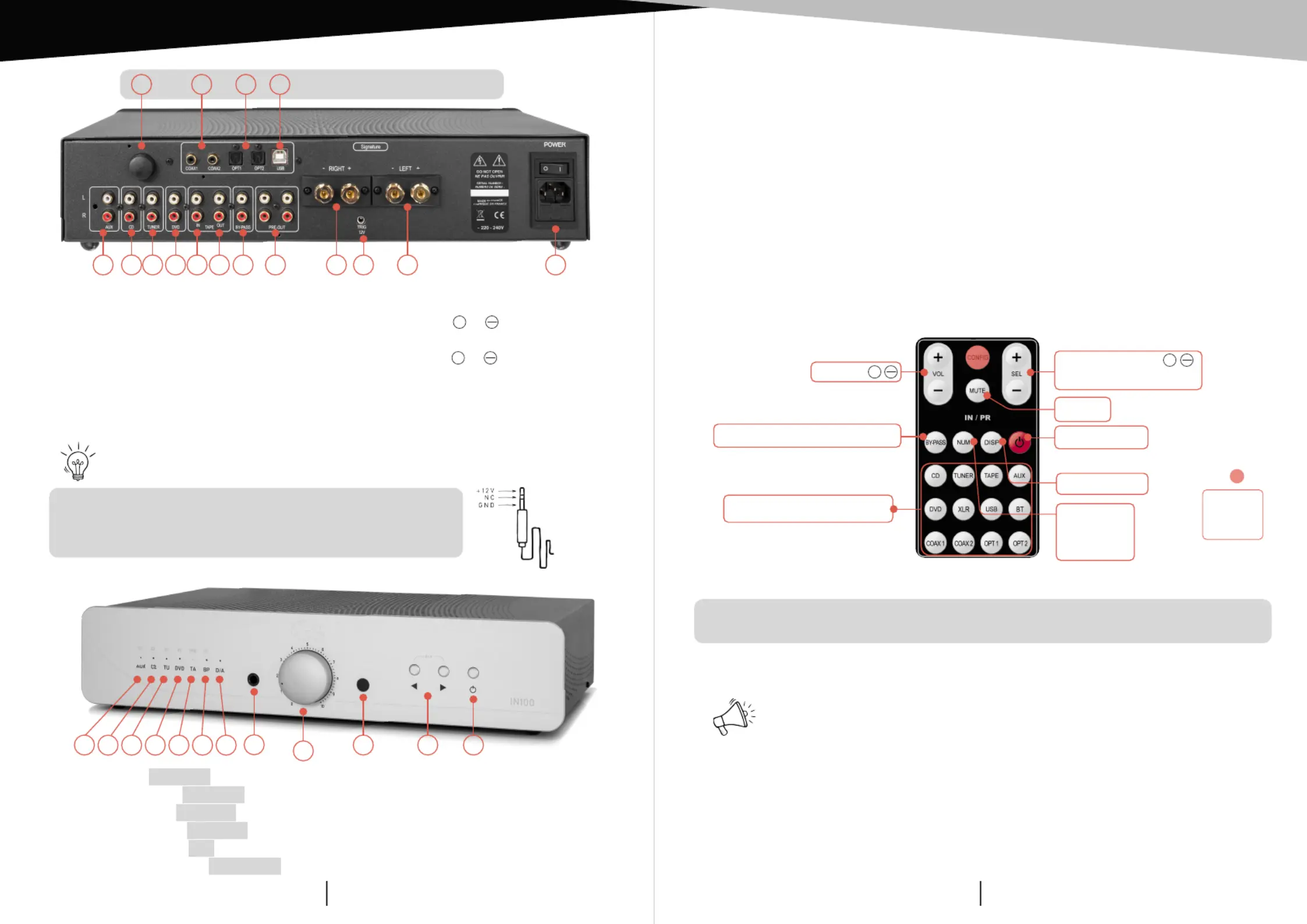

8) Preamp output (to 1 or 2 amplifiers or to

a subwoffer).

9) Right speaker output (

+

&).

10) Trigger output

(1)

.

11) Left speaker output (

+

&).

12) Switch and general plug-in ON/OFF

(with protection fuse).

1) Aux input (or phono optional).

2) CD. input.

3) Tuner input.

4) DVD input.

5) Tape input (IN-PLAY)

(2)

.

6) Tape output (OUT-REC)

(2)

.

7) BY-PASS input.

13) Bluetooth receiver.

14) Coaxial inputs 1 & 2.

15) Optical inputs 1 & 2.

16) USB input (B type).

17) AUX or Coaxial 1.

18) CD. input or Coaxial 2.

19) TU input or Optical 1.

20) DVD input or Optical 2.

21) TAPE input or USB.

22) BY-PASSBluetooth input or ®.

23) Digital/Analog indicator

(3)

.

24) Headphones jack.

25) Volume control.

26) IR receiver.

27) Inputs selector

(3)

.

28) Stand-by key.

REMOTE CONTROL

DETAILS OF FUNCTIONS

Digital board (optional):

(*)

MUTE key: to get off the Mute, press any active key of the remote control.

(1)

Access to inputs OPT1 – OPT2 – COAX1 – COAX2 – USB – BT is only possible if

your appliance is equipped with the digital board.

(1)

Trigger output: this output is used to control the switching off/on of any device

equipped with a compatible trigger input (see instructions for use).

Trigger cable must be a Male to Male stereo jack plug Ø 3,5mm (1/8”).

CONNECTING

The BY-PASS Input offer you the capacity to use your Integrated as a Power amplifier

(plugged to an A/V processor for example). This Input can be selected from the front

panel (key 27) or with the BY-PASS key of the remote control (hold 3 seconds).

Once selected, led (22) switch on. Then, no other functions are available from the

front panel or the remote control (except Stand-by). The Integrated can be used

exactly as a Power Amp. Press once BY-PASS to get back from this mode.

USING THE BY-PASS INPUT

Warning: reduce the volume of the source connected to BY-PASS before

any use of the BY-PASS input.

Non-

functional

keys

Direct access to sources

(1)

Sources selection

+

(except BY-PASS).

Mute

(*)

Stand-by

Display menu

Selection

of Digital

Inputs

BY-PASS selection (press 3 sec)

Volume

+

17

181920212223

25

26

24

2728

Jack

Ø 3,5 mm

Optional Digital Board

123

4

5

6

7

81210911

13141516
