Adder View Secure AVS 2114 Käyttöohje
Lue alta 📖 käyttöohje suomeksi merkille Adder View Secure AVS 2114 (17 sivua) kategoriassa Kytkin. Tämä opas oli hyödyllinen 20 henkilölle ja sai 4.9 tähden keskimäärin 10.5 käyttäjältä
Sivu 1/17
ADDERView
™
Secure (AVS 2114, 2214, 4114, 4214)
User Guide
Experts in
Connectivity
Solutions
KVM Switching
Solutions
INSTALLATION
1
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
Introduction
Welcome ................................................................................................................ 2
Free-Flow .........................................................................................................2
Features ............................................................................................................2
Tamper-evident labels ..........................................................................................3
Technical specications .......................................................................................4
Supplied items ....................................................................................................... 5
Optional extras .....................................................................................................6
Installation
Connections ..........................................................................................................7
Computer connections ................................................................................. 8
Console connections .....................................................................................9
Remote control unit connection ..............................................................10
Remote control splitter connection ........................................................10
Power connection ........................................................................................10
Conguration
Terminal mode ....................................................................................................11
Creating a new admin account ..................................................................12
Changing an admin account password.....................................................12
Changing channel button indicator colors .............................................12
Performing a factory reset .........................................................................13
Changing the hotkeys ..................................................................................13
Channel names and security levels ...........................................................13
Operation
Switching between channels ............................................................................14
Free-Flow .......................................................................................................14
Guard mode ..................................................................................................14
KM Conguration ..............................................................................................15
Audio hold ...........................................................................................................15
Status display .......................................................................................................15
Remote control unit ......................................................................................... 15
Error indications .................................................................................................15
Further information
Getting assistance ..............................................................................................16
Appendix A - Terminal mode conguration ............................................ 17
Appendix B - Hotkey commands ............................................................20
Index
Contents
INSTALLATION
2
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
Introduction
Safety
Please refer to the safety booklet provided in the box before use of this product.
WELCOME
Thank you for choosing a ADDERView™ AVS secure switch for sharing single or dual
head video, USB keyboard and mouse, plus analog audio between four computers
spanning multiple security classication levels. Separate models are available which
support single video displays for each channel or dual video displays throughout. In each
case you have a choice of either DVI or DisplayPort video operation.
Free-Flow
To remove the need to press channel
buttons when switching, you can use
the Free-Flow feature instead (see page
14). When enabled, you may switch
channels by moving the mouse across
monitor edges according to the video
layout. The front panel displays the
currently selected channel number.
Features
• Uni-directional keyboard, video, mouse and audio data paths prevent any potential
information leakage through shared peripherals.
• No shared memory between channels: The keyboard and mouse processor is powered
down and reset at each switchover to thwart shared data leakages.
• Automatic switching between channels (congurable Free-Flow mode)without the need
to press any buttons. Simply move the mouse between windows.
• Clear channel identication to reduce the chances of operator error by displaying a
user dened name and security classication for each channel on the status display.
The color of the channel indicators may also be congured to reect the security
classication.
• Hardware anti-tampering: Holographic anti-tampering labels protect the product’s
enclosure, providing a clear visual indication if it has been opened or compromised.
• Restricted USB function: The USB ports will only accept HID (Human Interface
Devices), such as keyboards and mice.
• There is no access to the product’s rmware or memory through any port. Firmware
is permanently stored in non-reprogrammable Read Only Memory (ROM) to prevent
modication. Firmware integrity is veried through a self-test procedure during
power up. Detection of a critical failure disables the device and provides a clear visual
indication to the user.
12
34
1 2 3
3
1
4
4
2
4321
ADDERView
AVS
2214
SECURE
CH: 1 ATUM
AUDIO:
1
TSECRET
KM conguration

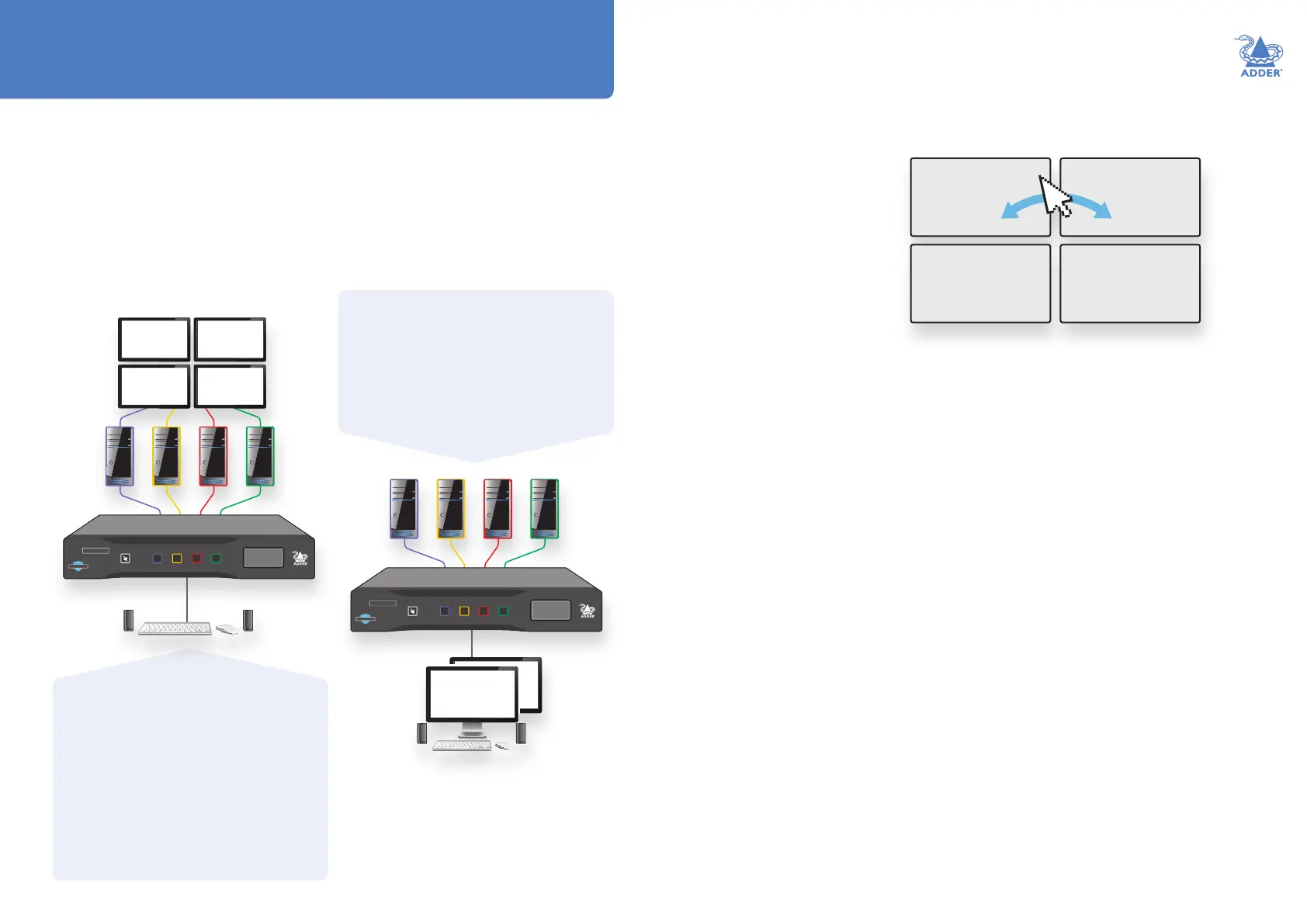

The user console consists of keyboard,
mouse and speakers. The video displays
are arranged in a default 2x2 grid and are
all connected directly to their respective
computers. The operator can view all
of the channel outputs simultaneously.
This arrangement requires the Free-Flow
feature (see page 15) to be used to
allow automatic switching of the console
between channels.
1 2 3 4
4321
ADDERView
AVS
2214
SECURE
CH: 1 ATUM
AUDIO: 1
TSECRET
KVM conguration
The user console consists of keyboard,
mouse, speakers and also video display(s),
which are all connected to the secure
switch. The common video display(s)
show the output of the currently active
channel.
The secure switch can be used in two
main congurations depending on the
requirements of the installation:
