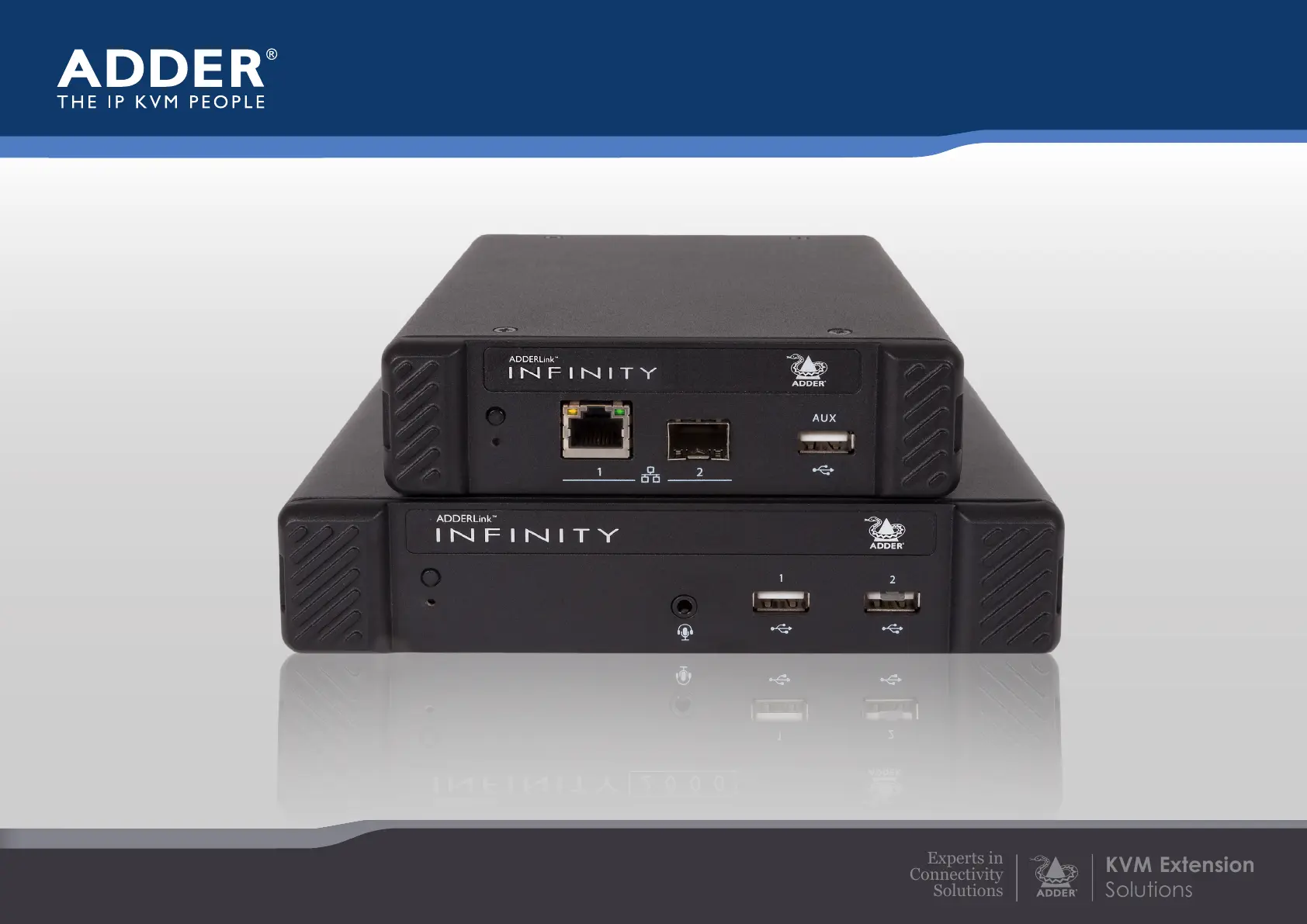

ADDERLink
®
INFINITY 1000 & 2000 Series
ALIF1102, 1104T, 2102, 2122 and 2124T User Guide
Experts in
Connectivity
Solutions
KVM Extension
Solutions
INSTALLATION
1
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
Introduction
Welcome ................................................................................................................ 2
Local feed through ...............................................................................................3
Technical Specications .......................................................................................4
ALIF1102 & 1104 unit features .........................................................................5
ALIF2102 unit features ........................................................................................6
ALIF2122 unit features ........................................................................................7
ALIF2124 unit features ........................................................................................8
Supplied items ....................................................................................................... 9
Supplied items .....................................................................................................10
Optional extras ................................................................................................... 11
Installation
Connections ........................................................................................................12
Mounting ..............................................................................................................12
TX video links ...............................................................................................13
TX audio links ...............................................................................................13
TX USB links .................................................................................................14
TX power in ..................................................................................................15
TX/RX high speed links ..............................................................................16
RX video displays .........................................................................................18
RX audio devices ..........................................................................................19
RX USB devices ............................................................................................20
RX power in ..................................................................................................21
Conguration
ALIF conguration via web pages ...................................................................22
Performing a manual factory reset .................................................................23
Placing the device into recovery mode .........................................................24
Conguring dual touchscreens ........................................................................25
Creating an unmanaged matrix .......................................................................26
Creating and editing presets ............................................................................27
Operation
Indicators .............................................................................................................28
Using the On Screen Display ........................................................................... 29
Port status popups .............................................................................................30
Further information
Getting assistance ..............................................................................................31
Appendix A - Conguration pages .................................................................32
Appendix B - Support for analog and digital audio.....................................52
Appendix C - Tips for success when networking ALIF units ....................53
Appendix D - Troubleshooting ........................................................................55
Appendix E - Glossary ......................................................................................57
Appendix F - Fiber/copper modules and cables ..........................................60
Appendix G - Using the optional ALIF1100/2100 rack shelves ...............61
Appendix H - Open source licenses ..............................................................63
Index
Contents
INSTALLATION
2
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
Introduction
WELCOME
Thank you for choosing the ADDERLink
®
INFINITY 1100 and INFINITY 2100 (aka
ALIF1100 and ALIF2100) high performance extenders. The range offers dual-head video,
audio and USB delivered over ber and/or CATx connections. Pixel-perfect color,
accurate picture quality at up to 2560x1600@60Hz and USB2.0 with fast switching.
Product in brief
• Support for dual link speeds up to 1GbE using either CATx and/or ber. Several model
variants available:
• ALIF1102 models have a xed 1GbE CATx port plus an SFP socket for additional
CATx or ber. They also have a single DisplayPort™ video connector,
• ALIF1104 transmitters have a xed 1GbE CATx port plus an SFP socket for
additional CATx or ber. They also have a single HDMI
®
video connectors,
• ALIF2102 models have a xed 1GbE CATx port plus an SFP socket for additional
CATx or ber. They also have two DisplayPort™ video connectors,
• ALIF2122 models have two SFP sockets for CATx or ber. They also have two
DisplayPort™ video connectors,
• ALIF2124 transmitters have two SFP sockets for CATx or ber. They also have two
HDMI
®
video connectors.
• Transmitter and receivers from the ALIF2102, ALIF2122 and ALIF2024 variants can be
freely mixed as necessary with the use of appropriate SFP modules,
• Support for 1x 2560x1600@60Hz or 2x 1920x1200@60Hz (ALIF2100 models only),
• Digital stereo audio via the video connections,
• Uni-directional analog audio (with combined headset jack on the receiver),
• Adder’s USB True Emulation for fast switching,
• Support for advance diagnostic and troubleshooting tools,
• Backwards compatibility with existing ALIF range,
• Plug and play.
IMPORTANT: When using AIM to congure ALIF
units, it is vital that all units that you wish to
locate and control are set to their factory default
settings. Otherwise they will not be located by
the AIM server. If necessary, perform a manual
factory reset on each ALIF unit.
Note: If you are using one or more transmitters
within an installation managed by an AIM
server, the AIM server must be running
rmware version 5.3 or above.

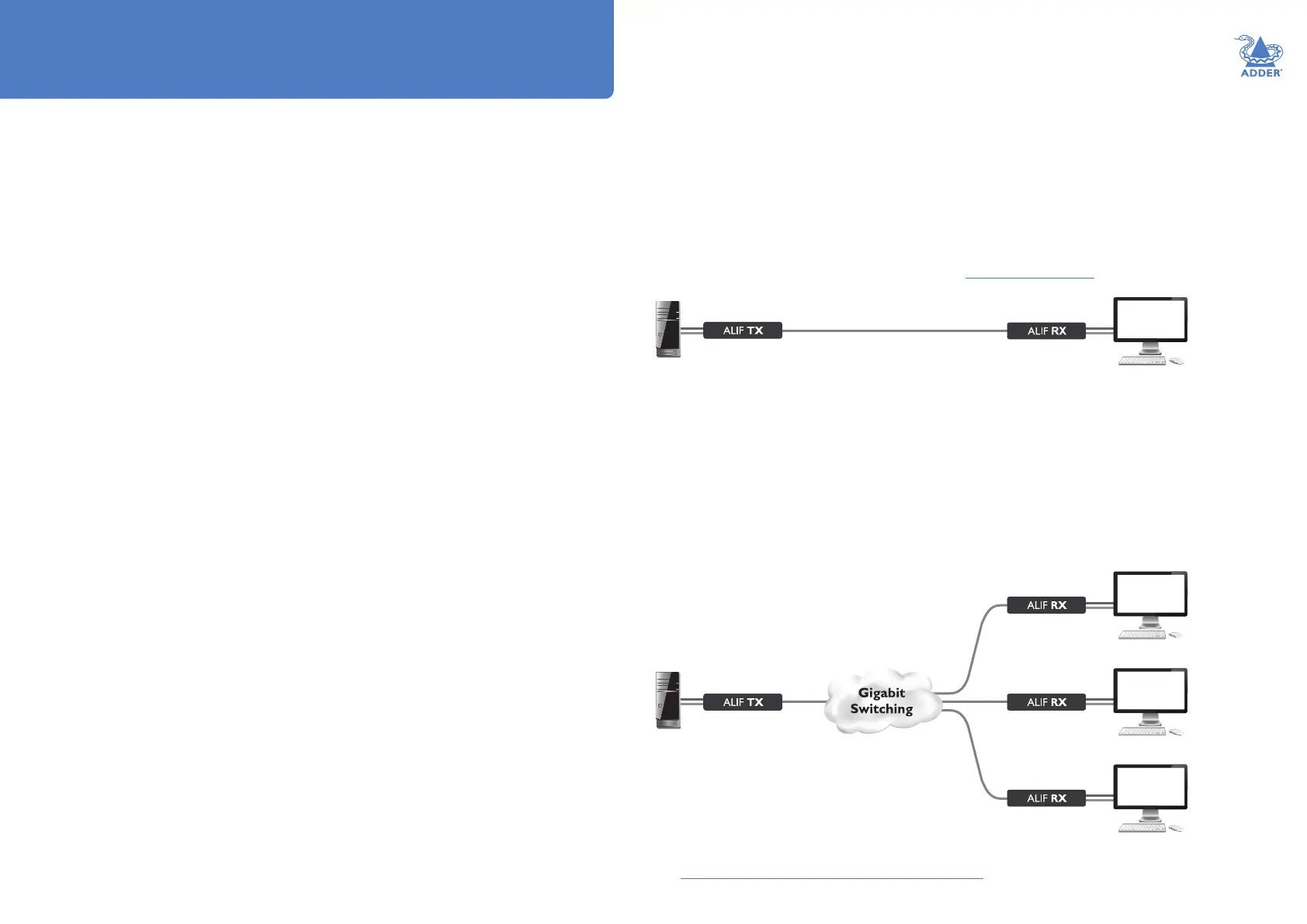

Linking
ALIF1100 and ALIF2100 units can be linked in two mains ways: Direct or Networked.
Direct linking
Where transmitters and receivers are directly linked to each other, very little
conguration action is required, provided that they both have their factory default
settings in place - just link them together. If the standard settings have been changed in a
previous installation, you merely need to perform a manual factory reset on each unit.
Networked linking
Where units are connected via networked links, you can either congure them
individually, or congure them collectively using an AIM server:
• Conguring networked ALIF units individually - In the absence of an AIM server,
unallocated units have the ability to locate each other. You can alter settings via the OSD
on the console connected to the RX unit by pressing CTRL + ALT + C.
• Conguring networked ALIF units collectively - The ADDERLink
®
INFINITY
Management (AIM) server allows you to congure, control and coordinate any number
of ALIF transmitters and receivers from a single application.
Safety
Please refer to the safety booklet provided in the box before use of this product.
See Start of Life: AIM or Point to Point conguration
