Introduction
Welcome ................................................................................................................ 2
Transport Layer Security (TLS) ......................................................................... 3
AdderLink Innity unit features ........................................................................4
Supplied items ....................................................................................................... 5
Optional extras .....................................................................................................6
Installation
Mounting ................................................................................................................7
Connections ..........................................................................................................8
TX video link ...................................................................................................9
TX audio links ................................................................................................. 9
TX USB link ...................................................................................................10
TX AUX port ................................................................................................10
TX power in ..................................................................................................11
TX/RX network link ....................................................................................12
RX video display ...........................................................................................13
RX microphone & speakers .......................................................................13
RX USB devices ............................................................................................14
RX AUX port ................................................................................................14
RX power in ..................................................................................................15
Conguration
Initial conguration ............................................................................................16
Manual factory reset ....................................................................................16
AdderLink Innity browser-based conguration utility .......................17
A rough guide to conguring TX and RX units .....................................18
TX (transmitter) unit conguration ...................................................18
RX (receiver) unit conguration .........................................................19
Performing an upgrade ......................................................................................21
Options switches ................................................................................................21
Operation
Front panel indicators .......................................................................................22
Further information
Getting assistance ..............................................................................................23
Appendix A - Transmitter (TX) unit conguration pages ..........................24
Appendix B - Receiver (RX) unit conguration pages ...............................31
Appendix C - Tips for success when networking ALIF units ....................39
Appendix D - Troubleshooting ........................................................................41
Appendix E - Glossary ......................................................................................43
Appendix F - Cable pinouts, video modes and general specications ...46
Warranty ..............................................................................................................47
Safety information ..............................................................................................47
Radio frequency energy ....................................................................................48
Index
Contents
INSTALLATION
2
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
Introduction
WELCOME
Thank you for choosing AdderLink Innity, otherwise known as ALIF or ALIF1000. ALIF
represents a major advance in the capabilities of digital extenders and switches. By
encoding high quality DVI video, digital audio and USB connections into Internet Protocol
(IP) messages, ALIF offers highly advanced and exible signal switching capabilities.
Adder’s extensive knowledge of interfacing techniques and high speed networking
has allowed us to develop new ways to break the chains of local DVI, USB and
audio connections. With ALIF, distance is nally no barrier to high specication, high
performance computing. Furthermore, since all signals are now IP, the most elaborate
and yet simple-to-use switching and multicast techniques make possible a great variety of
uses.
The TX transmitter attaches to a single computer while the RX receiver connects with
your DVI video monitor, microphone, speakers and up to four USB peripherals. The
distance between them is limited only by the size of your network.
In addition to separating one computer and its peripherals, ALIF promotes sharing.
You can arrange for a limitless number of screens and speakers, distributed anywhere
across the network, to receive video and audio. You can also switch between any number
of transmitter units from a single screen, keyboard and mouse in order to monitor a
potentially vast collection of remote systems.
All units feature browser-based conguration utilities to allow quick and easy set up,
from near or far.

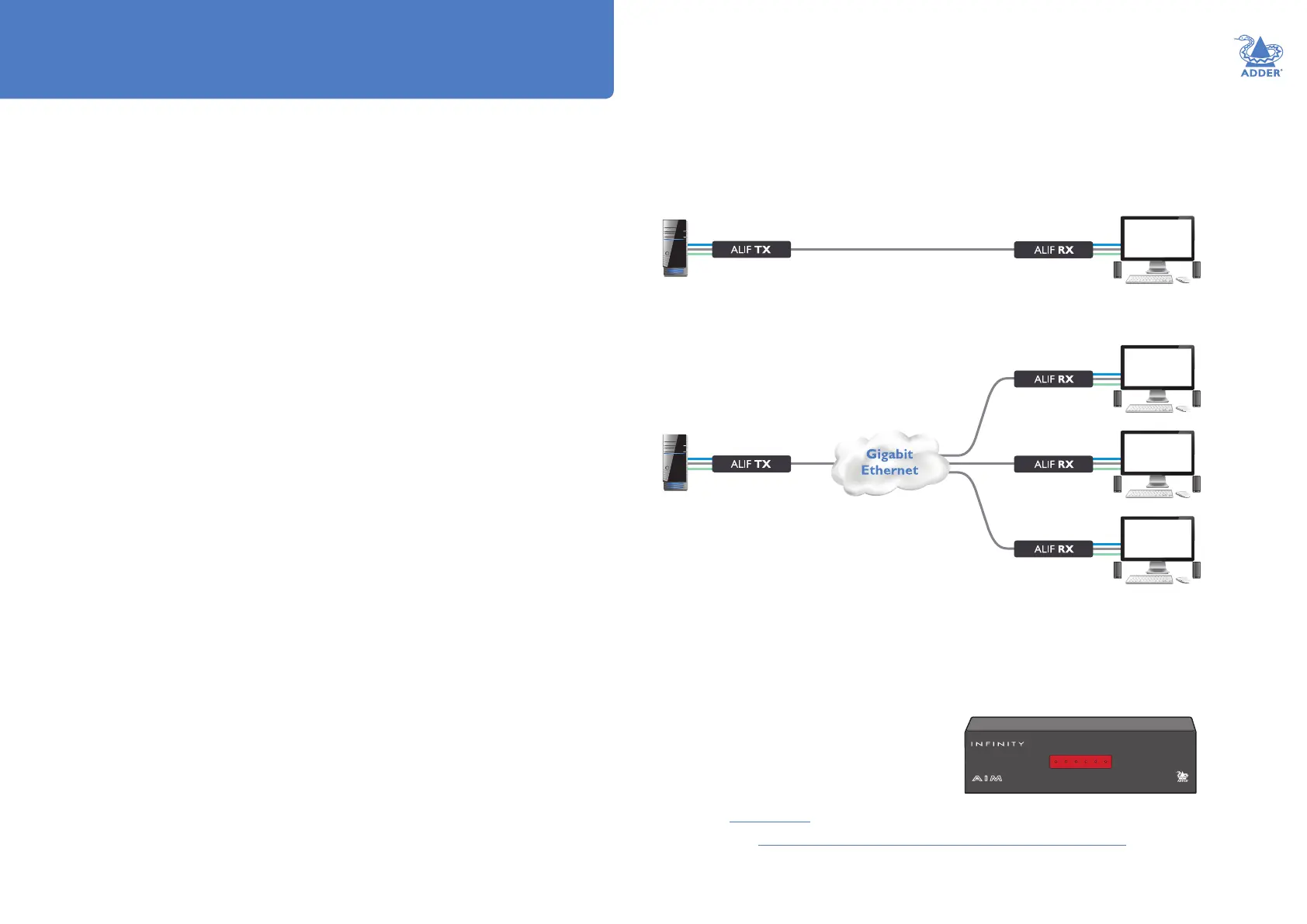

One-to-one conguration
The simplest conguration links one RX unit to a single TX unit, either by a
direct link or over much greater distances via a Gigabit Ethernet network.
ALIF and A.I.M.
Where multiple ALIF units are used on a network, we have developed the AdderLink
Innity Management (A.I.M.) server to allow comprehensive and secure central
control of all transmitters, receivers and users.
When using an A.I.M. server to congure ALIF
units, it is vital that all ALIF units that you wish
to locate and control are set to their factory
default settings. Otherwise they will not be
located by the A.I.M. server. If necessary,
perform a factory reset on each ALIF unit.
Please also see Appendix C - Tips for success when networking ALIF units
www.adder.com
AdderLink
ADM
ADM
USR
USR
UNC
UNC
ETH1
ETH1
ETH2
ETH2
PWR
PWR
MANAGEMENT SERVER
One-to-many conguration
Using multicast techniques, an unlimited number
of receivers* can receive video and audio data
streams from a single TX unit.
* A maximum of thirteen concurrent USB inputs (via
multiple RX units) are permitted to a single TX unit.
Mixing ALIF and ALIF dual units
AdderLink Innity dual (2000 series) units offer additional abilities of dual DVI video
channels plus the option of bre optic linking. They are complimentary to the standard
(1000 series) models and it is possible to mix ALIF and ALIF dual transmitters and
receivers on a network. However, whenever the two types are cross connected, the
extra abilities of the ALIF dual units will be temporarily disabled.
