Baldwin Hardware Corporation

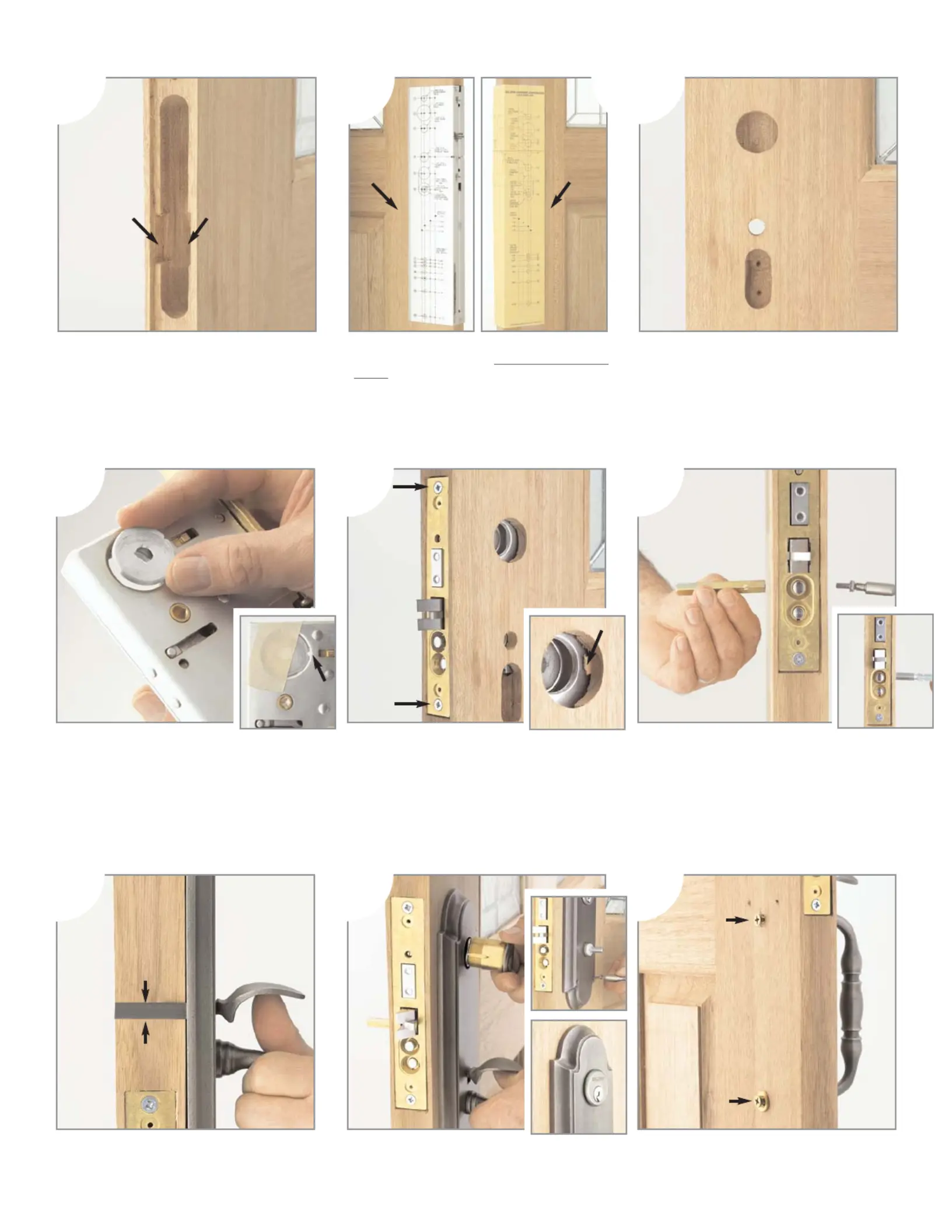

Mortise Lock Installation Instructions

TOOLS REQUIRED

1Pencil

2No. 2 and No. 3 Phillips Head

Screwdrivers

3No. 1 and No. 2 Slotted Screwdrivers

41/8" Allen Head Wrench

53/4" Wood Chisel or Corner Chisel

6Measuring Device

7Lock Mortising Tool (Recommended)

8Router and Lock Face Template

Note: In order to successfully install a mortise lock and trim, a minimum of average skill level is required with use of the above listed tools.

Read and understand the provided instructions BEFORE attempting to mark or cut the door and/or frame. If there are any questions

before you begin the installation, phone or visit your nearest Baldwin Distributor or contact the Technical Service Department at Baldwin

at 610.777.7811.

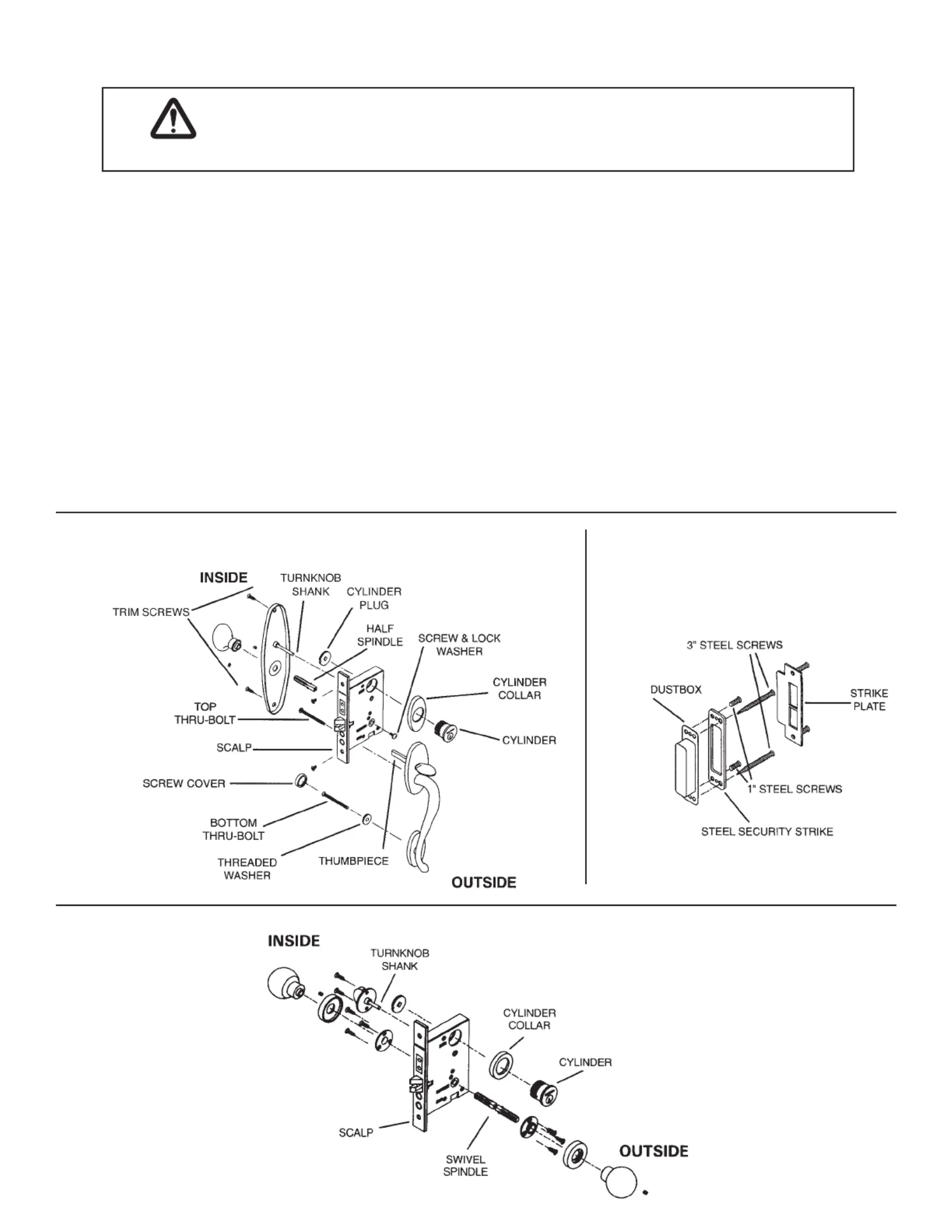

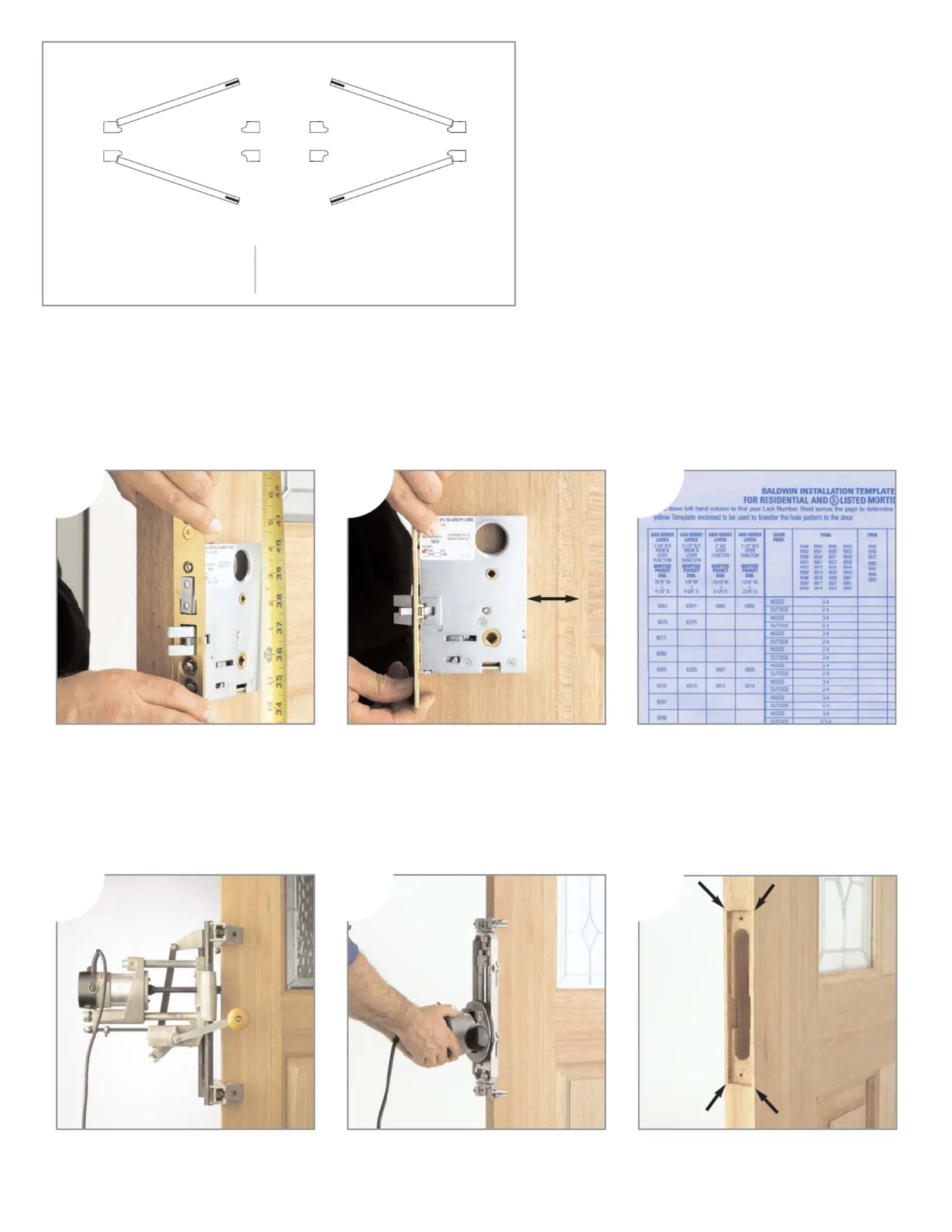

Diagram A

Diagram B

ENTRANCE HANDLESET

ENTRANCE LEVER/KNOB SET

9Combination Square

10Awl

11Hacksaw

12File (Wood Rasp and Metal)

13Baldwin Aligning Tool

14Drill and assorted Drill Bits (1/16", 1/8",

5/16", 3/8", 3/4", 1", 1-1/4")

15Screw Wax or Soap

16Powder Chalk, Graphite or Lipstick

CAUTION

Baldwin 2-1/2 and 2-3/4 backset Mortise locksare designed for residential use in UL-listed

fire-rated openings rated for 3-hour maximum. Meets U.S. UL10C (positive pressure) and

CANS-104M80. In the event of fire, lock will be permanently disabled when mechanism reaches

temperatures above 400˚F. Use in accordance with local fire code regulations.

PK 1076A 8/05
