Waves X-Crackle
Software Audio Processor
Users Guide
In this manual –
1. Introduction……………………………………2
2. Using X-Crackle...………….…………………3
3. Controls and Displays………………………..5
4. Important information and useful tips..……..6
The Noise Reduction Technology
licensed from Algorithmix ® GmbH, Germany.
All rights reserved.
1. Int
roduction
Thank you for choosing Waves! In order to get the most out of your new Waves
plugin, please take a moment to read this user guide. To install software and
manage your licenses, you need to have a free Waves account. Sign up at
www.waves.com. With a Waves account you can keep track of your products,
renew your Waves Update Plan, participate in bonus programs, and keep up to
date with important information. We suggest that you become familiar with the
Waves Support pages: www.waves.com/support. There are technical articles
about installation, troubleshooting, specifications, and more.
Waves X-Crackle reduces crackle sounds while preserving excellent audio
quality. X-Crackle is part of the Waves Restoration bundle, which restores vinyl
records and damaged recordings. X-Crackle and the other Restoration plug-ins
have a friendly interface that is easy to learn and use. X-Crackle has just two
parameters to adjust.
This user guide describes:
• the problems X- Crackle solves;
• how to use the software;
• the software user interface.
Click the ? on the toolbar for online help. Thanks for using X-Crackle and enjoy!
WHAT PROBLEMS DOES X-CRACKLE FIX?
Crackles are low-level transients or small clicks and pops interspersed in the
audio. While clicks (removed with the Restoration Plug-in X-Click) are more
obvious and usually overpower the actual audio, crackles are more subtle,
damaging a couple of samples in the area in which they occur. This can add up
to a very annoying disturbance.
The Waves X-Crackle Plug-In effectively removes crackles from old vinyl and
shellac records. Unlike other noise-reduction systems, X-Crackle creates
virtually no audible artifacts if the correct settings are used.
For complete restoration of vinyl records we recommend using X-Crackle after
X-Click. These plug-ins can also be chained together (X-Click->X-Crackle) in a
single process.
HOW DOES X-CRACKLE WORK?
X-Crackle employs the most recent psychoacoustic research and multilevel
decision algorithms to remove crackle while preserving the sonic clarity of the
source. It performs better than comparable DAW tools and as well or better than
more expensive, dedicated-hardware solutions. X-Crackle reduces noise with
the least possible damage to the source recording.
Waves X-Crackle software guide page 2 of 6
Waves X-Crackle software guide page 3 of 6
2. Using X-Crackle
X-Crackle uses two parameters:
• Threshold sets the amplitude for crackles targeted for removal. A
Threshold value between 50 and 70 works well in most situations. More
noisy sources can use a setting as high as 80 without introducing artifacts.
The maximum setting of 100 should be used for the most corrupted
sources and results in a smoothing of the input signal.
• Reduction sets the attenuation applied to the detected crackle.

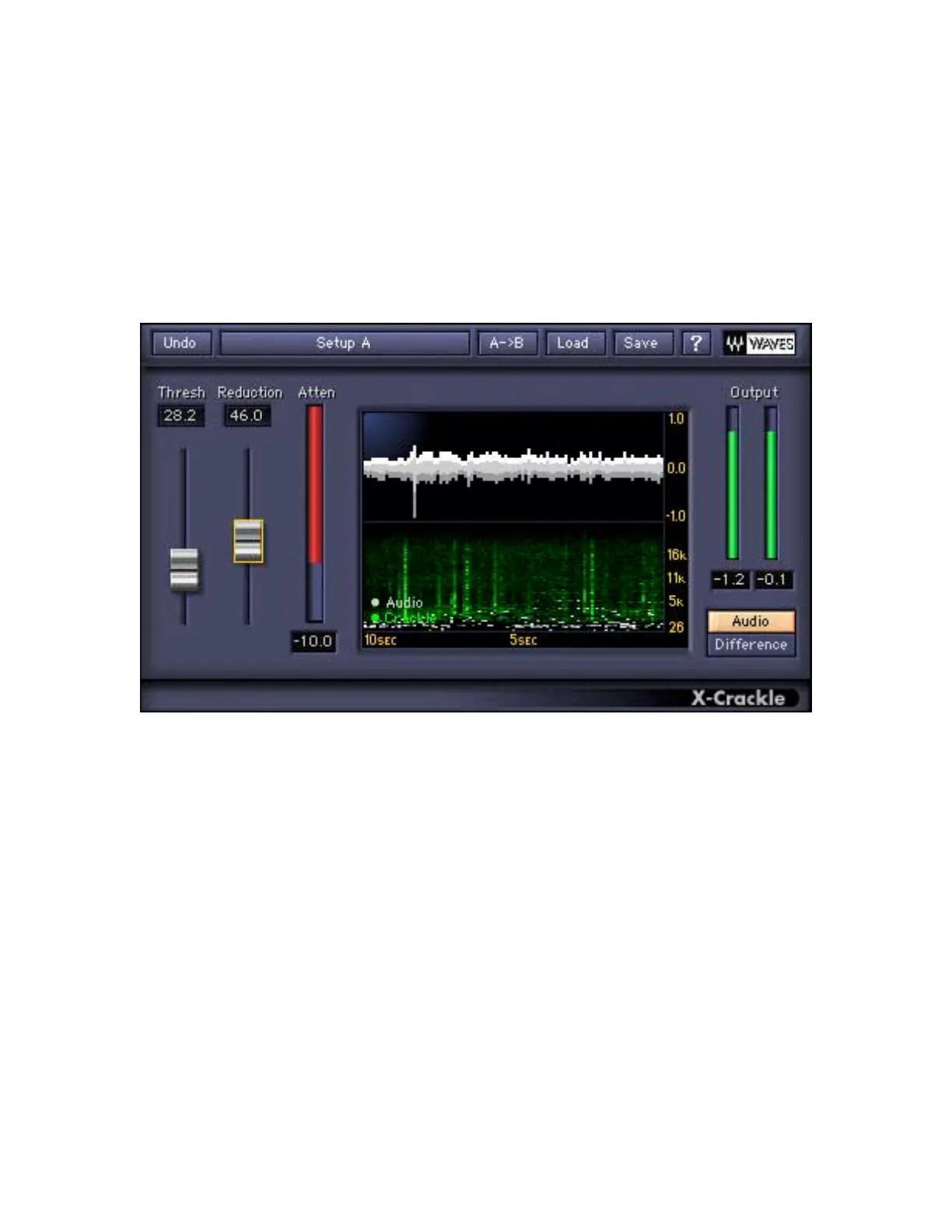

The X-Crackle Scope (see Displays section) shows the crackles removed from
the input signal in the bottom sonogram (green waveform).
Experiment with the Threshold and Reduction parameters by listening to different
parts of the recording. Determine whether one setting is appropriate for the entire
recording or whether several sections should be treated individually. We
recommend using headphones to most accurately assess the best settings
For additional help, use the Difference feature in the monitor section (see
Controls section). You can switch between monitoring the processed audio path
(Audio) and the signal removed by X-Click (Difference). This differential signal
should contain only crackle, not desirable parts of the audio signal. If it does
contain audio, try lowering the Threshold and/or Reduction parameters to
minimize the removal of audio transients.
