Contents

1 General safety instructions _______________________________ 2

2 Installation ___________________________________________ 9

3 Description of the controls ______________________________ 20

4 Operating instructions __________________________________ 32

5. Cleaning and maintenance ______________________________ 52

6. Troubleshooting. What to do if... __________________________ 55

7. Troubleshooting ______________________________________ 60

Thank you for choosing one of our products.

You are advised to read this manual carefully; it contains all the

information you need about the right conditions for the proper, safe use of

your dishwasher.

The individual sections are laid out to provide you with a step-by-step

guide to all your appliance's functions; the texts are easy to understand

and are complete with detailed illustrations.

Recommendations are given for the correct use of the baskets, spray

arms, containers, filters, washing programs, and for operating the controls.

Following the cleaning instructions provided here will keep your

dishwasher's performance at peak levels in the long term.

This user-friendly manual will provide answers to all your questions about

use of the dishwasher.

INSTALLATION INSTRUCTIONS: these are intended for the qualified

technician who must carry out the installation, hook-up and testing of the

appliance.

USER INSTRUCTIONS: these consist of recommendations for using the

appliance, a description of its controls and of the correct cleaning and

maintenance procedures.

This manual includes options, programs and features that may be present

on the type of dishwasher you have purchased. For the specific

characteristics of your model, please refer to the manual supplied together

with the product.

Installation

TRANSLATION OF THE ORIGINAL

INSTRUCTIONS

1 General safety instructions

 This manual is an integral part of the appliance; it

must always be kept intact together with the

dishwasher for future reference (even if sold).

Before using the appliance, carefully read all the

instructions contained in this manual.

 This appliance is intended for indoor use in a

household environment and similar such as staff

kitchens of shops, offices and other workplaces,

institutions, and for the use by guests at hotels,

hostels, bed and breakfast and other residential

facilities. The appliance is designed and

manufactured to perform the following function:

washing and drying of dishes; any other use shall

be considered improper. The manufacturer

declines all responsibility for uses other than

those described above.

 Do not use appliances which have been damaged

during transit! If in doubt, contact your dealer.

 The appliance must be installed and connected in

accordance with the instructions provided by the

manufacturer. Installation must be performed by

qualified technicians in accordance with

applicable regulations.

Installation

 Never leave waste packaging unattended. Do not

allow children to play with packaging materials.

Separate waste packaging materials by type and

consign them to the nearest recycling centre.

 The plate with the technical data, serial number and

marking is in a visible position on the inside edge of

the door. It must not be removed.

 The appliance must be earthed in compliance with

electrical safety regulations. The manufacturer

declines all responsibility for damage to

persons or property resulting from failure to

earth the appliance or from a defective earth

connection.

 During the installation the appliance must be

disconnected from the network.

 Do not install the appliance in a place subject to

freezing.

 Do not install the appliance near equipment with

high irradiation temperature (e.g. gas burners,

fireplaces, etc.).

 If the appliance is installed in a compartment above

or below another equipment (e.g. gas burners,

ovens, etc.), read carefully the instructions provided

by the manufacturer of the equipment. If the

instructions of the equipment do not contain

information, contact the manufacturer of the

equipment to ensure that the appliance can be

installed above or below it.

Installation

 Building-in the appliance underneath a hob is

absolutely forbidden. Installing a hob on top of free-

standing appliance is absolutely forbidden.

 To ensure stability, install the appliance only under

continuous worktop, securely fixed to adjacent

cabinets. If the appliance is installed in a high

cabinet, both the appliance and the cabinet must be

adequately fixed.

 If the appliance is not built-in and is therefore

accessible on one side, the door hinge area must

be covered for safety reason (injury hazard). The

covering fixtures are available as an accessory from

specialist dealers or the after-sales.

 Check that the voltage and the frequency of the

mains match the ratings on the name plate of the

appliance.

 The plug on the supply cord and the corresponding

socket outlet must be of the same type and meet

the regulations in force. Do not use adaptors or

shunt connections in order to avoid the possibility of

overheating or burning.

 The plug of the appliance must be accessible after

installation. Never disconnect the plug by pulling on

the power supply lead.

 If the appliance is provided with a plugless supply

cord, an omnipolar circuit breaker providing a full

disconnection in overvoltage protection class III

must be installed in an easily accessible position on

the supply line.

Installation

 The appliance be connected to the water must

supply by means of new hoses.

 Briefly test the appliance after installation. Run a

wash cycle with a temperature of between 45 and

70°C with the dishwasher empty and using a

specific dishwasher detergent. (It is not sufficient to

run a soak cycle). If the dishwasher fails to operate

correctly, disconnect it from the electrical power

supply and call the nearest technical service centre.

Never attempt to repair the appliance yourself.

 The dishwasher should only be used by adults. Use

by children aged from eight years and persons with

reduced physical, sensor or mental capabilities or

lack of experience and knowledge is only permitted

under the supervision of a person responsible for

their safety.

 Do not allow children to play with the appliance.

 Keep children away from the dishwasher when the

door is open. Always check that the detergent

distributor is empty after completion of the wash

cycle.

 Cleaning and regular maintenance of the appliance

by children is only permitted under the supervision

of a person responsible for their safety.

 Some detergents are strongly alkaline. Avoid

contact with the skin and eyes. Detergents can be

extremely dangerous if swallowed. They contain

substances capable of causing permanent damage

to the mouth and throat, and even leading to

Installation

suffocation. Observe all the safety instructions on

the packaging of these products.

 Do not drink the water residues which may be

present on the dishes or appliance at the end of the

washing program.

 Never place solvents such as alcohol or turpentine,

which are potentially explosive, inside the

appliance. Never load dishes soiled with ash, wax

or paint.

 Never leave the dishwasher door open; people

might trip over it. Leaning or sitting on the

dishwasher door when open may cause the

appliance to overturn and/or damage it.

 Switch off the dishwasher after use to avoid wasting

electricity.

 Knives and other kitchen equipment with sharp

edges must be placed in the basket with their tips

downwards, or horizontally in the top basket; take

care not to injure yourself on any sharp edges

protruding from the baskets.

 The appliance satisfies all applicable safety

regulations governing electrical equipment. Any

technical checks should be conducted exclusively

by trained and authorised technicians: repairs

performed by unauthorised persons not only

void the warranty but may also put the user’s

safety at risk.

 In the event of a fault, disconnect the dishwasher

from the electrical power supply and shut off the

Installation

1.1 Declaration of conformity

The appliance complies with the essential requirements

of the following European directives:

- 2009/125/EC

- 2011/65/EU

- 2014/35/EU

- IEC/EN 62471, risk group 1, for models with internal

lighting.

- IEC/EN 61770

1.2 Disposal

This appliance must be disposed of separately

from other waste (directive 2012/19/EC).

The appliance does not contain substances in quantities

sufficient to be considered hazardous to health and the

environment, in accordance with current European

directives:

To dispose of the appliance:

 Cut the power cable,

 make the lock unusable.

The manufacturer declines any liability for damage

or injury caused by failure to comply with the

instructions indicated above or as a result of

tampering with even just one part of the appliance,

and the use of non

original spare parts.

Installation

2 Installation

2.1 Technical characteristics

Water supply pressure min. 0.05 - max. 0.9 MPa (min. 0.5 –

max. 9 bar)

Water supply temperature

max. 60°C

Capacity

13 standard place settings

Class of protection against

moisture

IPX0

Protection against electric

shock

class I

Electrical data

see the data plate

Appliance dimensions (mm)

Installation

2.2 General information



Remove the polystyrene basket retainers.



Position the appliance in the desired place of

installation.

 This

appliance may be placed up against walls or

other furniture units.



If the appliance is installed near a heat source, fit a

special insulating panel to prevent overheating and

malfunction of the appliance.

 To ensure stability, install integrated or built-

under

dishwashers only under continuous worktops, and

screw them to the adjacent units.



To facilitate the installation procedure, the intake

and drain hoses can be positioned in any direction;

make sure that the hoses are not kinked, crushed or

pulled too tightly.



Make sure to tighten the locking ring nut once the

hoses have been placed in the direction required.



A hole at least 8 cm in diameter is required to allow

the power supply cable and hoses to pass.

 At the end of the installation, perform a sh

ort test of

the appliance: open the water tap and check that

there are no leaks.



To install the dishwasher against the back wall, the

hoses should be passed through the lower area

where there is a dedicated space for them.

 The following spare parts will be available for 7

years after the model is no longer produced:

wash

Installation

pump, drain pump, heating elements; pipes and

hoses, valves, filters and acquastop devices;

structural and internal parts of the door (separately

or as an assembly); electronic boards and printed

circuits; electronic displays; pressure switches;

thermostats and sensors, software and firmware,

including reset software.

 The following spare parts will be available for 10

years after the model is no longer produced: door

hinge and seal; other seals; spray arms; filter unit,

baskets, runners and accessories.

 Some spare parts are only available to authorised

repairers.

 Not all spare parts apply to all models.

 The EU EPREL database provides information

regarding dishwasher performance. The database

can be consulted directly using the QR code on the

dishwasher's energy label or via the following link

https://eprel.ec.europa.eu. In this case, you have to

enter the name of the model indicated on the data

plate on the side of the door.

For detailed information on the energy label:

www.theenergylabel.eu

Level the appliance on the floor

using the

appropriate Allen key to regulate the adjustable

feet. This operation is essential for ensuring

correct operation of the dishwasher.

Installation

Some models are equipped with only one

adjustable foot at the rear, which can be

adjusted by turning the

screw on the lower front

part of the appliance.

Building-in a dishwasher underneath a hob is

absolutely forbidden.

Moreover, dishwashers be installed may not

directly touching appliances which are not

conventional built-in kitchen appliances (e.g.

fireplaces, stoves, etc.).

When installing the dishwasher in a

compartment next to one or more other

appliances, it is essential to comply with all the

recommendations provided by the appliance’s

manufacturer

(minimum distances, installation

procedures, etc.).

Contact your dealer or visit the manufacturer’s

website to find out if your dishwasher can be

installed in a raised position. If it can be, yhe

dishwasher and the furniture in which it is

installed must b

e secured in such a way that

makes it impossible for it to tip over.

If the dishwasher is installed in a raised

position, be extremely careful when pulling out

the baskets to prevent objects or the baskets

from falling. The appliance may tip over if

instal

led incorrectly.

Installation

Building-in a dishwasher underneath a hob is

absolutely forbidden. Moreover, dishwashers

may not be installed directly touching appliances

which are not conventional built-in kitchen

appliances (e.g. fireplaces, stoves, etc.).

When installing the dishwasher in a compartment

next to one or more other appliances, it is essential

to comply with all the recommendations provided

by the appliance’s manufacturer (minimum

dis

tances, installation procedures, etc.).

For free-standing models only

- Installing a hob on top of a free-standing

dishwasher is absolutely forbidden.

- If the appliance is accessible from one side, the

door hinge area has to be covered for safety

reasons (risk of injury). The covers are available as

an accessory and can be ordered through the

Technical Assistance Service.

- The top surface of the dishwashers can be

removed toallow installation under a worktop. The

appropriate kit should be purchased from

authorised dealers or via the Technical Assistance

Service. This must be carried out by authorised

personnel.

Installation

2.3 Water supply connection

Preventing the risk of clogging or damage:

if the water pipe is new or has not been used

for a long time, before connecting to the water

supply check that the water is clear and free of

impurities, to prevent damage to the appliance.

The

dishwasher must always be connected

to the water system with new hoses; old or

used hoses must never be reused.

CONNECTING TO THE WATER

SUPPLY

Connect the intake hose to a cold

water supply with ¾” gas thread,

inserting the filter A

supplied with the

dishwasher.

Take care to screw the

hose firmly into place with your

hands and then complete by

tightening about ¼ of a turn with

pliers.

In dishwas

hers equipped with the

AQUASTOP device, the filters is

already fitted inside the threaded

ring.

Installation

The dishwasher can also be connected to a hot

water supply not exceeding 60°C

. Supplying

the appliance with hot water cuts down the

washing time be approximately 20 minutes, but

slightly reduces its effectiveness. Make the

connection to the domestic hot water supply

using the same procedure described for

connecting to the cold wate

r supply.

Supplementary note regarding the water

connection, for the German market:

Before connecting the product to the water supply,

make sure that that the water system has been fitted

with a safety device to protect drinking water against

contamination due to backflow (according to DIN EN

1717). The water valves and/or taps are fitted with these

safety devices if the water system of the house has

been properly implemented.

Installation

DRAIN CONNECTION

Insert the

dishwasher’s drain

hose into a drain pipe

having a diameter of

at least 4 cm

, or

alternatively, place it

inside the kitchen sink

using the plastic

support provided,

taking care not to

crush or excessively

bend the hose. It is

important to preven

the hose from coming

loose and falling.

For this purpose, the plastic support is

equipped with a hole for tying it to the wall or

water tap.

The free end should be positioned at

a height of between 30 and 100 cm,

and should

never be submerged in water. If a horizontal

drain extension hose is used (for a maximum 3

m), the drain hose can be placed at a maximum

height of.

85 cm

from the ground.

Class of protection against moisture: IPX0

Installation

2.4 Electrical connection and precautions

Check that the voltage and the frequency of the

mains match the ratings on the name plate of

the appliance positioned on the inner edge of

the door.

The plug on the supply cord and the

corresponding socket outlet must be of the

same type and meet the regulations in force.

The plug must be accessible after installation.

Never disconnect the plug by pulling on the

power supply lead.

After changing the supply cord, make sure that

the bracket which secures the cord is fixed

securely in place.

Do not use adaptors or shunt connections

in order to avoid the possibility of overheating

or burning.

In the event of damage to the supply cord,

have it replaced by the manufacturer or an

Authorized Technical Service Centre

order to avoid any risk.

Installation

Some components are live even

with the

ON/OFF position. Before performing any

maintenance work on the appliance,

disconnect it from the electrical power

supply.

IF THE APPLIANCE IS PROVIDED WITH A

PLUGLESS SUPPLY CORD:

An omnipolar circuit breaker in overvoltage

protection class III must be installed in an easily

accessible position on the power supply line.

The connection to the mains must be carried

out by a qualified technician in accordance to

the scheme shown below and the regulations in

force.

L = brown

N = blue

= yellow-

green

Class of protection against electric shock: I

Installation

FOR GREAT BRITAIN ONLY

This appliance must be earthed.

Fuse replacement

If the mains lead of this

appliance is fitted with a

1363A 13A

fused plug, to

change a fuse in this type of

plug use an A.S.T.A.

approved fuse to BS 1362

and proceed as follows:

1. ARemove the fuse cover

and fuse . B

Fit replacement fuse into

fuse cover.

Refit both into plug

The fuse cover must be refitted when

changing a fuse

and if the fuse cover is lost

the plug must not be used

until a correct

replacement is fitted.

Correct replacement are identified by the

colour insert or the

colour embossed in

words on the base of the plug.

Replacement fuse covers are available from

your local electrical store.

User instructions

3 Description of the controls

3.1 Upper panel

All the dishwasher controls are grouped on the front panel. Programming

and option selection are only possible with the . door closed

1 ON/OFF BUTTON AND WARNING LIGHT

2 OPTION SELECTION BUTTONS AND WARNING LIGHTS

3 “CHILD LOCK” ACTIVATION BUTTONS

4 START/PAUSE BUTTON

5 PROGRAM SELECTION BUTTONS

6 DISPLAY INFORMATION

7 HANDLE TO OPEN THE DOOR

N.B.: symbols and styling are guideline and may vary depending on

the model or version of the dishwasher purchased.

User instructions

3.2 Information display

The dishwasher is equipped with a practical which provides DISPLAY

information on the programmed dishwasher functions.

Rinse aid lack warning indicator

Salt lack warning indicator

End of cycle signal

“Child lock” option warning light

000

Delayed start indicator, wash cycle duration and alarms

H0….H5

Water softener setting indicator

b0….b5

Rinse aid setting indicator

Program phases warning lights

With program in progress, it indicates

the status of the program

Prewash

Wash

Rinse

Drying

CYCLE COUNTING (on some models only)

This function allows you to view the total number of cycles carried out since installation.

Press the button for 3 seconds to display the two screens that show the number of

cycles carried out by the machine.

A: B: C: D: thousands hundreds tens units

ABCD: total number of wash cycles carried out

User instructions

The number, type and the sequence of wash programs depend on the model

purchased. Refer to the instruction manual supplied together with the product.

(*)

ECO: Program with the lowest water and energy consumption for washing

normally soiled dishes, even with dried-on residues. The information refers

to the STANDARD EN60436 program (indicated in the programs table) that

is the most efficient in terms of combined energy and water consumption.

The program is suitable for normally soiled dishes and is used to assess

compliance with EU ecodesign legislation.

SOAK

CRYSTAL 45°

Pans and dishes while waiting

for another wash cycle

Wine glasses and lightly soiled

fine china.

½ LOAD

DELICATE 50°

For washing just a few normally

soiled dishes, washed

immediately after use

Wine glasses and lightly soiled

dishes.

MIX 65°

EXPRESS 27’

Normally soiled mixed loads

such as dishes and pans, even

with dried-on residues

Quick cycle for lightly soiled

dishes, washed immediately

after use.

HYGIENE 99,9%

SILENT

Intensive cycle for plates, pots,

pans, feeding bottles. Ideal for

baby dishes or if there are

allergy sufferers in the family in

order to achieve a higher level of

hygiene.

Normally dirty dishes, even with

dried-on residues. Ensures

maximum noise reduction and

is therefore ideal if you wish to

run it during the night.

AUTO SENSOR

FULL EXPRESS 60’

For normally soiled mixed loads

such as dishes and pans. The

dishwasher determines the

washing parameters

automatically.

Quick cycle for normally soiled

mixed loads such as dishes

and pans, even with dried-on

residues. Dishes are washed

and dried in 60 minutes.

GREEN EXPRESS

INTENS

E 70°

Quick cycle with low water and

energy consumption. For

normally soiled mixed loads,

washed immediately after use.

Heavily soiled plates, pots and

pans, even with dried-on

residues

If the dishwasher door is open or not properly closed, the washing cycle

will not start.

For Singapore market:

“ECO” is the recommended program designed to minimize water consumption for

normally soiled tableware at rated dishwasher capacity.

User instructions

HYGIENE

Increases the temperature of the final rinse to obtain a greater level of hygiene.

Suitable for the intensive washing of plates, pots, pans, cutting boards, feeding

bottles. Ideal for baby dishes or if there are allergy sufferers in the family.

NOTE: The Hygiene 99.9% program has been tested by an external laboratory (VDE)

without an option selected.

In order to be effective, the cycle should not be interrupted.

AUTOMATIC DOOR OPENING – DRY ASSIST

(always included in the ECO program)

(it may be included in other programs, please refer to the manual supplied

with the product).

The program ends with a drying cycle that consists of a time during which the door

is closed, and a time during which the door is slightly open (just waiting, to assist

drying). The duration depends on the program and model.

Any intervention (opening / closing the door, switching off etc.) during this stage will

end the program early.

The program can be interrupted during the drying cycle and the dishwasher can

unloaded before the cycle has completely ended, which is indicated by a visual

and/or audible alarm (depending on the model), but best drying results may not be

obtained.

The complete program ends only when indicated by a visual and/or audible

signal (depending on the m

odel).

There must be sufficient space available for the door to open. The

door must not be forced open and closed before the wash cycle

has ended completely.

(*) Standard program according to EN60436. The DRY ASSIST option (if the button

is present) must be active.

User instructions

REFERENCES ENERGY LABEL for the supplied with the dishwasher:

- The information refers to the program (indicated in EN 60436 - STANDARD

the program table), which is the most effective in terms of combined energy

and water consumption. The program is recommended for normally soiled

dishes and is used to assess ecodesign compliance with EU legislation.

- Drying efficiency is based on a scale from (minimum efficiency) to “G” “A”

(maximum efficiency).

Notice for testing institutes

Testing institutes are provided with guidelines for

comparative tests (e.g. according to EN60436).

please request the guidelines by contacting us at the

following e-mail address:

dishwasher@test-domestic-appliances.com

When making a request, please specify the model

(MOD) and the serial number (S/N) indicated on the

plate on the side of the door.

User instructions

3.3 Washing programs

Before starting a washing program make sure that:

 The water supply tap is . open

 The softener contains . container regenerating salt

 The has been added to the correct amount of detergent

dispenser.

 The baskets have been . correctly loaded

 The spray arms are able to and without rotate freely

obstruction.

 The dishwasher door is securely closed.

Warning:

during the initial phase of the washing program, the operation of sprayers

is not perceived because they start rotating about 5 minutes after the start.

This is the normal operation of the washing cycle.

LIGHTING

Pressing the button will start the dishwasher and will lit up the ON/OFF

dishwasher pilot light. After approximately from this operation 3 second

the will be turned on with a visualization that will depend upon DISPLAY

the state of the dishwasher.

PROGRAMMING

All the programming operations are possible only with closed door. With

open door, on the

DISPLAY

will appear

User instructions

END PROGRAM

At the end of the program the DISPLAY shows By pressing one of “end”.

the program buttons the dishwasher is ready to start a new cycle.

INTERRUPTING A PROGRAM

In order to interrupt a running program it is necessary:

 to press the for some seconds until when the START/PAUSE

led remains lit on (confirmation beep). At this point, START/PAUSE

it is possible to start the cycle again, otherwise:



TO CHANGE A PROGRAM

To change the running program it is necessary:

 to interrupt the running program (see “ ”); INTERRUPTING A PROGRAM

 select the new program;

 to press again the START/PAUSE button to make start the new

program.

STOPPING A PROGRAM

To cancel a program which is running:

 Interrupt the program (see " ") INTERRUPTING A PROGRAM

 Press the button and hold it down; the START/PAUSE

display will show and the dishwasher will immediately "P0"

switch to the end of the cycle and drain the tank (during this

process, the led will flash). When the drain "START/PAUSE

procedure ends, the end of cycle message appears on "End"

the display.

In case that the door is opened during the operation, to the next door

closing it is going to be necessary to start the program as shown in

paragraph “ ”. The program will resume from the STARTING THE PROGRAM

point in which it was interrupted.

In case that the tub temperature is higher than 50°C the program will

start about 60 seconds later.

User instructions

OPTIONS

The selection of options is controlled by the

relative buttons and indicated by the warning

light below the symbol. Please read the

paragraphs relating to each option for their

usage details.

Option

Description

1 SPECIAL

Creates additional programs.

2 DRY ASSIST

Allows the dishes to be dried perfectly even at low

rinse temperatures, with significant energy savings. It

starts automatically if the selected program is

compatible with it. If it is not required, press the

button to disable it.

3 EXTRA DRY Modifies some of the parameters to ensure improved

drying.

4 ½ LOAD

FLEXY ZONE

Ideal if just a few dishes need to be washed, allowing

energy savings and a shorter wash cycle.

5 DELAY

Allows the wash cycles 1 or 3 to be delayed by up to

9, 12 or 24 hours depending on the models.

6 SELF CLEAN

Dishwasher cleaning cycle. Must be started with the

machine empty, without dishes.

SPECIAL (if present)

Allows you to enable additional programs when selected together with any

wash cycle. After having selected the required wash cycle, press the

button (the light turns on). It turns off automatically when the cycle has

finished.

½ LOAD FLEXI ZONE (if present)

Ideal if just a few dishes need to be washed, allowing energy savings. The

dishes should be placed in both baskets and less detergent should be

placed in the detergent dispenser compared to the amount used for a full

load.

EXTRA DRY (if present)

The option modifies the parameters to ensure improved drying.

Suitable for loads that contain dishes that are difficult to dry such as pots,

non-stick pans and plastic containers.

User instructions

AUTOMATIC DOOR OPENING – DRY ASSIST

(always included in the ECO program)

(it may be included in other programs, please refer to the manual

supplied with the product).

The program ends with a drying cycle that consists of a time during which

the door is closed, and a time during which the door is slightly open (just

waiting, to assist drying). The duration depends on the program and

model.

Any intervention (opening / closing the door, switching off etc.) during this

stage will end the program early.

The program can be interrupted during the drying cycle and the

dishwasher can unloaded before the cycle has completely ended, which

is indicated by a visual and/or audible alarm (depending on the model),

but best drying results may not be obtained.

The complete program ends only when indicated by a visual and/or

audible signal (depending on the model).

There must be sufficient space available for the door to open. The

door must not be forced open and closed before the wash cycle has

ended completely.

Note: some models are equipped with the dry assist function by default

on one or more cycles (check the manual supplied with the product).

These models are not fitted with a button to control this function. The door

opens automatically at the end of the wash cycle(s).

DELAY (if present)

Press the button to set the dishwasher cycle to start during the DELAY

required time period (e.g. night). According to the model, this may be

indicated on the display or by specific lights. The option cannot be

selected once the cycle is running. To cancel the setting, press the

button several times until the lights switch off or until the number on the

display is reset. After the door has been closed, the dishwasher will carry

out a pre-wash cycle, after which the set “cycle delay” option will be

activated.

SELF CLEAN (if present)

Dishwasher cleaning cycle. The cycle should be started with the machine

empty, without dishes. It is recommended to run the program every 2-3

months, using special dishwasher detergents. The light flashes during

operation. At the end of the cycle it remains on and cycle lights 4 and 5

flash.

The display (if available) shows “End”.

User instructions

TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT

 If the manufacturer's instructions and recommendations are

followed, washing the same number of similarly soiled dishes in a

dishwasher consumes less water and energy than if they were

washed by hand.

 Always use the dishwasher . with a full load

 Load the dishwasher as indicated in the instructions manual. If the

dishwasher is loaded incorrectly, it may lead to poor results as well

as waste water, energy and detergent.

 Do not wash dishes under running water before placing them in the

dishwasher. It would just waste water and energy.

 Use the washing program that is for each type of most appropriate

load.

 If available, connect the dishwasher to a hot water supply up to 60°C.

 If the manufacturer's instructions and recommendations are followed,

washing the same number of similarly soiled dishes in a dishwasher

consumes less water and energy than if they were washed by hand.

TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT

THE ENVIRONMENT

The phosphates contained in dishwasher detergents are harmful to the

environment. To avoid using excessive amounts of detergent and to save

on electricity, observe the following:

 separate the more delicate items from dishes that are more

resistant to aggressive detergents and high temperatures;

 do not pour detergent directly onto the dishes.

User instructions

If the door has to be opened while washing is in progress, the program will

be interrupted. The relative light will keep flashing and a beeper will signal

that the cycle has not been completed. You must wait about 1 minute

before closing the door to restart the program. When the door is closed

the program will continue from where it was interrupted. This operation

should only be carried out , because it might cause if strictly necessary

problems in execution of the program.

ENERGY MANAGEMENT

After (washing cycle completed, stopped or set but 5 minutes of waiting

not started) the dishwasher switches off.

REMOVING THE DISHES

At the end of the washing program, wait at least before 20 minutes

removing the dishes, to allow them to cool. To ensure that any drops of

water left in the top basket cannot drip onto the dishes still in the bottom

basket, you are advised always to

empty the bottom basket first

User instructions

4 Operating instructions

After having installed the dishwasher, remove the basket retainers and

prepare the machine for use as follows:

 Regulate the water softening system;

 Add regenerating salt;

 Add rinse aid and detergent.

4.1 Setting the water hardness

 The dishwasher must be and the door closed. switched on

 Press and hold the button until appears on the cycle delay “h”

display followed by the current setting (e.g. ). h3

 Press the cycle delay button once or several times to select the

required hardness . (from h0 to h5)

After carrying out the adjustment or displaying the current setting, if you

do not touch the button for a few seconds the dishwasher will

automatically exit from adjustment mode and return to the standard

operating mode.

WATER HARDNESS TABLE

WATER HARDNESS

SETTING

German degrees (°dH) French degrees (°dF)

h.-0 NO SALT

h.-1

h.-2

h.-3

h.-4

h.-5

Contact your local water board for information on the hardness of your

water supply. Default settings:

21°dH

–

37°dF

User instructions

4.2 Adding the salt

The amount of scale contained in the water

(water hardness index) can cause whitish

staining on the dry dishes, which tend to

become dull over time. The dishwasher is

equipped with an automatic softening

system which uses a special regenerating

salt to reduce the hardness of the water.

When using water of medium hardness, the regenerating salt container

should be refilled after approximately . The salt 20 washing cycles

container can hold approximately of salt in grains. Some models are 1 kg

equipped with an optical no-salt indicator. In these models, the cap of the

salt container contains a green float which descends as the salt

concentration in the water drops. When the green float can no longer be

seen through the transparent cap, the container must be topped up with

regenerating salt. The container is situated at the bottom of the

dishwasher.

The salt prevents the formation of scale

deposits.

 Remove the lower basket.

 Unscrew the cap of the salt container by

turning it anticlockwise.

 When using the dishwasher for the first time, fill the container with a

litre of water.

 Pour salt (approx. 1 kg) into the container using the funnel provided

with the dishwasher.

 When finished, remove any salt residues before screwing the cap

back on.

SALT

User instructions

In order for the water softening system to give fault-free service, the appliance

performs a regeneration cycle of the system at regular intervals.

The regeneration process consists of several stages. It starts at the end of the last

rinse cycle, after the amount of water indicated in the mains water hardness setting

has been reached during the wash cycle, and finishes at the beginning of the

following wash cycle.

The regeneration process increases the cycle time and consumption of water and

electricity.

Below is an overview of consumption of regeneration the softening system using the

Eco program with a water hardness setting of H2.

Water

consumption

according to

model

[refer to the

programs

table]

(litres)

Regeneration

frequency

(number of

cycles)

Water

consumption

during

regeneration

(litres)

Energy

consumption

during

regeneration

(Wh)

Duration of the

regeneration

process

(min)

the

end

the

last

rinse

At the

beginning

of the

following

wash

cycle

the

end

the

last

rinse

At the

beginning

of the

following

wash

cycle

the

end

the

last

rinse

At the

beginning

of the

following

wash

cycle

7 8

0.2

(10x0.4

litres)

0.3 1.2 6 4

 Each time the salt container is refilled, make sure that the cap is

securely closed. The mixture of water and detergent must never

penetrate the salt container, as this would compromise the operation

of the regeneration system. In this case warranty cover will be

forfeited.

 Only use regeneration salt specifically for domestic

dishwashers. Do not use table salt, since it contains insoluble

substances that could damage the water softener system.

 After having added salt, run a wash cycle to remove any excess salt.

In this way, the excess saline solution will be immediately removed

by the water; the prolonged presence of salt water inside the tank may

lead to . corrosion

Be careful not to confuse the salt and detergent packages; adding

detergent to the salt container will the water softening system. damage

User instructions

4.3 Adding the rinse aid

The detergent and rinse aid

dispensers are situated on the inner

part of the door: the detergent

dispenser is on the left, and the rinse

aid dispenser is on the right.

The rinse aid helps the dishes dry faster and prevents the formation of

scale deposits and staining; it is automatically added to the water during

the final rinse cycle, from the container situated on the inner side of the

door.

To add rinse aid:

 Open the dispenser by pressing and lifting the tab on the cover.

 Top up again when the rinse aid indicator light turns on.

 Close the cover, a click indicates when it is closed.

 Use a cloth to remove any spillage of rinse aid which might lead to

the formation of excess foam.

User instructions

4.4 Adding the detergent

 Open the detergent dispenser cover by lightly pressing the button . P

 Add the detergent or tablet.

 Close the cover by sliding it until it stops, indicated by a click.

The dispenser will open automatically during the wash cycle.

Only add the detergent or tablet if the dispenser is dry.

With the exception of the SOAK program, before every washing cycle it is

necessary to add the required amount of detergent to the detergent

dispenser. The rinse aid, on the other hand, should only be added as

required.

User instructions

LOADING THE LOWER BASKET

Carefully load flat plates, soup plates, dessert and serving dishes,

positioning them vertically. Pots, pans and their covers must be loaded

upside down. When loading soup plates and dessert bowls, be sure to

leave a gap between them.

Loading examples:

UPPER BASKET

The upper basket should be loaded with small or medium-sized items

such as glasses, small plates and saucers, tea or coffee cups, shallow

bowls and light objects. If the upper basket is used in the lowermost

position, it can also be loaded with serving dishes, provided they are only

lightly soiled.

LOADING THE UPPER BASKET

Load plates facing forward; cups, bowls etc. must always be facing

downwards. The left side of the basket can be loaded with cups and

glasses on two levels. In the centre section, plates and saucers can be

loaded vertically into the supports provided.

Loading examples:

User instructions

CUTLERY BASKET (on some models only)

The basket is suitable for all types of cutlery, except long items that may

interfere with the upper spray arm. The cutlery should be arranged in the

spaces in the upper racks to allow the water to pass effectively between

the items.

Forks and spoons should be positioned with the handle facing

downwards, taking care not to injure yourself with the prongs of the forks.

Knives should be placed in the tray on the upper rack or in the cutlery

drawer, if present (depending on the model), otherwise position them with

the . handles facing upwards

Ladles, wooden spoons and kitchen knives can be placed on the upper

rack, making sure that the blades of the knives do not protrude from

the basket. The upper racks can be opened in order to insert, for example,

small items.

The cutlery basket slides across the dishwasher and can be placed in

any position

to allow optimal use of the space in the bottom basket.

User instructions

TOP CUTLERY BASKET (on some models only)

The basket is designed to take cutlery, placed in the spaces provided, and

long utensils, positioned lengthwise.

The “drawer” extraction system makes the basket easier to load, but it can

also be taken completely off its runners by removing the retainers (as

shown here).

Take great care to replace the retainers to ensure that the basket does

not come off the runners accidentally.

User instructions

FLEXIDUO TOP CUTLERY BASKET (on some models only)

This comprises sliding, pull-out tray racks for easier two independent

loading/unloading of cutlery. Various loading systems and configurations

are possible. For example, can be loaded with thetea cups right-hand

rack set in the while the left-hand rack or both can be low position,

removed to allow l

arge dishes

to be put in the

top basket.

User instructions

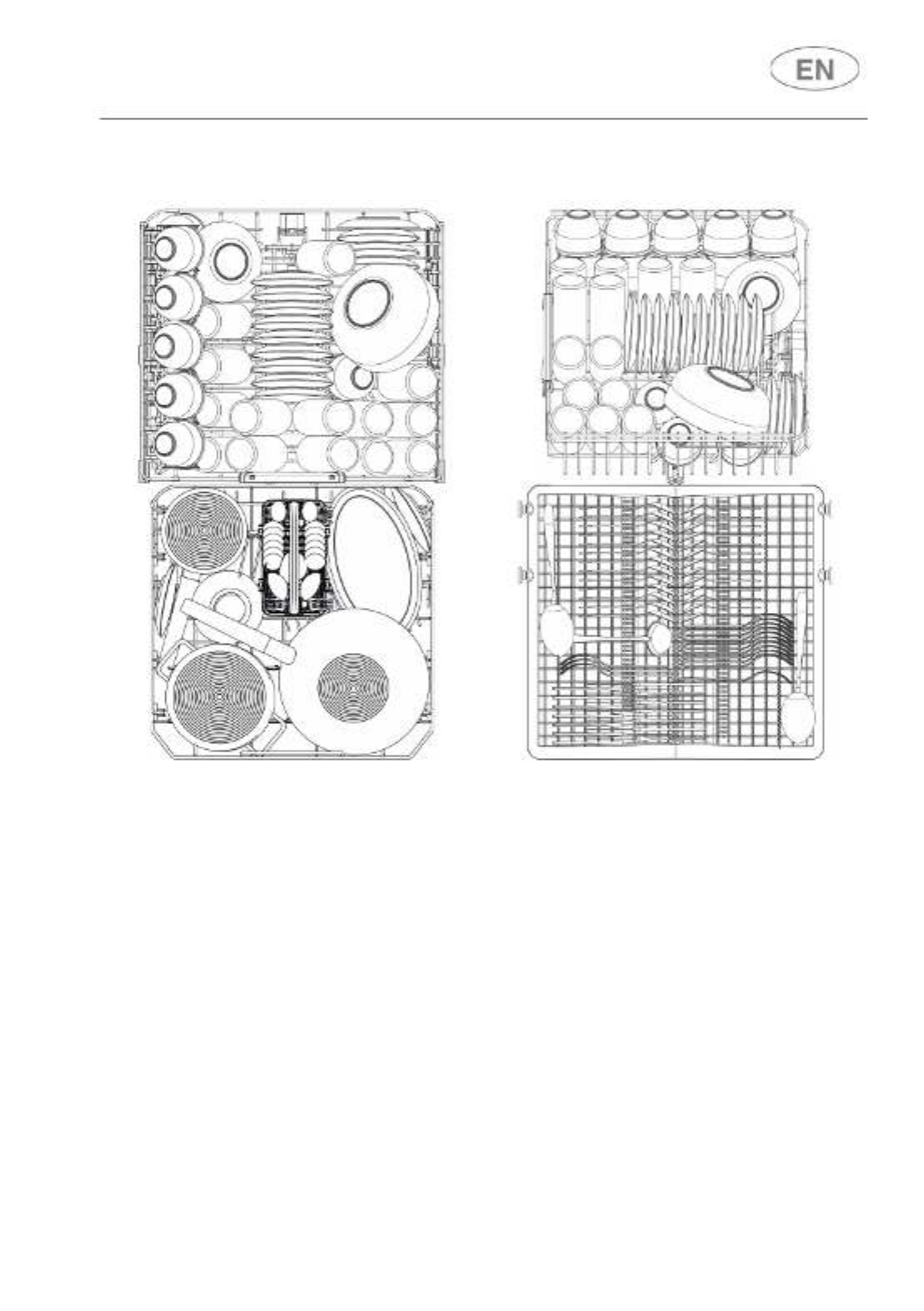

EXAMPLES OF LOADING FOR INTENSIVE DIRT

12 standard place setting

If the bottom basket inserts are of the fold-down type,

they should be laid flat for easier

13 standard place setting

If the bottom basket inserts are of the fold-down type,

they should be laid flat for easier loading.

User instructions

13 standard place setting

TOP CUTLERY BASKET (on some models only)

If the bottom basket inserts are of the fold-down type,

they should be laid flat for easier loading.

Tuotetiedot

Merkki:	Smeg
Kategoria:	Astianpesukone
Malli:	DF344AX

Tarvitsetko apua?

Jos tarvitset apua merkille Smeg DF344AX esitä kysymys alla ja muut käyttäjät vastaavat sinulle

Nimesi*

Sähköpostisi*

Kirjoita kysymyksesi tähän

Astianpesukone Smeg Käyttöohjeet

Smeg STU1822 Käyttöohje

5 Helmikuuta 2025

Smeg DF344AX Käyttöohje

31 Tammikuuta 2025

Smeg DI362DQ Käyttöohje

22 Tammikuuta 2025

Smeg DWAU6224N4 Käyttöohje

9 Tammikuuta 2025

Smeg DWAU6224X4 Käyttöohje

9 Tammikuuta 2025

Smeg STL825A-2 Käyttöohje

22 Joulukuuta 2024

Smeg STL66337L Käyttöohje

22 Joulukuuta 2024

Smeg STA4513 Käyttöohje

22 Joulukuuta 2024

Smeg STA7233L Käyttöohje

22 Joulukuuta 2024

Smeg ST3339L Käyttöohje

22 Joulukuuta 2024

Astianpesukone Käyttöohjeet

Viimeisimmät Astianpesukone Käyttöohjeet

Oranier GAVI 7592 XL Käyttöohje

9 Huhtikuuta 2025

Amica DIM44D6EBq Käyttöohje

9 Huhtikuuta 2025

Sharp QW-I1GI47EX Käyttöohje

9 Huhtikuuta 2025

AEG FSK73747P Käyttöohje

8 Huhtikuuta 2025

Miele G 5432 SCU Käyttöohje

8 Huhtikuuta 2025

Miele G 5495 SCVi XXL Active Plus Käyttöohje

8 Huhtikuuta 2025

Asko DFI545N Käyttöohje

7 Huhtikuuta 2025

Asko DFI545V Käyttöohje

7 Huhtikuuta 2025

Asko DFI534A Käyttöohje

7 Huhtikuuta 2025

Asko DFI544BXXL Käyttöohje

7 Huhtikuuta 2025
