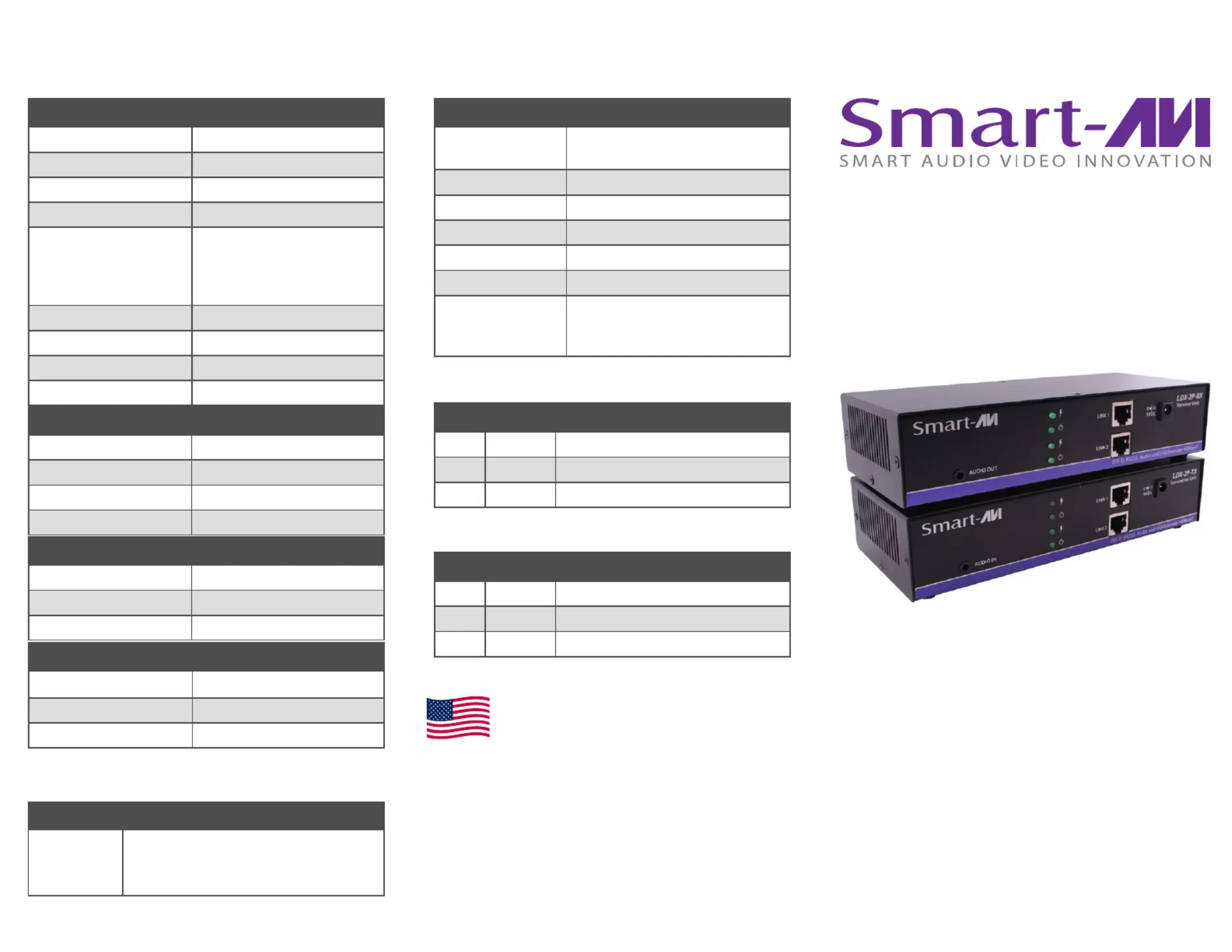

USER MANUAL

LDX-2P

Dual Head DVI-D, USB Keyboard, Mouse

and Audio Extender Over Cat5e/6

TECHNICAL SPECIFICATIONS

800.AVI.2131

Tel: (818) 503-6200 Fax: (818) 503-6208

11651 Vanowen St. North Hollywood, CA 91605

SmartAVI.com

Designed and Manufactured in the USA

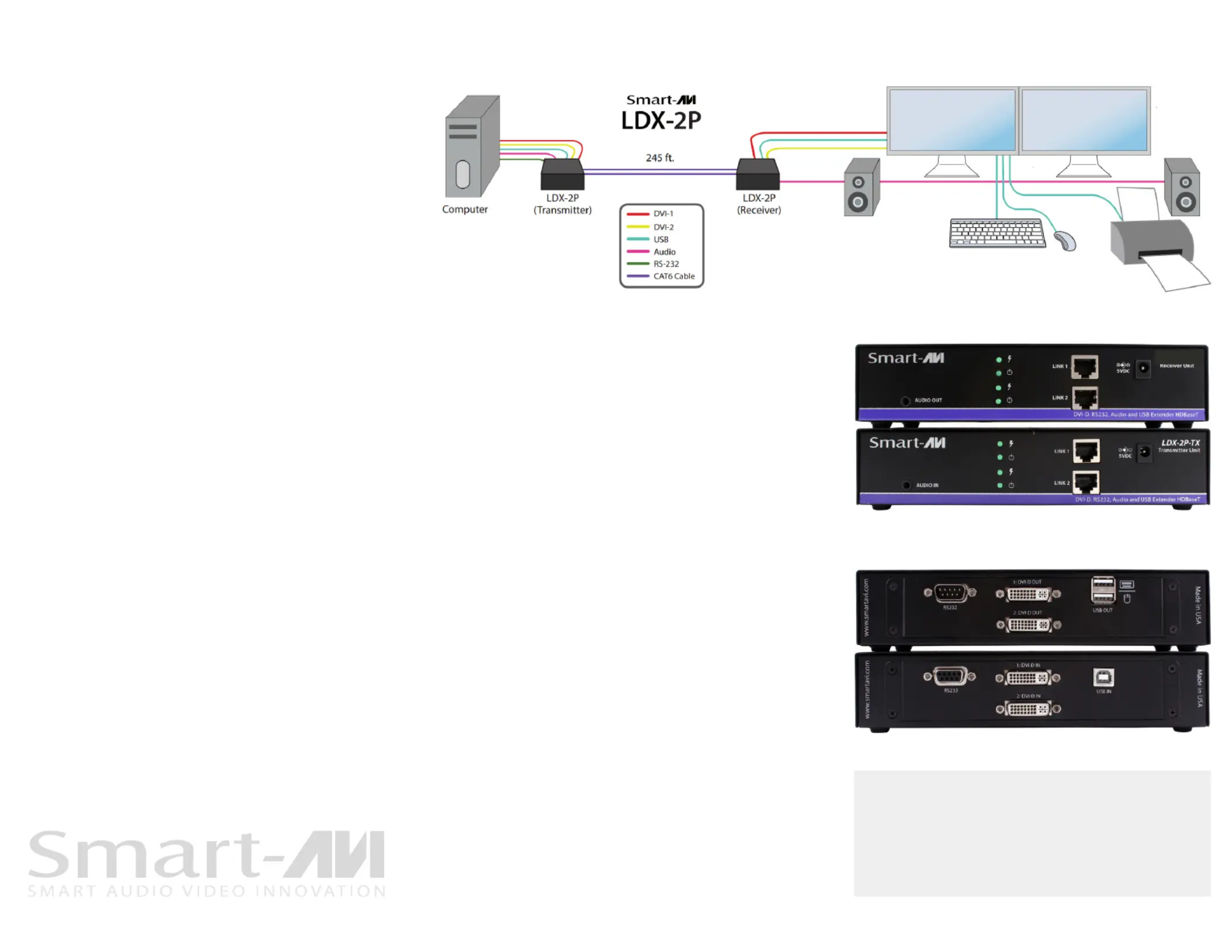

EXTEND DUAL DVI-D, DUAL RS232, USB KEY-

BOARD, MOUSE AND AUDIO UP TO 245 FEET OVER

DUAL CAT5/5E/6 CABLE

VIDEO

Format (2) DVI-D Single Link

Maximum Pixel Clock 165 MHz

Input Interface (TX) (2) DVI-D 29-pin (Female)

Output Interface (RX) (2) DVI-D 29-pin (Female)

Resolution Up to 1920 x 1200 @ 60Hz

and

Up to 4K/2K (3840x2160)

@ 30Hz

DDC 5 volts p-p(TTL)

Input Equalization Automatic

Input Cable Length Up to 20 ft.

Output Cable Length Up to 20 ft.

RS232

Input Interface DB9 (Female)

Output Interface DB9 (Male)

Control @ 115 Kbps

OTHER

Power External 100-240 VAC/5VDC3A

@15W

Dimensions 5.125 in W x 1 in H x 3.625 in D

Weight 1 lb.

Operating Temp. 0-55 °C (32-131°F)

Storage Temp. -20-85 °C (-4-185 °F)

Humidity Up to 95%

Max Resolution

Video Extension

Distance

245 ft. w/ CAT6 STP

USB

Signal Type USB 1.1

Input Interface (TX) (1) USB Type B (Female)

Output Interface (RX) (2) USB Type A (Female)

Signal Type Stereo Audio

Bandwidth 15MHz, 0dB

Impedance 100 Ohm

Connector 3.5 mini jack, Female

AUDIO

PIN Name

2

TxD

3

RxD

5

GND

Description

Transmit Data on DB9 Female

Receive Data on DB9 Female

Ground

PIN Name

2

RxD

3

TxD

5

GND

Description

Receive Data on DB9 Female

Transmit Data on DB9 Female

Ground

RECEIVE ON DB9 FEMALE

TRANSMIT ON DB9 FEMALE

WHAT’S IN THE BOX?

PART NO. DESCRIPTION

LDX-2PS Dual DVI-D, USB, Dual RS-232, and

Audio Extender. Includes: [LDX-2P-TX,

LDX-2P-RX, 2x (PS5VDC3A)]
