Dual DVI-D and USB 1.1 Extender up

to 275 feet over STP Cable

DVX2U

Dual DVI-D and USB 1.1 Extender

over STP

www.smartavi.com

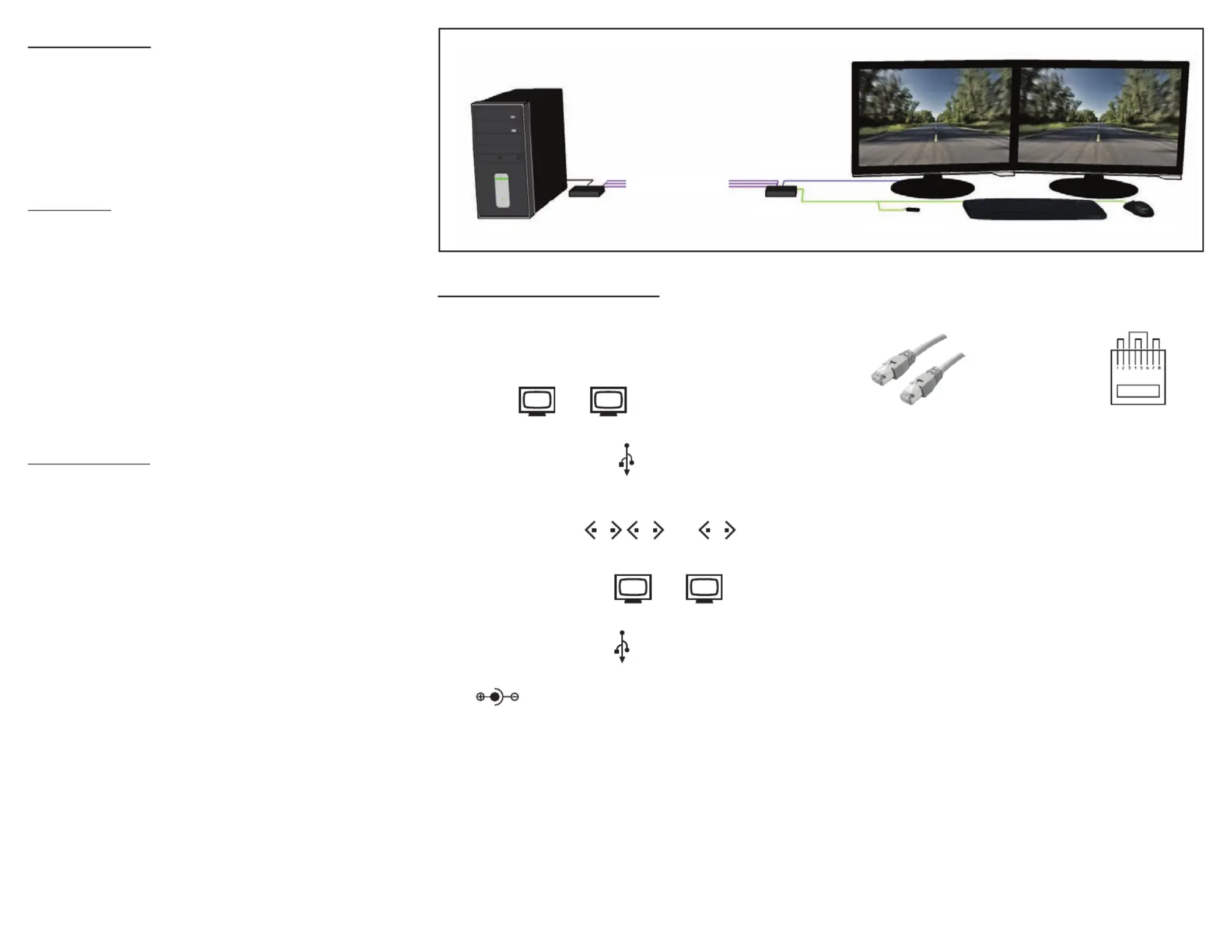

Installation

Manual

Technical Specications

What’s in the Box?

PART NO.QTYDESCRIPTION

DVX2US12 DVI-D and USB over CAT6 STP Extender.

Includes: [DVX2U-TX, DVX2U-RX and 2 x (PS-

5VD4A)]

Power Supply1PS5VDC4A

User Manual1

VIDEO

FormatDVI-D Single Line

Maximum Pixel Clock165 MHz

Input Interface (TX)(2) DVI-D 29-pin female

Output Interface (RX)(2) DVI-D 29-pin female

ResolutionUp to 1920 x 1200 @60Hz

DDC5 volts p-p(TTL)

Input EqualizationAutomatic

Input Cable LengthUp to 20 ft.

Output Cable LengthUp to 20 ft.

USB

Signal TypeUSB 1.1 (Fully Transparent)

Input Interface (TX)(1) USB Type B (Female)

Output Interface (RX)(4) USB Type A (Female)

OTHER

PowerExternal 100-240 VAC/5VDC4A @20W

Dimensions8.25 in W x 1 in H x 3.5 in D

Weight1 lb

Operating Temp.0-55 °C (32-131°F)

Storage Temp.-20-85 °C (-4-185 °F)

HumidityUp to 95%
