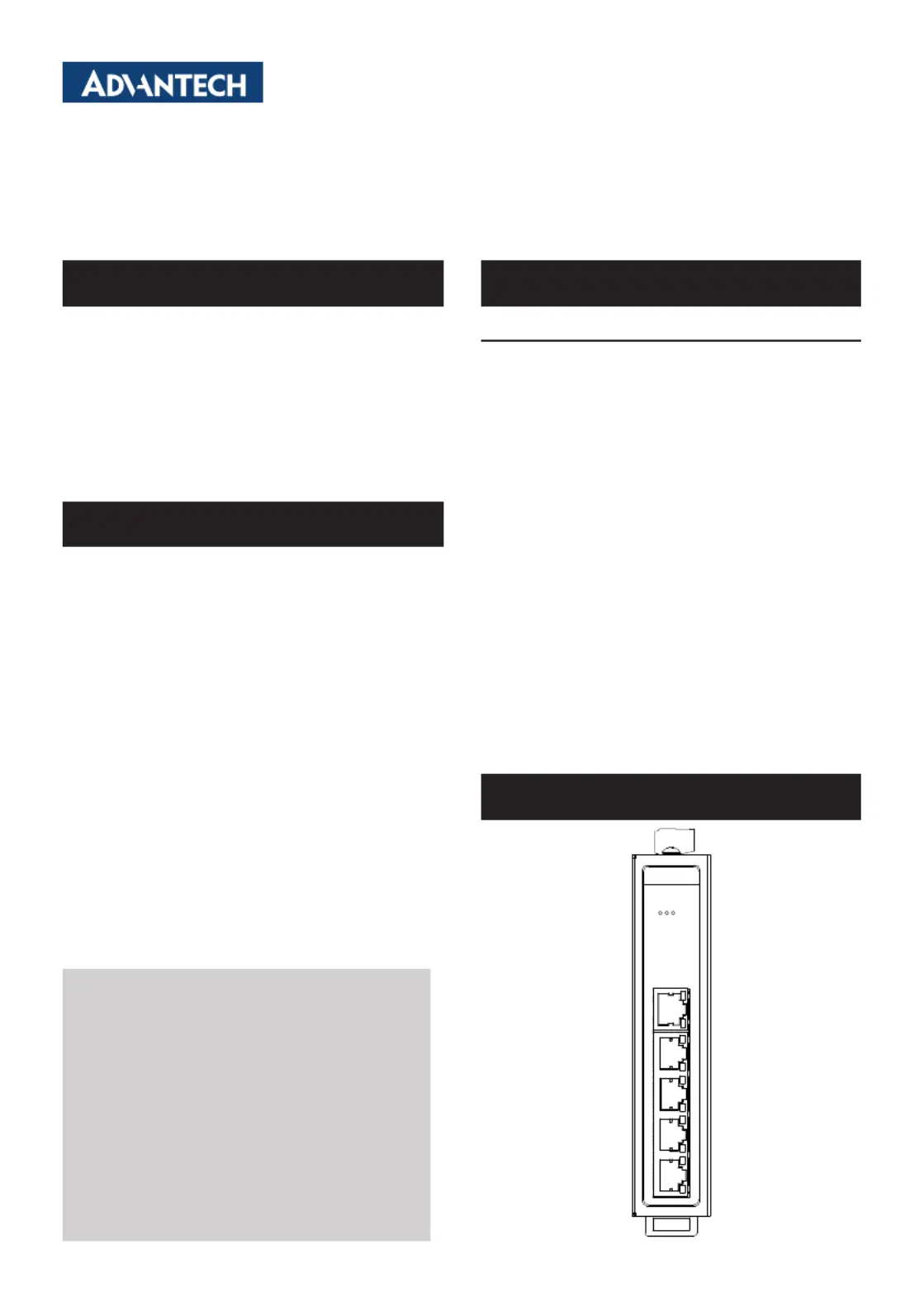

EKI-2725/I Startup Manual 1

Before installation, please make sure that you have re-

ceived the following:

•1 x EKI-2725/I Industrial Ethernet Switch

•2 x Wall Mounting Bracket and 8 x Screws M3x5L

•1 x DIN-rail Bracket and 4 x Screws M3x5L

•1 x EKI-2725/I Startup Manual

If anything is missing or damaged, contact your distributor

or sales representative immediately.

The EKI-2725 comes equipped with all the standard

unmanaged switch features of the EKI family. Furthermore,

ito󰀨ersa+12~48V

DC

redundant power input design, and

is secured with a double protection mechanism; Power

polarity Reverse Protect and an Overload Current Fuse;

The former is using for protection against accidental reverse

polarity and the latter is using for protection against exces-

sive currents or current beyond the acceptable current

rating of EKI- 2725. Each port of EKI-2725 has 2 LED’s

to show the link status transmission speed and collision

status. It also provides a relay output for an event alarm. In

the event of a power failure, the built-in LED will activate the

alarm to notify administrators. Engineers can simply verify

the hardware status by checking the LED, which makes

troubleshooting quick and easy.

EKI-2725/I-CE

Industrial Unmanaged Gigabit Ethernet Switch

Startup Manual

General

•Compatibility: IEEE 802.3, 802.3u, 802.3x, 802.3ab

•LAN: 4 x 10/100/1000Base-T(X)

•TransmissionDistance:Ethernet: Up to 100 m

•TransmissionSpeed:Up to 1000Mbps

•Connectors:5 x 10/100/1000Base-T/TX RJ-45 ports

•LEDIndicators:P1, P2, P-Fail

10/100/1000T (X): Link/Activity, Duplex/Collision

•SwitchArchitecture:Store and Forward

•PowerRequirement:12~48V

DC

, redundant dual power

inputs with reverse polarity protection

•PowerConsumption:2.5 Watts

•Dimensions(WxHxD):30 x 140 x 95 mm

•OperatingTemperature:

-EKI-2725:-10~60°C(14~140°F)

-EKI-2725I:-40~75°C(-40~167°F)

•StorageTemperature:-40~85°C(-40°F~185°F)

•OperatingHumidity:10~95%(non-condensing)

•StorageHumidity:10~95%(non-condensing)

•Safety:UL62368

•EMC:CE, FCC

•Warranty:5 years

EKI-2725

P1

P2

P-Fail

5

4

3

2

1

SpecicationsPackingList

For more information about this or other Advantech

products, visit the Advantech website at

http://www.advantech.com

For technical support and customer service, visit the

Advantech support website at

http://support.advantech.com.tw

This manual is for EKI-2725/I.

Part No. 2002272522 Edition 3

November 2024

Introduction

Overview
