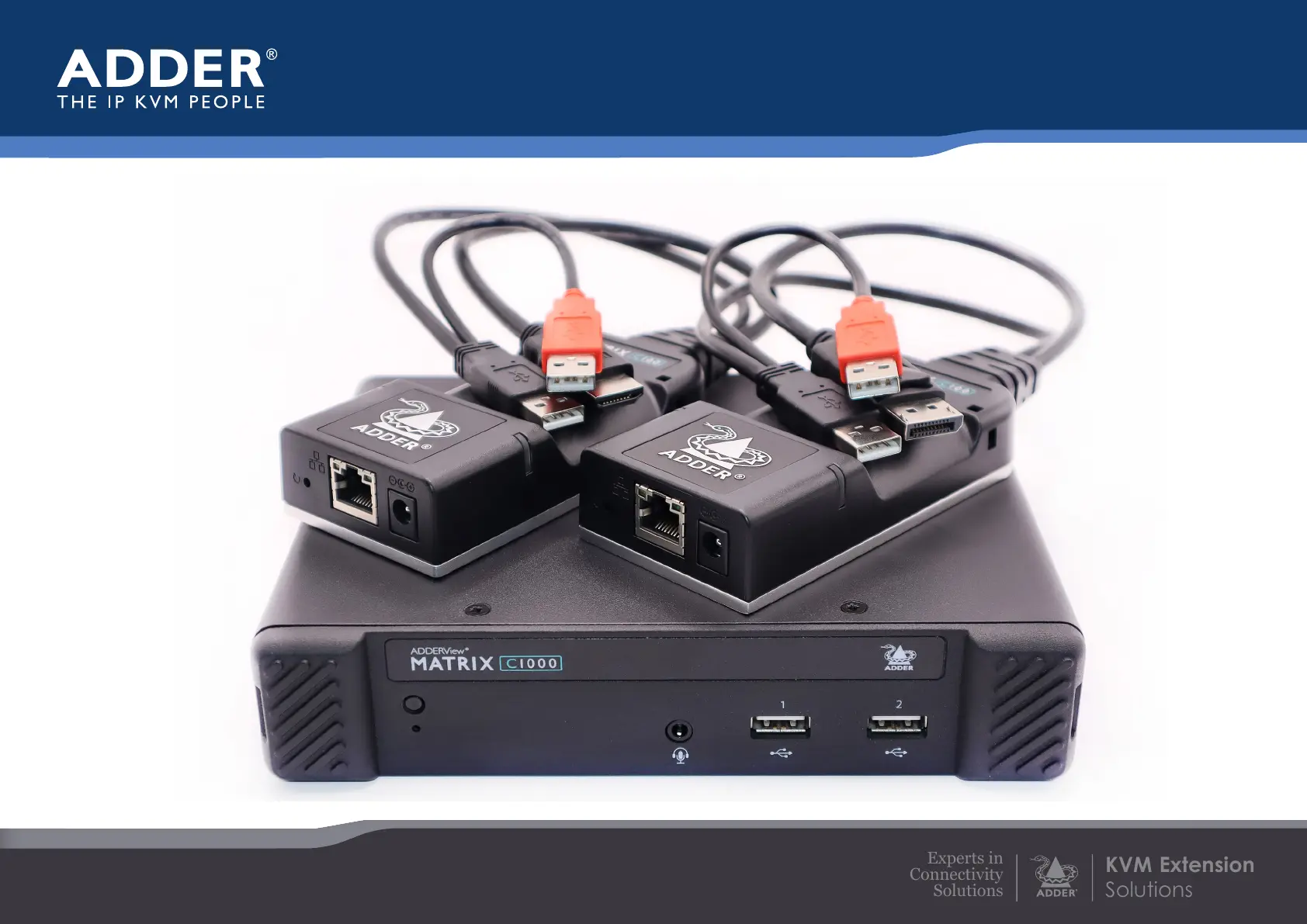

ADDERView
®
Matrix
User Guide
Experts in
Connectivity
Solutions
KVM Extension
Solutions
INSTALLATION
1
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
Introduction
Welcome ................................................................................................................ 2
CAM and USR features .......................................................................................3
Technical Specications .......................................................................................4
Supplied items ....................................................................................................... 5
Optional extras .....................................................................................................6
Installation
CAM (Computer Access Module) connections ............................................ 7
CAM video link ...............................................................................................7
CAM link connection ....................................................................................7
CAM USB and power connections ............................................................8
USR (User) connections .....................................................................................9
USR video display ...........................................................................................9
USR USB devices ............................................................................................ 9
USR link connection ....................................................................................10
USR audio devices ........................................................................................11
USR power in ................................................................................................12
Conguration
Direct linking .......................................................................................................13
One to one ....................................................................................................13
Two to one ....................................................................................................13
Creating a matrix ...............................................................................................14
Conguration via the On Screen Display .....................................................15
Creating and editing presets ............................................................................16
Conguration via web pages ............................................................................17
CAM - Performing a manual factory reset ...................................................18
CAM - Placing the device into recovery mode ...........................................18
USR - Performing a manual factory reset .....................................................19
USR - Placing the device into recovery mode .............................................19
Operation
CAM status indicators ......................................................................................20
USR status indicators ........................................................................................20
Port status popups .............................................................................................21
Further information
Getting assistance ..............................................................................................22
Appendix A - Conguration pages .................................................................23
Appendix B - Support for analog and digital audio.....................................43
Appendix C - Fiber/copper modules and cables .........................................44
Appendix D - Open source licenses .............................................................. 45
Index
Contents
INSTALLATION
2
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
USR
CAM
CAM
USR
Introduction
WELCOME
Thank you for choosing ADDERView Matrix, which is perfect for organizations where
ease of use and low maintenance are paramount. Typically used in an unmanaged
conguration without a KVM management switch, these systems are designed for quick
installation, reliable operation and managed with minimal technical knowledge required.
ADDERView Matrix is the perfect solution for any organization looking for a simple and
powerful IP KVM matrix.
Flexible and Scalable
Each ADDERView Matrix USR is the master controller of its own matrix and can have
up to 16 sources programmed into its target list. A Computer Access Module (CAM) can
connect to multiple user stations.
Safety
Please refer to the safety booklet provided in the box before use of this product.
USR
USR
USR
Gigabit
Ethernet
CAM
CAM
CAM
CAM
CAM
CAM
USR
USR
USR
Linking
ADDERView Matrix units can be linked in two main ways: Direct or Matrix.
Direct linking
Where CAMs and USRs are directly linked to each other, very little conguration action
is required, provided that they both have their factory default settings in place* - just link
them together (see also page 13):
Matrix linking
Multiple CAMs and USRs can be connected via a suitable 1GbE network switch to allow
cross connections across a matrix (see page 13):
USR
CAM
CAM
CAM
CAM
USR
USR
USR
CAM
CAM
1GbE switch such as
AVM-C12 or AVM-C30
CAM
CAM
USR
USR
* If the standard settings have been changed in a previous installation, you merely need to
perform a manual factory reset on each unit: CAM see page 18; USR see page 19.
It is also possible to link two CAMs directly to a single USR (see page 13). Note: an
additional SFP network module needs to be installed within the USR:
