Sivu 1/10

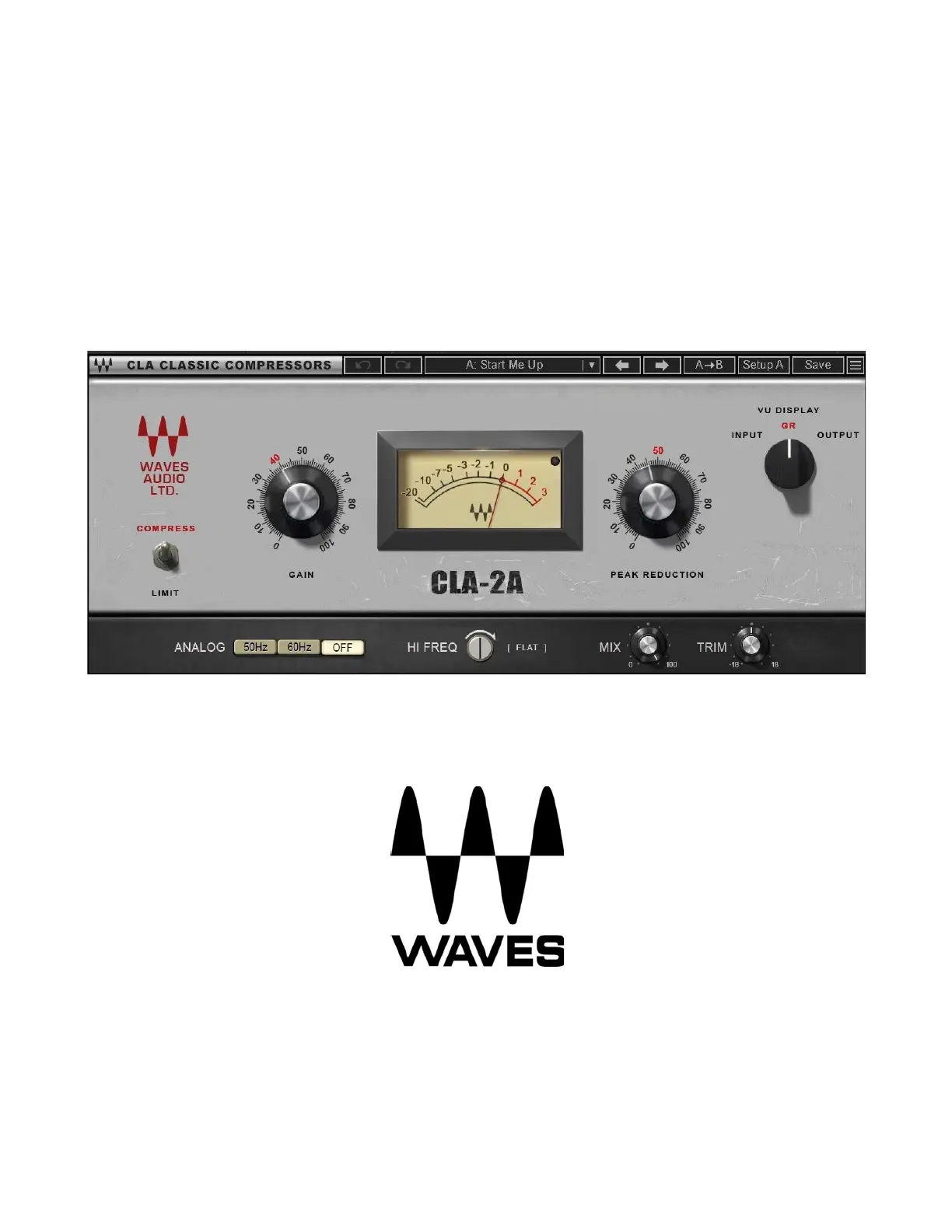

WAVES
CLA-2A
User Guide
Waves CLA-2A User Guide
2
TABLE OF CONTENTS
Chapter 1 – Introduction ....................................................................................................... 3
1.1
Welcome ....................................................................................................................................... 3
1.2
Product Overview ......................................................................................................................... 3
1.3
About the Modeling ....................................................................................................................... 4
•
Total Harmonic Distortion ............................................................................................................................ 4
•
Variable Release Times .............................................................................................................................. 4
•
Hum ............................................................................................................................................................. 4
•
T4 ................................................................................................................................................................ 5
1.4
Components ................................................................................................................................. 5
Chapter 2 – Quickstart Guide ................................................................................................ 6
Chapter 3 – Interface and Controls ...................................................................................... 7
3.1
CLA-2A Interface .......................................................................................................................... 7
3.2
CLA-2A Controls ........................................................................................................................... 8
3.3 The WaveSystem Toolbar ......................................................................................................... 10
Appendix: CLA-2A Controls ................................................................................................ 10
Waves CLA-2A User Guide
3
Chapter 1 – Introduction
1.1
Welcome
Thank you for choosing Waves! In order to get the most out of your new Waves plugin, please take
a moment to read this user guide.
To install software and manage your licenses, you need to have a free Waves account. Sign up at
www.waves.com. With a Waves account you can keep track of your products, renew your Waves
Update Plan, participate in bonus programs, and keep up to date with other important information.
We suggest that you become familiar with the Waves Support pages: www.waves.com/support.
There are technical articles about installation, troubleshooting, specifications, and more. Plus, you’ll
find company contact information and Waves Support news.
1.2
Product Overview
About the CLA-2A
The CLA-2A is modeled on a hand-wired, tube-based compressor originally produced by Teletronix in
the early 1960s. Initially intended for use in broadcast, the original used an electro-luminescent
optical attenuator called “T4” for gain reduction. Unlike many other designs, electro-luminescent
circuitry doesn't add distortion when it modulates the sound. (Tubes, however, do, and we made sure to
model that distortion.) Additionally, the inspiration for the CLA-2A’s frequency-dependent attack and
response speed made it an instant favorite of audio engineers. However, many consider its most
unique feature to be its program dependent, multi-stage release, which was achieved using a 2-stage
photo-electric cell. With a Frequency Response of 30Hz to 15kHz (+/- 1dB) and < 0.5% THD, the
original provided up to 40dB of gain limiting.
About Chris Lord-Alge
Grammy®-winner Chris Lord-Alge is the mixing engineer of choice for pop and rock royalty.
Green Day | U2 | Dave Matthews Band | Daughtry | Pink | Leona Lewis | Avril Lavigne |
My Chemical Romance | All American Rejects | Nickelback | Rob Thomas | Snow Patrol |
Ray LaMontagne | Miley Cyrus | Jonas Bros. | Tim McGraw | Faith Hill | Tina Turner | Rod Stewart |
Celine Dion | Santana | Steve Winwood | James Brown
For almost thirty years, Chris has energized the sound of popular music. His hard-hitting mixes have
transformed the radio soundscape, and introduced a new sonic vocabulary along the way. CLA’s
massive hardware arsenal includes racks and racks of the most coveted compression units in music
history.
