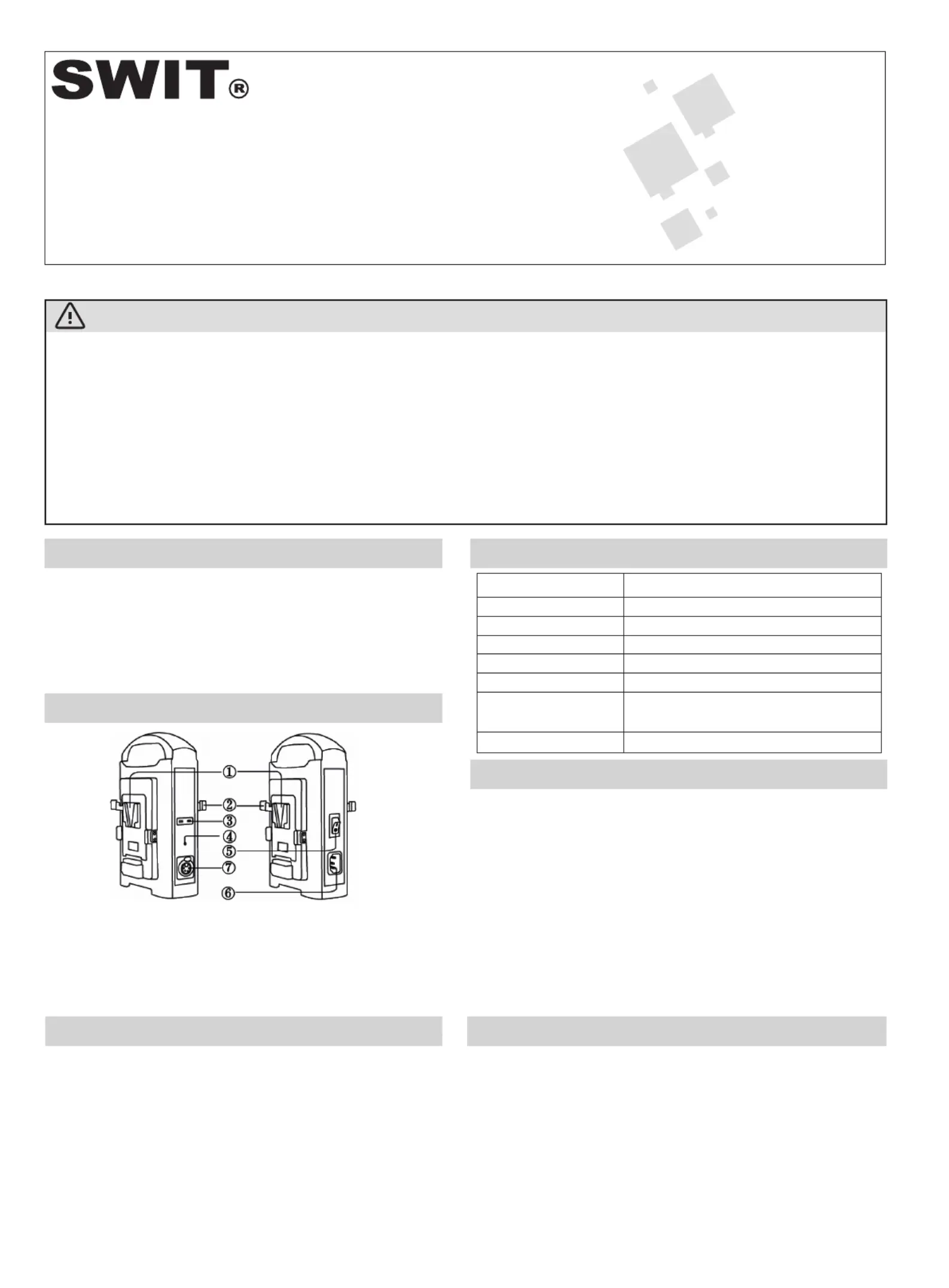

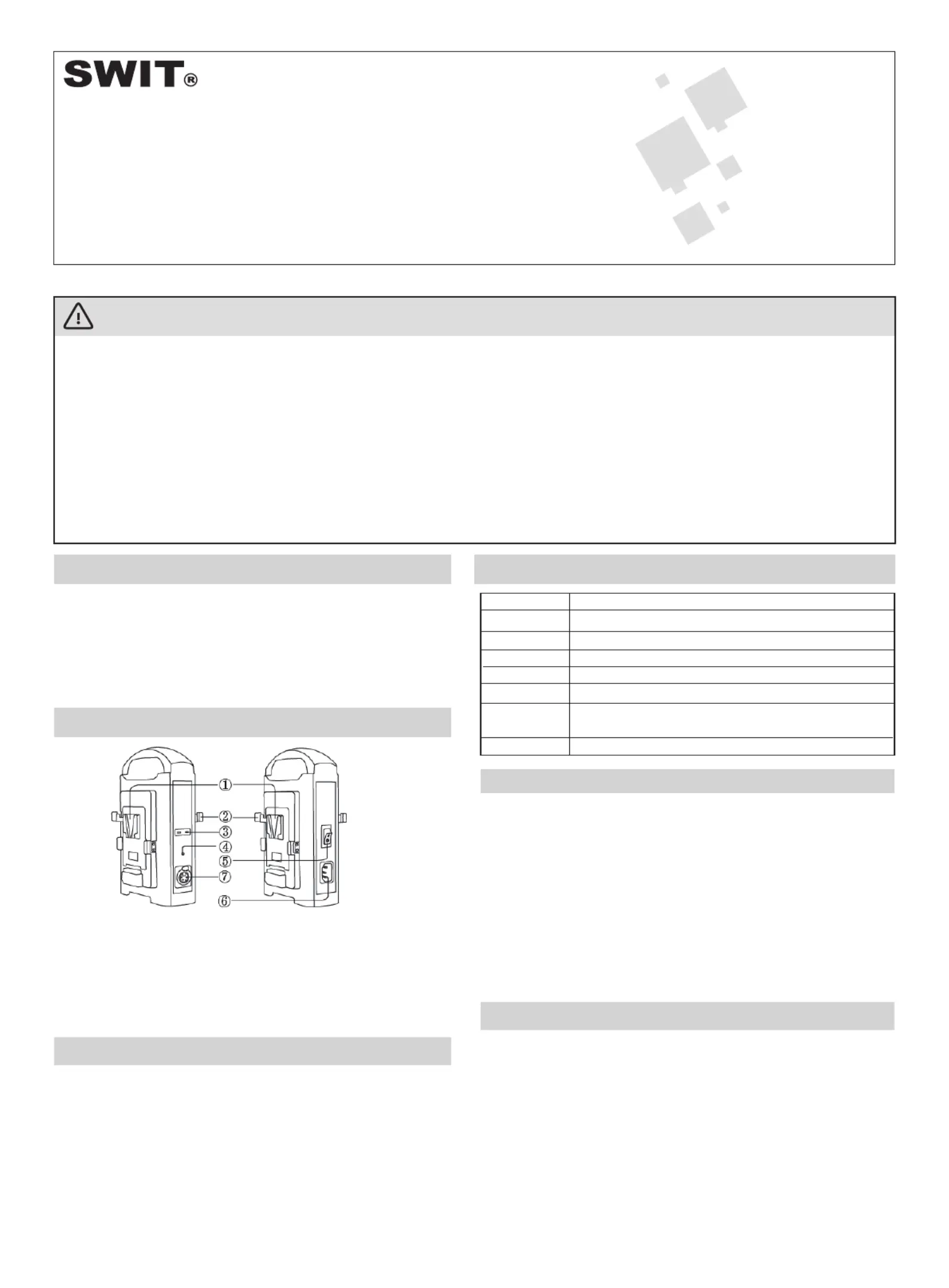

Features
Product appearance
Charging Adapting output
Specifications
Compatible Batteries
Lithium Battery Charger
S-3822A/S
Ver:B
Tel:+86-25-85805753
Fax:+86-25-85805296
http://www.swit.cc
E-mail: contact@swit.cc
USER MANUAL
S W I T E l e c t r o n i c s Co . , LT D.
Congratulations on your purchase of this product. Please read this user manual carefully.
Warning
◆
◆
◆
◆
◆
◆
◆
Never expose the battery charger to rain or moisture.
Never attempt to open the battery charger, please contact the
local agent if have problems.
Never use metal or other conductors to touch the inside of the
battery charger.
Never short-circuit the battery charger terminals.
Please make sure the voltage range is fit for the battery charger.
Please use the power adapter provided by the manufacturer in
order to avoid damage.
Never use the battery charger if it is already damaged.
◆
◆
◆
◆
◆
◆
◆
◆
Only limited to charge specified battery(ies), it may cause danger if
charge other battery(ies) due to incompatibility problem.
Only work in the temperature between 0 -45℃ ℃
Keep the terminals clean and ensure the reliable connection.
It is normal phenomenon that the battery charger may become warm in use.
Please unplug the power lead if the battery charger is not used for a
long time.
Do not cover the cooling vent.
Please do not put the battery charger in unstable place, it may fall and
cause serious damage.
Store the battery charger in cool, dry and clean place.
Caution
1. 2-channel independent charging and controlling system, capable
of 3A charging two batteries simultaneously.
2. One channel AC-DC adaptor output via 4-pin XLR, maximum
power output reaches 90W.
3. LED lights indicate the real-time working status.
Two charging channels are independent channels and can charge
simultaneously.
1. Connect with power lead, turn on the power switch
2. Mount battery(ies) onto the charging channel(s), and it starts to
charge the mounted battery(ies) simultaneously. The LED light(s)
of the related charging channel(s) will indicate like these：
Red: the battery capacity is below 100%
Green: fully charged
Red flash: the charging may have problem
3. When full charged, press battery release button and take out
the battery(ies).
The S-3822A/S offers one channel 4-pin XLR adapting output.
1. Connect with power lead, turn on the power switch, and the
adapting LED indicator will light on.
2. Connect the adapting output to power consuming equipment;
Note:
1. When adapting output, please make sure the voltage and power of
the power consuming equipment meet the requirement (15V, 6A).
2. S-3822A/S does not support charging and adapting output at the
same time. If channel(s) are inserted with battery(ies) during
charging, there will be no DC output. When no battery is mounted,
there will be adapting output.
①
Charging channel (V-mount/Gold mount)
②Battery release button
③Charging LED indicator
④Adapting LED indicator
Input
Power
Charging Output
Adapting Output
Working Temperature
Working Humidity
100 240VA, 50/60Hz～
138W(Max)
DC 16.8V, 3A(Max )×2
DC 15V, 6A(Max)
0 +45℃～℃
10% 90%～
228mm×140mm×86mm(S-3822A)
228mm×140mm×102mm(S-3822S)
Appx 1.0kg
Weight
Dimension
S-3822A: SWIT Gold mount battery (Including: S-8083A, 8082A,
8192A, 8152A, 8113A, 8183A, 8110A, 8180A, D-8111A, 8150A, 8161A,
PB-S220A, S-98A. Capacity: 80Wh-240Wh, Vmax: 16.9V, Ichr: 3A-6A)
S-3822S: SWIT V-mount battery (Including: S-8083S, 8082S, 8192S,
8152S, 8113S, 8183S, 8110S, 8180S, D-8111S, 8150S, 8161A, 8320S,
8340S, 8360S, PB-S220S, S-98S. Capacity: 80Wh-240Wh, Vmax: 16.9V,
Ichr: 3A-6A)
SONY V-mount battery (Including: BP-GL95, GL65, L60S,
IL75, L40A, L90A, L60A）
⑤ Power switch
⑥ Power input socket
⑦ 4-PIN XLR DC output socket
