Sivu 1/4
Visit Our Website
SCAN ME
PyleUSA.com
USER GUIDE
Questions or Comments?
We are here to help!
Phone: 1.718.535.1800
PyleUSA.com/ContactUs

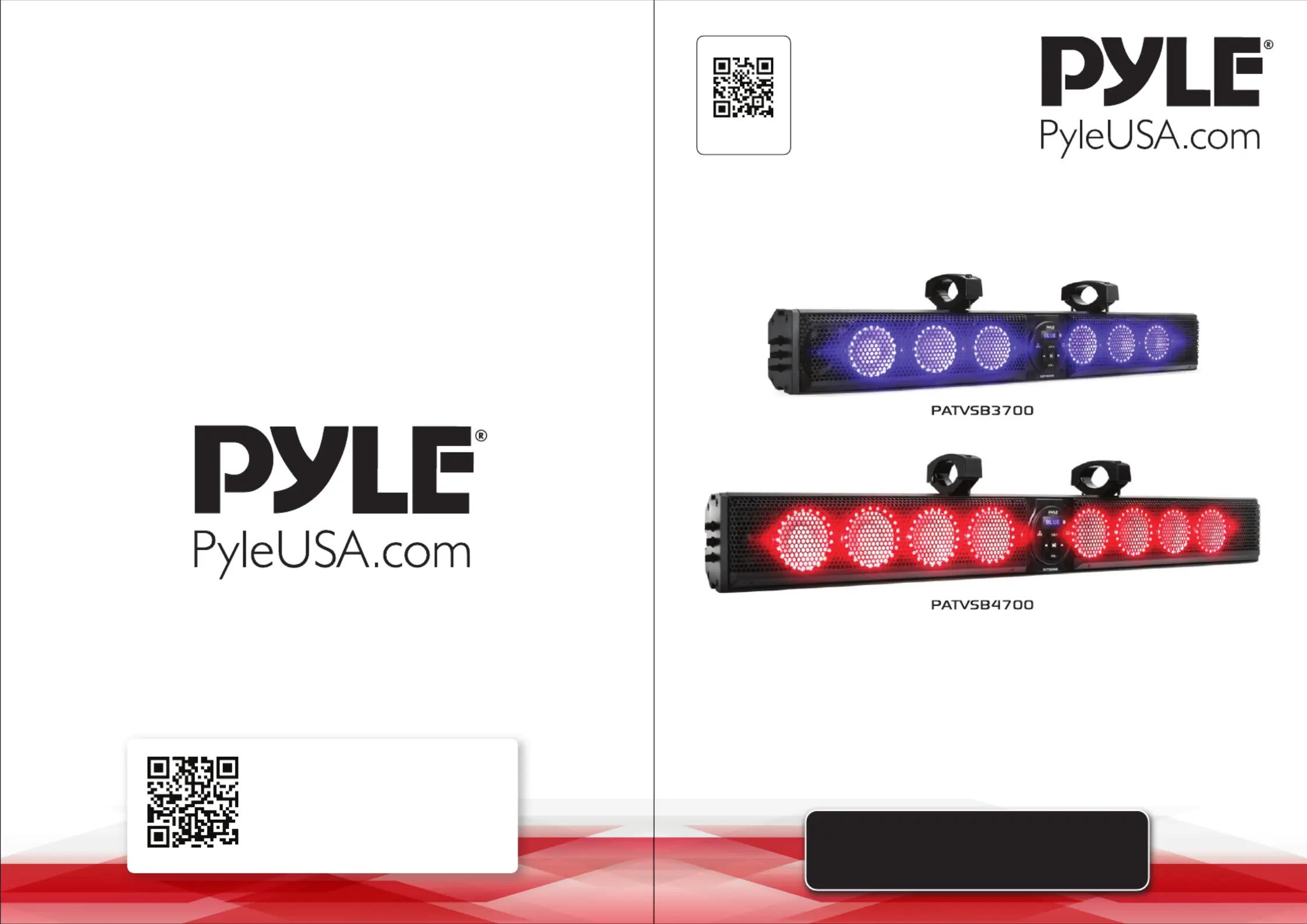

PATVSB4700 - PATVSB3700
Aluminum Alloy Sound Bar
Speaker System
www.PyleUSA.com2www.PyleUSA.com 3
READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT.
RETAIN THIS OWNER’S MANUAL FOR FUTURE REFERENCE.
Features:
• Marine/UTV/ATV Waterproof Soundbar Speaker
• Available in 36" or 46" Sound Bar sizes with a stylish design
• Built-in USB Playback
• Built-in 6/8 x 4-inch woofers and 2 x 1-inch tweeters
• DC 12V input
• Colorful RGB lights
• Lighting, Easily turn On/O the Light or Change the Color Mode
• Front Panel Control Center
• 3.5mm Auxiliary Input
• Marine Rated with Rugged Weatherproof Exterior
• IPX5 Waterproong/Weatherproong
• Weather Resistant Grill and Hardware
Bluetooth Wireless Streaming:
• Wireless music streaming capability
• Quick and hassle-free device pairing
• Compatible with all BT-enabled devices (smartphones, tablets, laptops,
computers, etc.)
• Wireless BT Version 5.3
• Wireless BT network name: PATVSB3700 / PATVSB4700’
WHAT’S IN THE BOX:
• Sound bar speaker
• Remote control
• Car cigarette lighter cable
• Bracket and screws
• USB cable
• 3.5mm audio cable
Technical Specs:
• Power Supply:
• PATVSB3700: 180 Watts RMS/270 Watts Peak
• PATVSB4700: 240 Watts RMS/360 Watts Peak
• Construction Materials: Aluminum alloy sound bar with silicone buttons
• BT Range: Up to 82 ft.
• Aluminum Clamp System: Fits 1.5" - 2" bars
• Frequency Response: 20Hz - 20kHz
• Remote Control Battery: Requires 2x 'AAA' batteries (not included)
• Tweeters: 1 inch
• Product Dimensions (L x W x H):
• PATVSB3700: 34.72’’ x 4.84’’ x4.05’ -inches
• PATVSB4700: 43.23’’ x 4.84’’ x4.05’ -inches
FCC INFORMATION
WARNING: Changes or modications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This unit generates, uses, and can radiate radio frequency energy, and if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on,
the user is encouraged to try and correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
California Prop 65 Warning
WARNING:
This product may expose you to chemicals, which is known to
the state of California to cause cancer, birth defects and other
reproductive harm. Do not ingest.
For more info go to: www.P65warnings.ca.gov
www.PyleUSA.com4www.PyleUSA.com 5
PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION
IMPORTANT SAFETY INSTRUCTIONS:
• Do not operate mobile equipment while driving a motorized vehicle.
Safe driving and consideration for the safety of others should always be your
highest priority.
• If you notice smoke, strange noises, odor from this product, or any other
abnormal signs, immediately turn o the power and consult your dealer or
the nearest authorized PyleUSA Service Center. Using this product in such a
condition may result in permanent system damage.
• Set your volume control at a low setting, then slowly increase the sound until
you can hear it comfortably without distortion or discomfort to your ears.
BE SURE TO OBSERVE THE FOLLOWING GUIDELINES
• Do not turn up the volume so high that you cannot hear what’s around you.
• Use caution or temporarily discontinue use in potentially hazardous situations.
INSTALLATION PRECAUTIONS
WARNING - Always consult a professional installer:
• Do not attempt to install or service this product by yourself. Installation or
servicing by persons without professional training and experience in electronic
equipment and motorized vehicle accessories may be dangerous and could
expose you to electric shock, injury, or other hazards.
• This product can be powered from a vehicle’s cigarette lighter/auxiliary power
port or hardwired directly to the battery through an optional relay/accessory
switch.
• While this product has a weather-resistant design, it should not be submerged
in or under water.
• Use only the installation parts provided with the product.
• Clean with mild soap or detergent and lukewarm water using a clean sponge
or soft cloth. Rinse well with clean water.
"DON'T" - VERY IMPORTANT
• clean in hot sun or on very hot days.DON’T
• use abrasive or highly alkaline cleaners on the main body.DON’T
• scrape the main body with razor blades or other sharp instruments.DON’T
• use gasoline, acetone, or carbon tetrachloride.DON’T
WIRELESS BT OPERATION INSTRUCTIONS
External devices with built-in BT functions can be connected to this sound
bar. When your device is connected to the sound bar, you will hear audible
tones to assist with the connection process.
1. First, ensure the sound bar is powered on and the volume is set to low.
2. Press the “ ” button on the front panel and select BT mode.MODE
3. Turn on BT on your external device.
4. Search for available BT devices. Make sure you are within range of the sound
bar and select “PATVSB2600,” “PATVSB3600,” or “PATVSB4600” on your device.
5. You can now play music from your external device through the sound bar.
FRONT CONTROL PANEL:
1. Display screen
2. Remote Control Receiver
3. Press this button to select the input source.MODE:
4. Light Mode: Press this button to turn the light on/o or change the light color.
5. Previous Track : Press this button to select the previous track.
6. Next Track : Press this button to select the next track.
7. Vol+: Press this button to increase the volume.
8. Vol-: Press this button to decrease the volume.
9. Play/Pause : Press this button to play or pause the audio track.
3
4
1
2
5
6
8
7
9
