Sivu 1/17
SRU3004WM/17

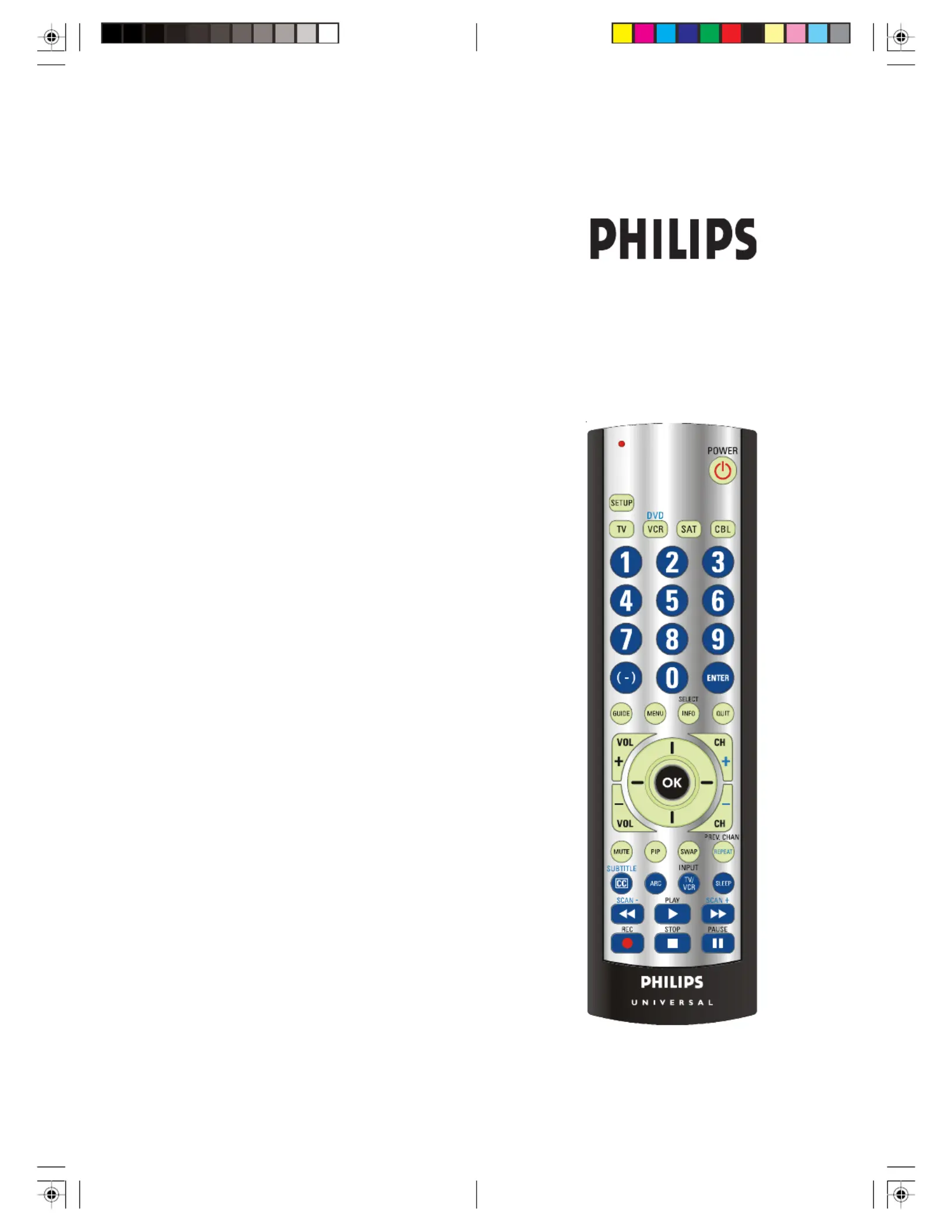

Owner’s Manual
32
IntroductionTable of Contents
Congratulations on your purchase of a Philips
Universal Remote Control. Philips Universal
Remotes let you replace a broken or lost remote
or combine more than one remote into one.
This remote control operates the common features
of most but not all models and brands of IR
Infrared Controlled Video Equipment. This
remote may provide functions that are not
available on your equipment. Some functions of
your particular equipment (e.g. menu functions)
may not be controlled by this remote. In such
cases, use the original remote control for your
equipment. Please use this manual to become
familiar with your Philips Universal Remote. After
you are familiar with your remote the first thing
you need to do is to install batteries and setup
your remote for your particular product and
brand.
Thank you for buying a Philips remote and we
hope it will give you many years of service.
Introduction ...................................................... 3
Button Functions ............................................... 4
SAT/DVD Functions .................................... 6
Setup ............................................................... 7
Battery Installation ....................................... 7
Battery Saver ............................................... 7
Code Saver ................................................. 7
Power-On default ........................................ 7
Code Setup ................................................. 7
Code Entry ....................................................... 8
Direct Code Entry ........................................ 8
Code Search ............................................... 8
Brand Search ............................................... 9
Code Identification Feature ............................. 10
Sleep Timer .................................................... 10
Programming Combo Device Codes ............... 11
Controlling Combo Devices ............................ 11
Controlling Devices with Power On and Off .... 11
VCR/DVD/DVR Punch-Through Feature ....... 12
Volume/Mute Control Feature ......................... 12
Setting Volume/Mute Control, Punch-Through . 13
Setting any Mode to use its own Volume/Mute 13
TV/VCR/INPUT............................................ 14
Troubleshooting .............................................. 15
Instrucciones en Español ................................. 16
54
Note: The REC button must be pressed TWICE to
record from your VCR. For some brands of VCRs, you
might need to press the REC button once, then press it
again for three seconds.
Some buttons on the remote might have functions that
are referred to by different names on the device you are
controlling. E.G., PREV.CHAN may be called RECALL,
or ENTER may be called DISPLAY. These differences
depend on the brand and model of your product. Also,
this remote can only operate features that exist on your
product. E.G., your product must have PREV.CHAN
ability for the PREV.CHAN button to operate this
feature.
Button Functions, cont.
Button Functions
1. Red Indicator Lights when any button is pressed.
2. SETUP Used for setup.
3. TV, VCR/DVD, SAT, CBL Selects product to be
operated.
4. (-) Used for digital sub channels.
5. MENU brings up the DVD disc Menu screen - use
with the UP, DOWN, LEFT & RIGHT navigation
buttons.
6. GUIDE Displays on-screen program guide.
7. VOLUME UP/DOWN Changes the volume level of
the product, normally the TV.
8. OK Selects menu items for the device you are
controlling.
9. UP, DOWN, LEFT & RIGHT navigation buttons.
10. MUTE Turns off the TV sound while the picture
remains.
11. PIP TV Picture-in- Picture control.
12. CC (SUBTITLE) TV Closed Caption (if your TV has
this feature) or DVD Subtitle toggle.
13. RECORD, PLAY, STOP, REW, FF, PAUSE
VCR control buttons operate your VCR even when
the remote is set to operate the TV. Also operates
DVD Scan -/+.
14. ARC: Aspect Ratio Control selects viewing format
for the displayed picture, e.g., Wide, Zoom, etc.
15. SLEEP Turns off the TV after a period of 1 to 99
minutes.
16. TV/VCR/INPUT For some TVs, press repeatedly to
select from available viewing sources (antenna,
cable box, VCR, etc.).
17. PREV. CHAN Returns to the previously selected
channel, or DVD repeat toggle. REPEAT performs
DVD players “A-B Repeat” (or RPT A.B) function
for repeat play of current Chapter or Track.
18. SWAP Toggles the TV PIP screens.
19. CHANNEL UP/DOWN Changes the channels.
CHAPTER +/- controls DVD/CD track selection,
i.e., DVD/CD Track Skip Up/Down (in DVD and
SAT modes). Note the VCR buttons also control
DVD when in DVD Mode.
20. QUIT Used to exit menu functions.
21. INFO/SELECT Displays/selects on-screen channel
information, etc.
22. ENTER Used after direct channel number entry to
immediately change to the selected channel.
23. NUMBERS Enter numbers for direct channel
selection. Some products require Enter to be
pressed after channel selection.
24. POWER Turns product On or Off.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
24.
23.
22.
21.
20.
19.
18.
17.
16.
15.
14.
13.
