ADA Refrigerator
HB24RS4
*SS Door Option Shown
INSTALLATION AND OPERATION INSTRUCTIONS
24” HC SERIES, HB SERIES, & HD SERIES UNDERCOUNTER REFRIGERATION
Form No. Z2363
Rev. 11.24.2020
PERLICK CORPORATION 8300 W. Good Hope Road, Milwaukee, WI 53223 • 800.558.5592 • perlick.com
Warranty
To register your product, visit our web site at www.perlick.
com. Click on “Commercial”, then “Service”. Click on the
link “Warranty Registration Form”. You must complete and
submit this form or the installation date will revert back to
the ship date.
Please record the purchase date and the dealer’s name,
address and telephone number below.
Model Number: ________________________________
Serial Number: _________________________________
Purchase Date: _________________________________
Dealer Name & Address __________________________
______________________________________________
______________________________________________
______________________________________________
Phone Number _________________________________
Introduction
Congratulations on your purchase of a Perlick commercial
underbar product. This manual has been prepared to assist
you in the installation of your cabinet and to acquaint you
with its operation and maintenance.
This manual has been prepared to assist you in the
installation of your under counter refrigerator and to
acquaint you with its operation and maintenance.
We dedicate considerable time to ensure that our products
provide the highest level of customer satisfaction. If
service is required, your dealer can provide you with a list
of qualied service agents. For your own protection, never
return merchandise for credit without our approval.
We thank you for selecting a Perlick product and assure
you of our continuing interest in your satisfaction.
GENERAL INFORMATION
Refrigerator
HB24RS4
*SS Drawers Door Option Shown
Wine Reserve
HB24WS4
*SS Glass Door Option Shown
C
US
For HB24 and HC24
series only
For HD24RS4 and
HD24WS4 only
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without prior notice
2
24” HC SERIES, HB SERIES, & HD SERIES UNDERCOUNTER REFRIGERATION
Operation/Installation Manual
TABLE OF CONTENTS
IMPORTANT!
Read and understand all information in this manual before attempting the installation.
All plumbing and electrical work must be performed by a qualied technician and
conform to all applicable state and local codes.
General Information ................................................................................................................................................................................1
Safety ............................................................................................................................................................................................................2
Cabinet Specications ............................................................................................................................................................................3
Preparing the Cabinet for Use
Refrigerant ...........................................................................................................................................................................................6
Uncrating and Inspection ..............................................................................................................................................................6
Installation ........................................................................................................................................................................................... 6
Electrical ...............................................................................................................................................................................................6
Use and Operation ...................................................................................................................................................................................7
Repair & Maintenance ............................................................................................................................................................................7
Installing Casters or Legs .......................................................................................................................................................................7
Placing the Cabinet .................................................................................................................................................................................7
Sealing the Cabinet .................................................................................................................................................................................8
Preparing the Cabinet ............................................................................................................................................................................9
Adjusting Full Extension Shelving ...................................................................................................................................................... 9
Operation ................................................................................................................................................................................................. 10
Checking Product Temperature ....................................................................................................................................................... 10
Digital Temperature Control ..............................................................................................................................................................10
Programming Button Denitions ....................................................................................................................................................11
LED Functions ......................................................................................................................................................................................... 11
Maintenance ........................................................................................................................................................................................... 12
Troubleshooting .................................................................................................................................................................................... 14
Wiring Diagrams .................................................................................................................................................................................... 15
SAFETY
PLEASE READ all instructions completely before attempt-
ing to install or operate the unit. Take particular note of
the DANGER, WARNING and CAUTION information in the
manual. The information is important for the safe and
ecient installation, operation and care of your Perlick
unit.
DANGER
Indicates a hazard that WILL result
in serious injury or death if pre-
cautions are not followed.
W ARNING
Indicates a hazard MAY cause
serious injury or death if precau-
tions are not followed.
CAUTION
Indicates a hazard where minor
or moderate injury may occur if
precautions are not followed.
NOTICE
Indicates that property damage
may occur if warnings or instruc-
tions are not followed.
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without prior notice
3
Form No. Z2363
Rev. 11.24.2020
24” HC SERIES, HB SERIES, & HD SERIES UNDERCOUNTER REFRIGERATION
Operation/Installation Manual

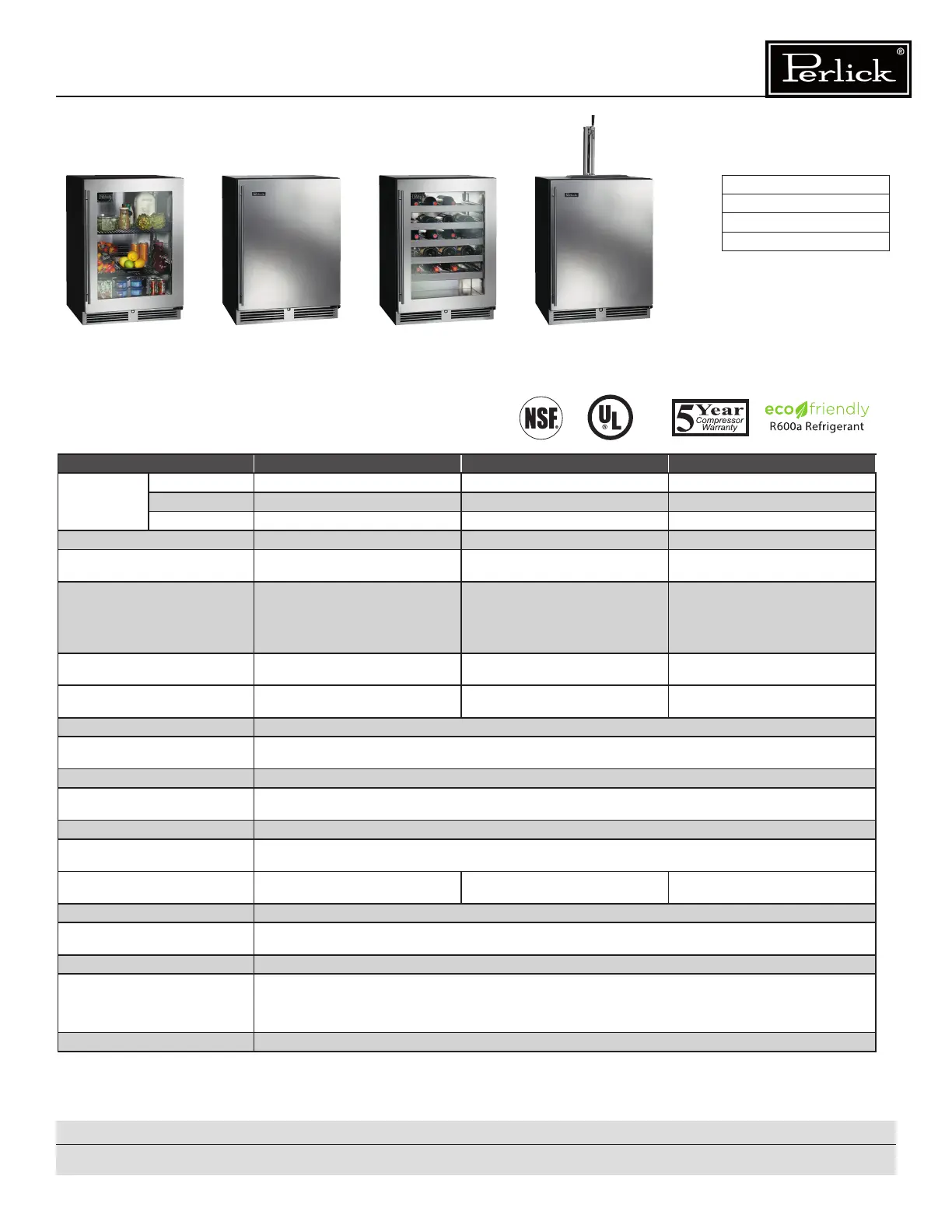

MODEL NO. HC24RS4 HC24FS4 HC24WS4
CABINET
DIMENSIONS
Length Ins. (mm) 23-7/8” (606) 23-7/8” (606) 23-7/8” (606)
Depth Ins. (mm) 24” (610) 24” (610) 24” (610)
Height Ins. (mm) 34” (864) 34” (864) 34” (864)
SHIP WEIGHT LBS. (KG) 185 (83) 195 (88) 205 (92)
CAPACITY CU. FT. (L.)
[PRODUCT*]
5.3 (150) [5 cases] 5.3 (150) [86 glasses] 5.3 (150) [40 wine bottles]
SHELVING 2 black vinyl-coated full-extension shelf
(adjustable)
2 black vinyl-coated full-extension shelf
(adjustable)
5 black vinyl-coated full-extension wine
shelves that hold 8 wine bottles each
(750 ml.) (adjustable)
Refrigerator & beverage shelving
available
TEMPERATURE SETTINGS F°(C) 34° (1.1) - 42° (5.6)
Factory Set Point 36° (2.2°)
-10°(-23.3) - 10°(-12.2)
Factory Set Point 0° (-17.8°)
40°(4.4°) - 68°(20)
Factory Set Point 55° (12.8)
TAPPING Centered over door only.
Tapping option removes shelving.
Not available Not available
CABINET CONSTRUCTION (INT.) Interior Stainless Steel
CABINET CONSTRUCTION (EXT.) Exterior Sides, Exterior Top and Grill Stainless Steel Exterior Back and Exterior Bottom Galvanized
Door Exterior Customer Choice (see below under ‘Customer Options’)
CABINET INSULATION Polyurethane-Ecomate. Wall Thickness-2” Door, Drawer Thickness-2” (solid stainless steel only)
DOORS, HINGING & HARDWARE
Number of Doors 1 Opening Style Hinged (Left or Right) Door Style Solid or Glass
Door Swing Clearance 25” (635) Locks Available (factory installed)
CONDENSING UNIT Condenser Access Front
REFRIGERATION Refrigerant R600a Expansion Device Capillary Tube Type w/Hermetic Compressor
Defrost Chiller equipped w/automatic
4-hour hot gas defrost cycle and manual 6-hour defrost with auto restart (HC24FS model only)
HEAT REJECTION (at 75°F
ambient)
450 btu/hr 700 btu/hr 450 btu/hr
PLUMBING None required. Moisture drains to self evaporating condensate pan
ELECTRICAL Electrical Supply 115V/60 Hz/1 Phase Running Load Amps HC24FS4: 2.4/HC24RS4 & HC24WS4: 1.6 Cord
Connection Cord Connected (3-prong 6’ NEMA 5-15P) Thermostat Digital Lighting Type LED
VENTILATION
Front-vented
CUSTOMER OPTIONS
Door Finishes
Black Vinyl/Field Laminate (B), Stainless Steel (S), Glass w/ Black Vinyl/Field Laminate (G), Glass w/ Stainless
Steel Frame (T), Stainless Steel Drawers (E), Black Vinyl/Field Laminate Drawers (D) Door Handle Options 24” full length
stainless steel, Classic 6” chrome w/black vinyl grip, tab handle (top mount, stainless steel)
NOTE: Glass option not available for freezer or beer dispenser
ADDITIONAL ACCESSORIES
Casters 3.75” (Part No. 66736) Legs 4”-5” (Part No. 66734), 6”-7.25” (Part. No 66735)
NOTE: This equipment is intended for the storage and display of
non-potentially hazardous bottled or canned products only!
*Product capacity based on 12 oz. long neck bottles (Refrigerator), 3”
diameter glass size (Freezer) and 750 ml. wine bottles (Wine Reserve)
HC Series Size and Specications
C
US
#
MODEL NO.
HC24FS4
HC24RS4
HC24WS4
*Shown with 1 faucet
draft arm tapping option
Chiller
(HC24FS4)
Refrigerator
(HC24RS4)
Wine Reserve
(HC24WS4)
Beverage Dispenser
(HC24RS4-T1)
