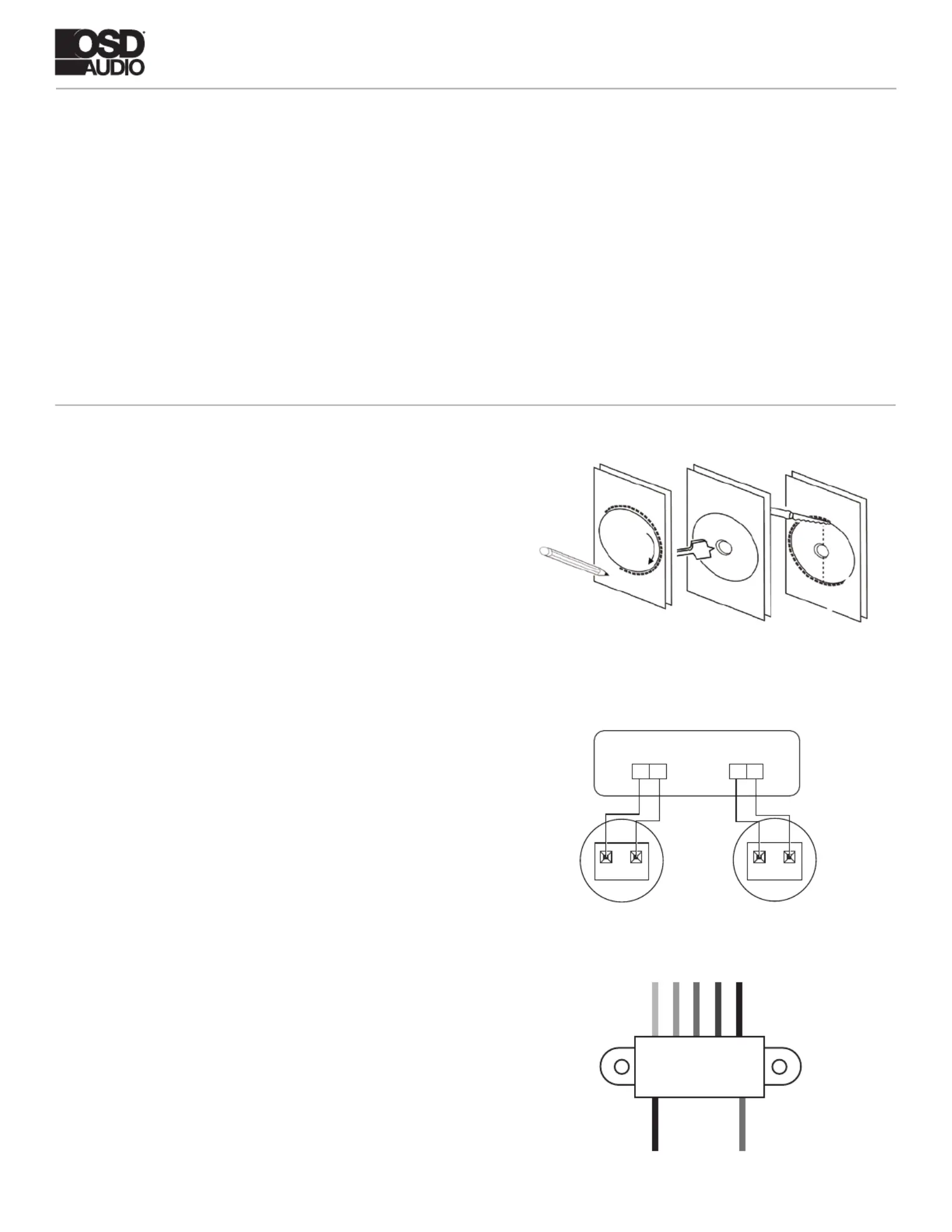

ACE800ST INSTALL GUIDE
Preparation:

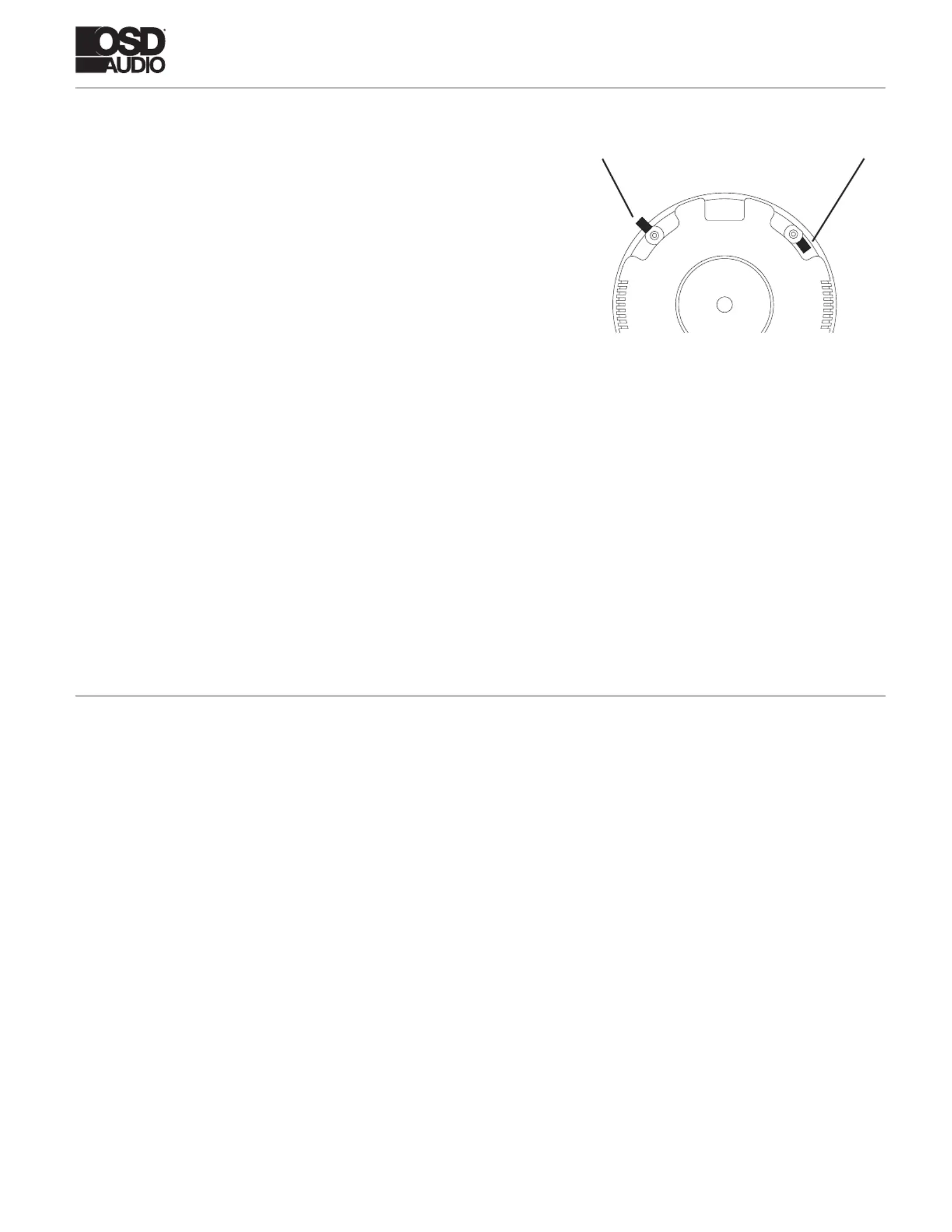

Installation:
Tools For Installation Speaker Wire Guide
Considerations
Cut Out
- Pencil
- Drill
- Tape Measure
- Wire Cutter
- Phillips Screwdriver
- Utility Knife
- Safety Eye Wear
- Gloves
- Sandpaper
- Where is the best place to install the speakers?
- Where do the speakers sound the best?
- Separate the speakers 6 - 10 feet apart.
NOTE: This is the most important part of the entire installation.
If you are not certain whether any obstructions exist behind the
desired mounting area, you should start by cutting a small hole in
the center of your penciled mounting hole with a drywall saw.
Trace along the included template. Cut along the traced line using a
drywall saw or rotary drill. Use a piece of sandpaper to sand down the
cut out edge for a smoother contour. (See Diagram 1.)
18AWG minimum - for distances up to …………………. 10 ft
16AWG - from …………………………………..…... 10 to 50 ft
14AWG - from …………………………………...… 50 to 100 ft
Diagram 1
Connection
Transformer Settings
When connecting any speakers to the amplier always make sure
the power is off. Locate the connection terminals on the back of
your amplier. Always make sure to connect audio out from the
back of your amplier to the speakers.
(See Diagram 2.)
NOTE: Not all Amplier can safely play more than one pair of
speakers at once. Please refer to your amplier owner’s manual for
impedance and wattage compatibility.
Choose the correct wires on the transformer for your particular
application.
(See Diagram 3.)
NOTE: Tap settings may differ slightly from diagram
depending on model.
Left Out
Left Speaker
Amplier
Right Out
Right Speaker
- -
+ +
--
++
Diagram 2
Diagram 3
4W 8W 16W 32W COM
COM 8Ω
