TERROR BASS
OWNER’S MANUAL
DESIGNED AND ENGINEERED BY ORANGE MUSIC ELECTRONIC COMPANY LTD.
108 RIPON WAY, BOREHAMWOOD, WD6 2JA, UK. ORANGEAMPS.COM
IMPORTANT SAFETY INSTRUCTIONS POWERING YOUR UNIT
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarised or grounding-type plug. A polarised plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
The exclamation point within an
equilateral triangle and "WARNING"
are intended to alert the user to the
presence of important operating or
servicing instructions. Failure to
heed the instructions will result in
severe injury or death.
This equipment should be used
under the supervision of an adult
at all times.
The lightning flash with arrowhead
symbol, within an equilateral
triangle, is intended to alert the user
to the presence of un-insulated
‘dangerous voltage’ within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
Terminals labelled as “SPEAKER
OUTPUTS” must be connected to a
speaker cabinet of the designated
load (Ω) rating using an un-shielded
two conductor cable for speaker use
at all times during operation.
The “Caution, hot surface” symbol
indicates that the marked item may
be hot.
Do not cover or block ventilation
openings. Ensure the apparatus is
installed with plenty of space around
the unit (> 6”/12.5cm) as this
apparatus may generate heat under
normal use. This equipment is not
intended to be used on soft support
(like beddings, blankets etc.). This
equipment should always be placed
on a flat, stable surface.
To reduce the risk of fire and electric
shock do not expose this apparatus
to rain or moisture. For indoor use
only. Do not use in damp environ-
ments, e.g. bathrooms etc.
Do not place objects containing
liquids on, or near the product.
Do not operate this apparatus or
connect/disconnect a power plug
whilst hands are wet.
Do not attempt to gain access to
the interior of the product. No user
serviceable parts inside. Refer all
servicing to qualified servicing
personnel.
This symbol indicates this product is classified as Waste Electrical and Electronic Equipment
(WEEE) in the European Union and should not be discarded with household waste. Contact
your local authority for more information and details of your nearest approved disposal facility.
FUSE INFORMATION
The mains fuse is provided for your safety. The
fuse rating for your model and region is indicated
near the unit’s AC mains inlet
Do not replace with a fuse of a different type
T = Time Delay (“Slow Blow”)
mA or A = Rated current, expressed in mA or A
L = Low breaking capacity or;
H = High breaking capacity
If the mains fuse repeatedly blows,
contact your Orange dealer.

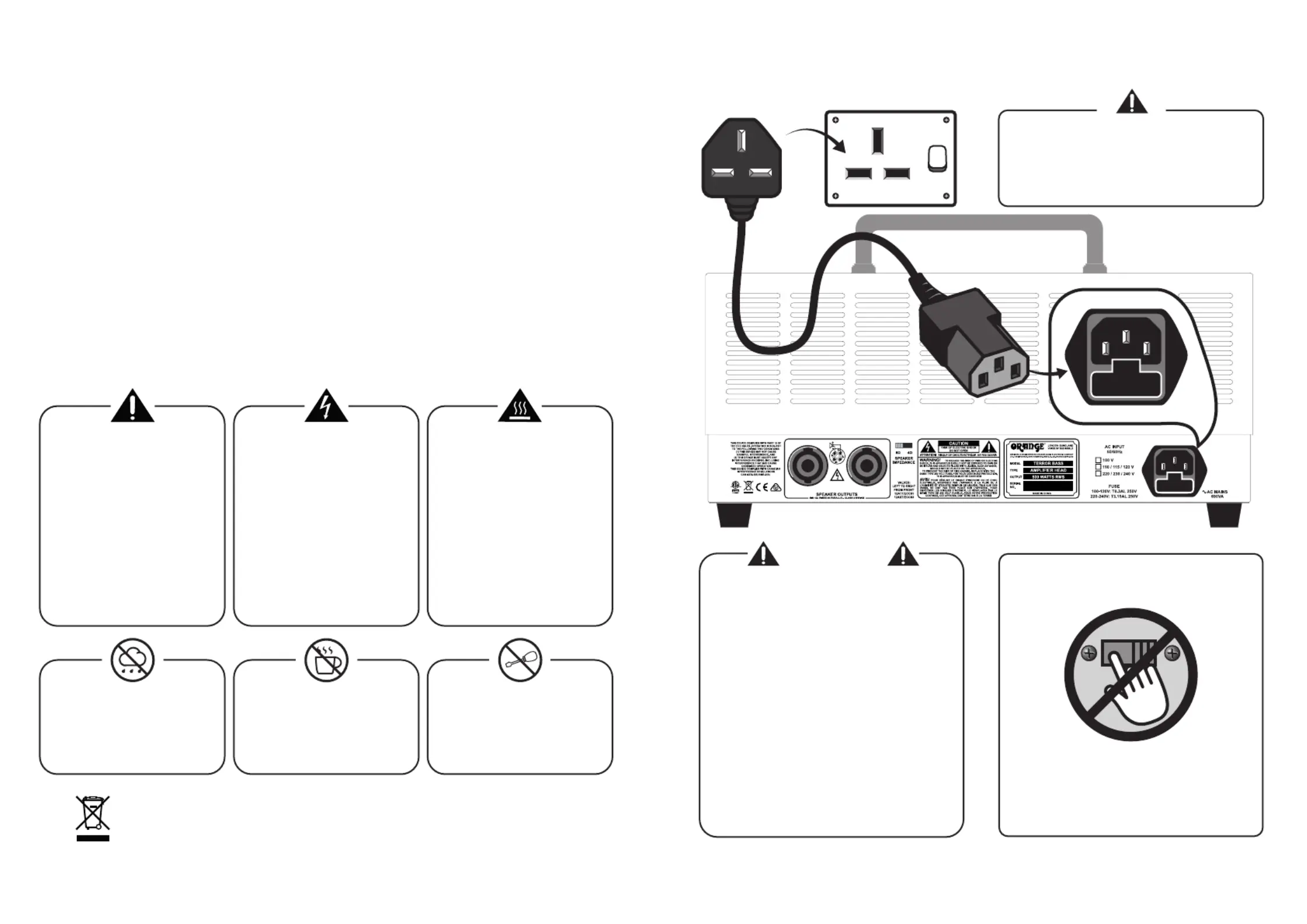

WARNING
Connect the included power cord/plug to an
AC mains socket outlet with a protective
earthing connection.
The voltage selector switch is located on the rear
or side of the product. It is set at the factory for the
country or region in which the unit is intended to be
sold. If the unit is to be used oversees, contact
Orange Amplification.
WARNING
FUSE
DO NOT TAMPER WITH VOLTAGE
SELECTOR SWITCH
2 3
FUSE
Before switching on the power, set the unit’s volume control(s) to minimum.
Ensure the correct speaker load is connected at all times during operation.
Refer to the section entitled “SPEAKER OUTPUTS”
Use good quality shielded instrument cable to connect your instrument to your unit’s input.
To prevent excessive hum and electrical noise, operate your amplifier and instruments as
far away as possible from other electronic devices. Examples include: refrigerators, motors,
air conditioners, television sets, radio receivers etc.

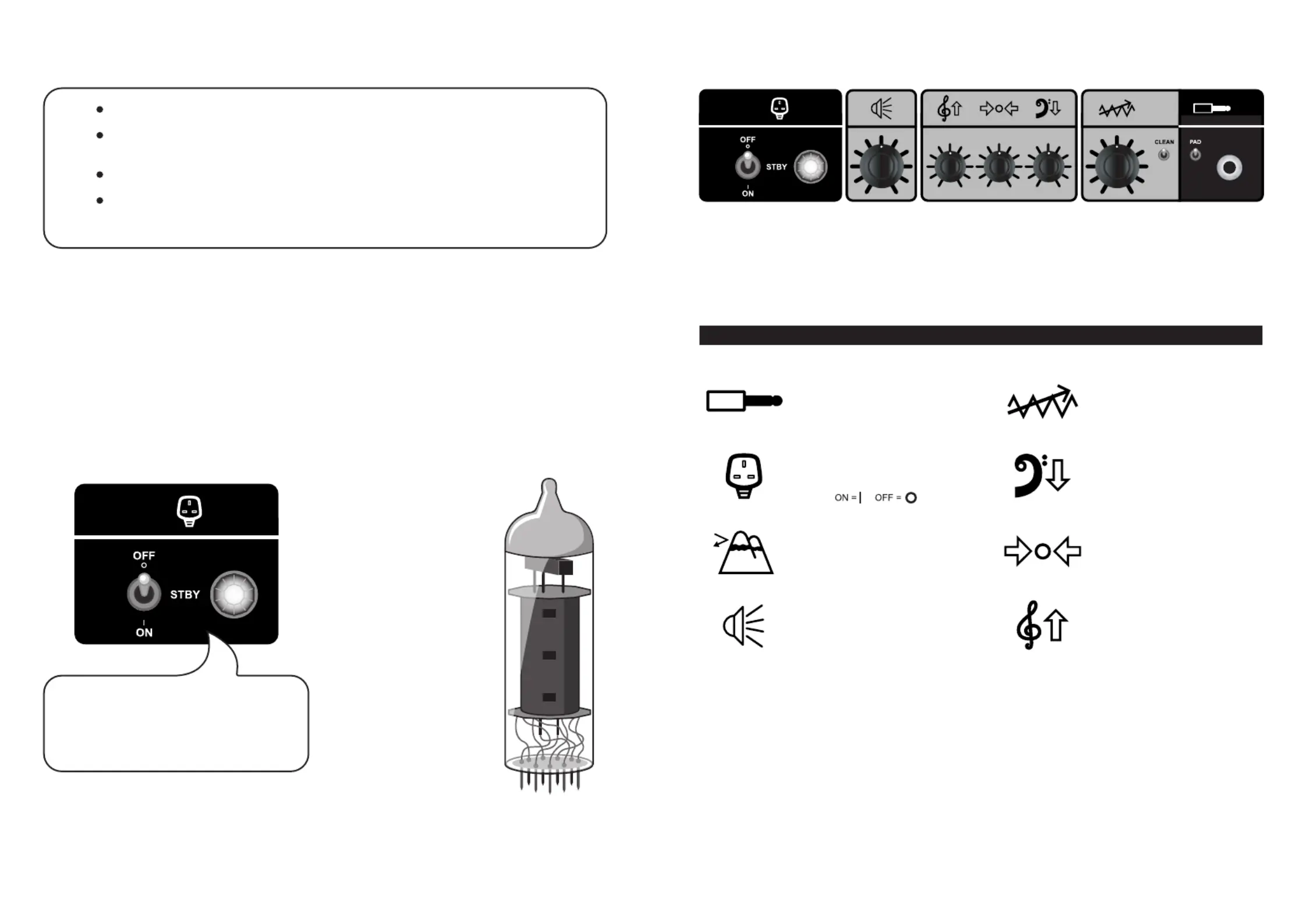

START UP PROCEDURE
FOR VALVE AMPLIFIERS
Before switching the switch to the POWER ON position,
ensure the switch is set to the OFF/STBY/ON STBY
(Startup Tension Bypass) mode.
Leave the amp in mode for at least 2 minutes STBY
prior to performance. This will help prolong the life of
the valves [tubes]. After 2 minutes, switch to play mode.
Select the mode during breaks in performance. STBY
SERVICING INFORMATION FOR
VALVE AMPLIFIERS
Periodic valve renewal should be considered part of
owning a quality valve [tube] amplifier. The rate of valve
wear is dependent on many factors, but if you notice a
change in the performance of your amplifier, it is likely a
result of valve decline. Valves can fail at any time.
Output valves (EL84, EL34, 6550 etc.) are subject to
more stress than preamp valves (12AX7, 12AT7 etc.)
and may require more regular replacement. Consult
your service centre/dealer for more information.
BASS
Adjusts the lower frequency
response. Increasing the bass
produces deeper sounds.
FX LOOP
Used to place external effects between the
amplifier’s preamplifier section and output
section. Connect the SEND jack to the input
of external effects. Connect the output of
external effects to the RETURN jack.
GAIN
Controls the (preamplifier) gain level.
Higher settings produce more
distortion. Note: When set to minimum,
no sound will be heard.
INPUT
¼” instrument jack socket.
VOLUME
Adjusts the volume level for either the
Natural or Dirty channel.
TREBLE
Adjusts the high frequency response.
Increase the treble for brighter tones
or reduce for a warmer sound.
MID
Adjusts the midrange response.
Increasing the mids creates
a fatter sound, whilst reducing
‘scoops’ the tone.
POWER
The lamp will illuminate to indicate
the power is switched to ON.
GENERAL USE FRONT PANEL
ORANGE ICONS
Bias adjustment should only
be performed by authorised
service personnel.
The fuse labelled " " HT FUSE
will blow in the event of output
valve failure. The output
valve(s) should be replaced,
and the HT fuse replaced with
the correct 250V type.The
rating is indicated on the
product near the HT fuse
holder.
Our Orange Valve Tester can
be used to help match valves
and check valve health.
Visit orangeamps.com for
more information.
POWER MODE
The up position turns the unit OFF
The centre position selects mode.STBY
The down position turns the unit ON
Output valves should always be
replaced with matched sets, though
not all models require a bias
adjustment. Contact your
Orange dealer for more
information.
4 5
PAD SWITCH
The pad switch on the front is for active basses which
takes 6dB off the input sensitivity.
CLEAN SWITCH
The clean switch gives more headroom and smoother
clean sounds.
