I-00553 Rev B

Installation Instructions

Reference Series Rolling Furniture Rack

Rear Rackrail

TOOLS REQUIRED

#2 Phillips screwdriver

Hex Driver

1/2” Wrench

PARTS

Brackets

Rackrail

5/16-18 x 5/8” Hex Bolts

Nuts

#10 x 5/8” Phillips Wood Screws

QTY

DESCRIPTION

4

2

4

4

16

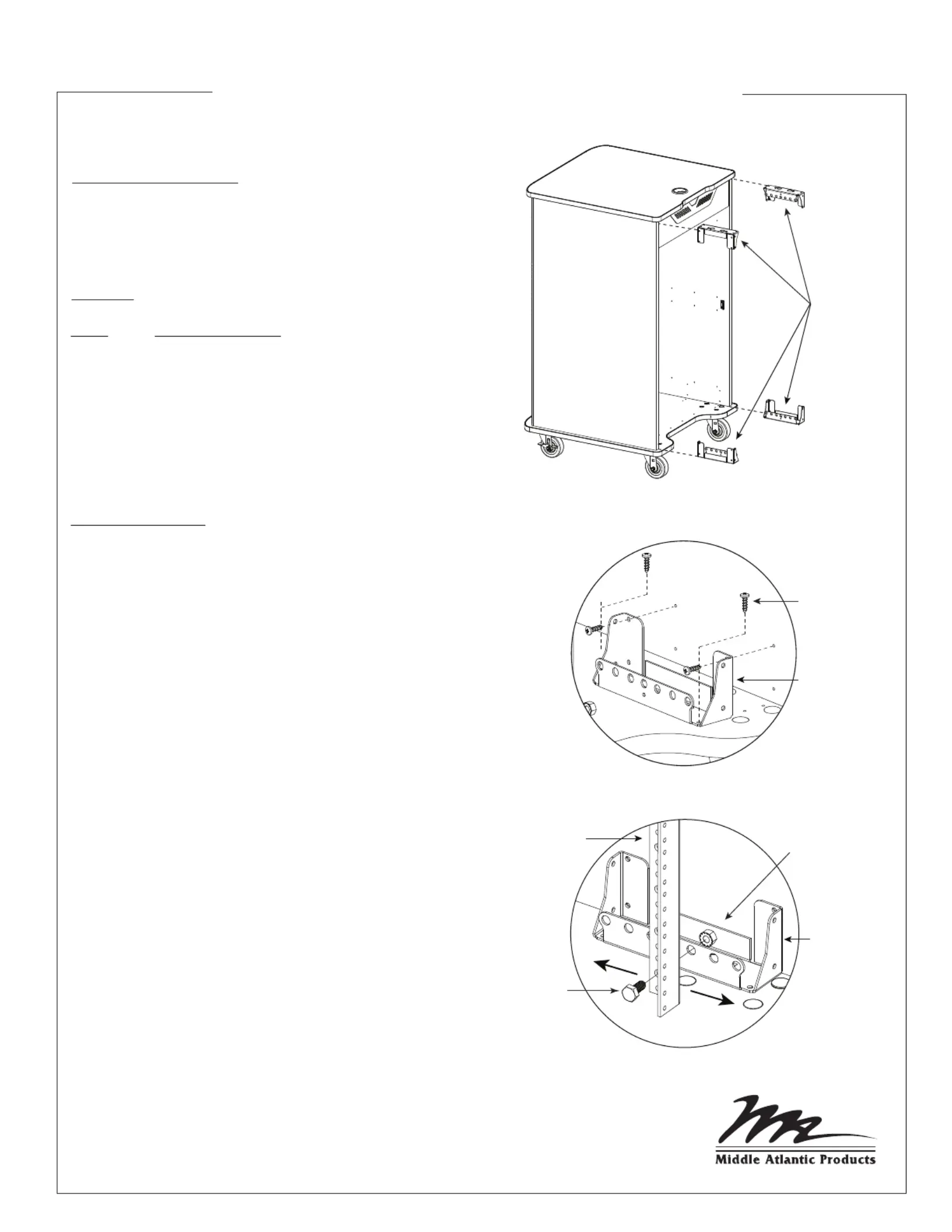

INSTALLATION

1) Using large holes in brackets as locators,

position two (2) brackets on bottom of RFR.

(FIGURE A)

2) Align four (4) wood screws with pre-drilled

holes in RFR and secure each lower bracket

to RFR. (FIGURE B)

3) Repeat steps 1-2 to install upper brackets.

4) Select appropriate mounting depth and secure

rackrails to brackets using two (2) 5/16-18 x 5/8”

hex bolts and two (2) nuts per side.

(FIGURE C)

FIGURE A

FIGURE B

FIGURE C

Wood

Screws (4)

Brackets (4)

5/16-18 x 5/8”

Hex Bolt (1)

Nut (1)

Bracket

Rackrail

Bracket
