MAGICAIR DELUXE SERIES MANUAL

ALL MODELS ARE: Sturdy All Steel; 12 ft. 3 conductor grounded cord.

ACCESSORIES:Notched Inflator Adaptor, 2 Tapered Adaptors (7/8” O.D., 3/16” D.) 6 ft. Flexible O.&

Hose.

Different models and what they come with:

DIDA-1 (109-8114)11: 1.17 HP Motor; 6.8 Amps; 802 Watts; 85 CFM.

DIDA-2 (109-118145): 1.7 HP Motor; 8.3 Amps; 928 Watts; 100 CFM.

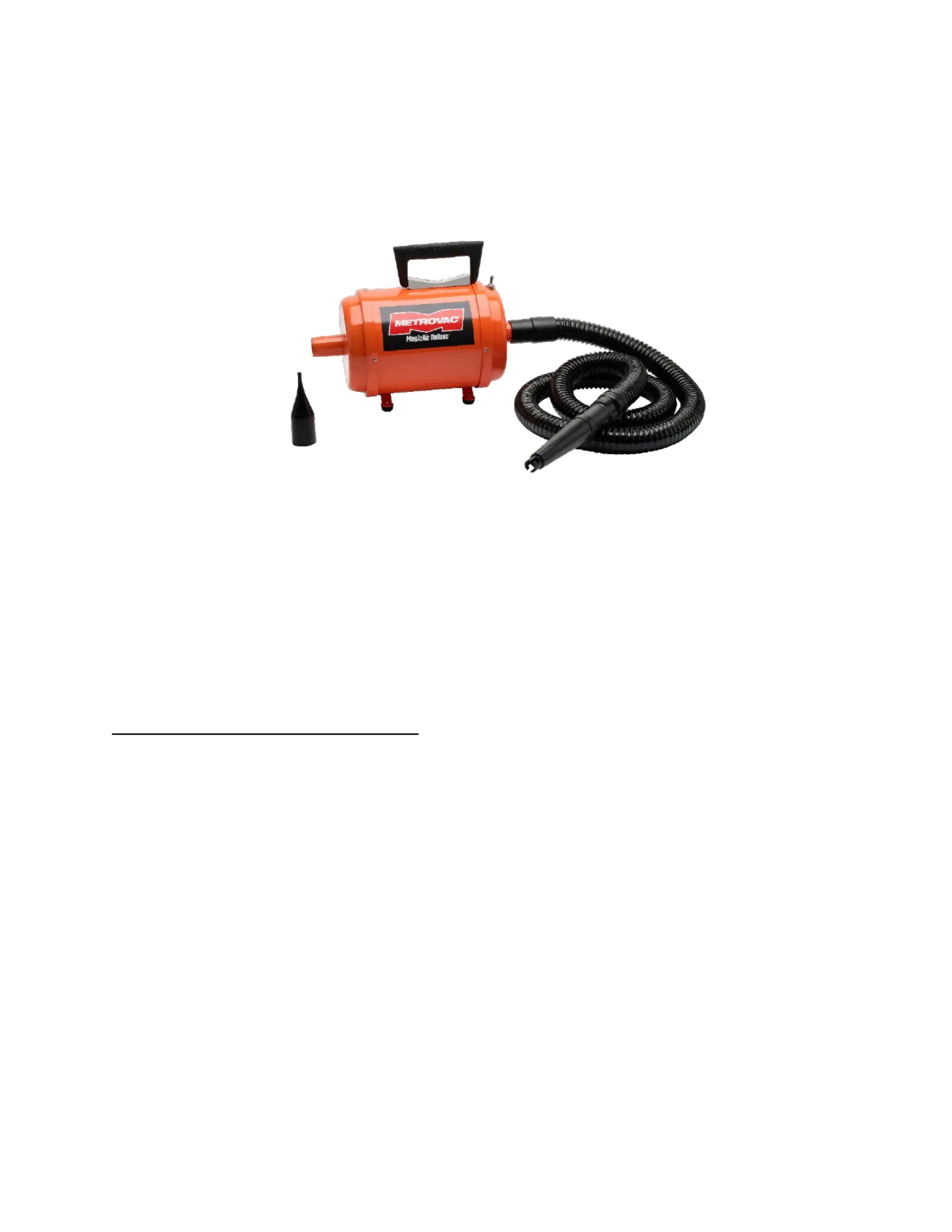

DIDA-4 (109-118176): 4.0 HP Motor; 10.8 Amps; 1170 Watts; 130 CFM. (Model shown.)

INSTRUCTIONS

•Plug grounded power supply cord into grounded outlet or grounded extension cord.

•Place hose on exhaust end of power unit.

•Affix adaptor tightly on the end of hose. Check for tight fit.

•Insert adaptor into valve. For 3/16 pinpointed adaptor, be sure to push far enough into valve so that

flap is open for maximum airflow.

•For large valve adaptors, twist to lock or secure adaptor in place.

•Turn switch from “OFF” to “” position ON

•Inflate your inflatable. Monitor inflation so that the power unit does not over inflate.

FOR DEFLATION:

•Place hose with adaptor on intake end of power unit.

•Firmly insert adaptor into valve, opening flap or diaphragm.
