WP-2UT/R-KIT Quick Start

P/N:

2900-301411QS

Rev:

1

Scan for full manual

WP-2UT/R-KIT Quick Start Guide

This guide helps you install and use your WP-2UT/R-KIT for the first time.

Go to www.kramerav.com/downloads/WP-2UT/R-KIT to download the latest user manual and check if

rmware upgrades are available.

Step 1: Check in the b what’sox

WP-2UTUSB Transmitter

1 C-USB/AB-6cable

Installation accessories

1 Bracket set

PT-2URUSB Receiver

1 Power adapter and cord

Frame set and faceplate

1 Quick start guide

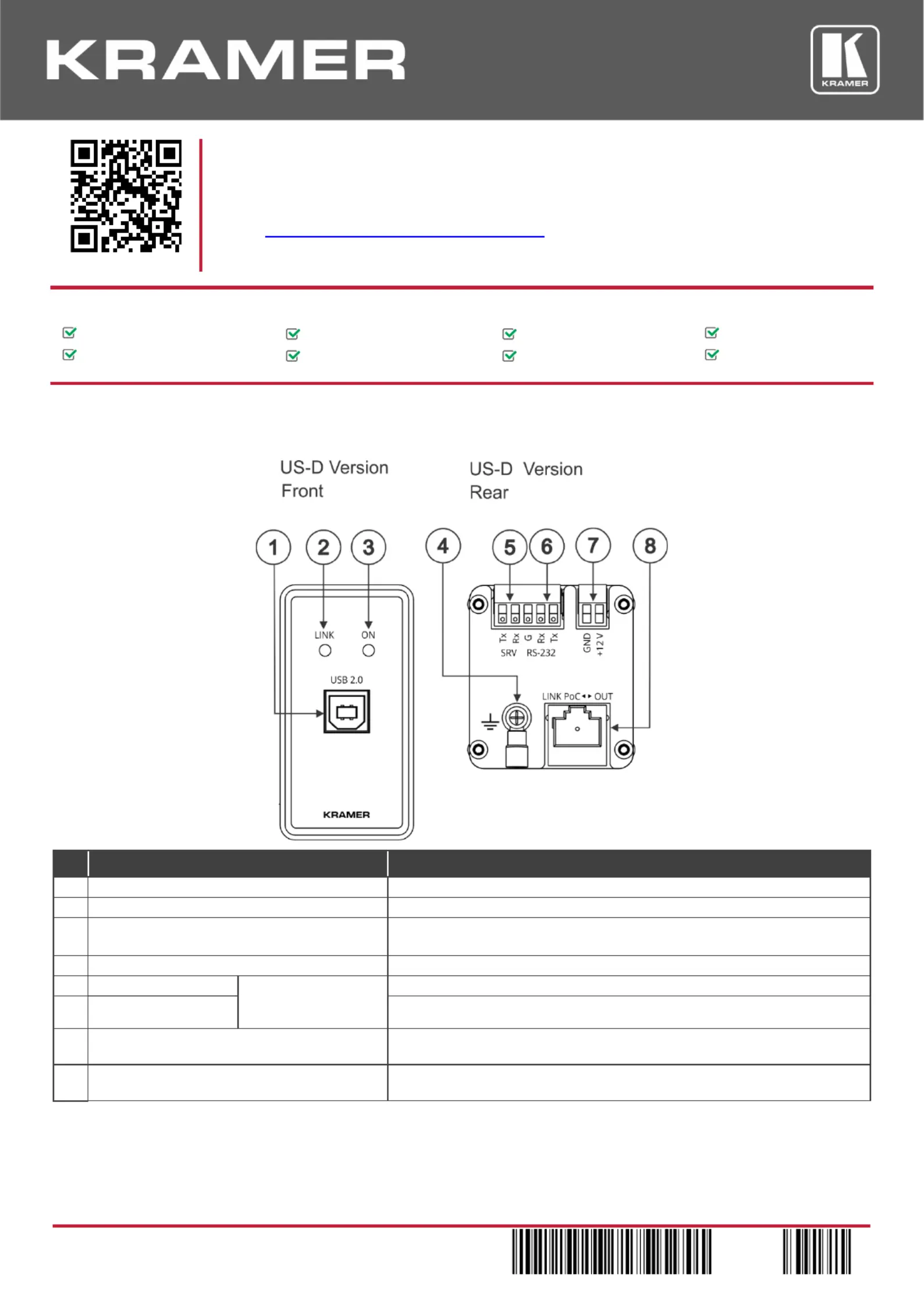

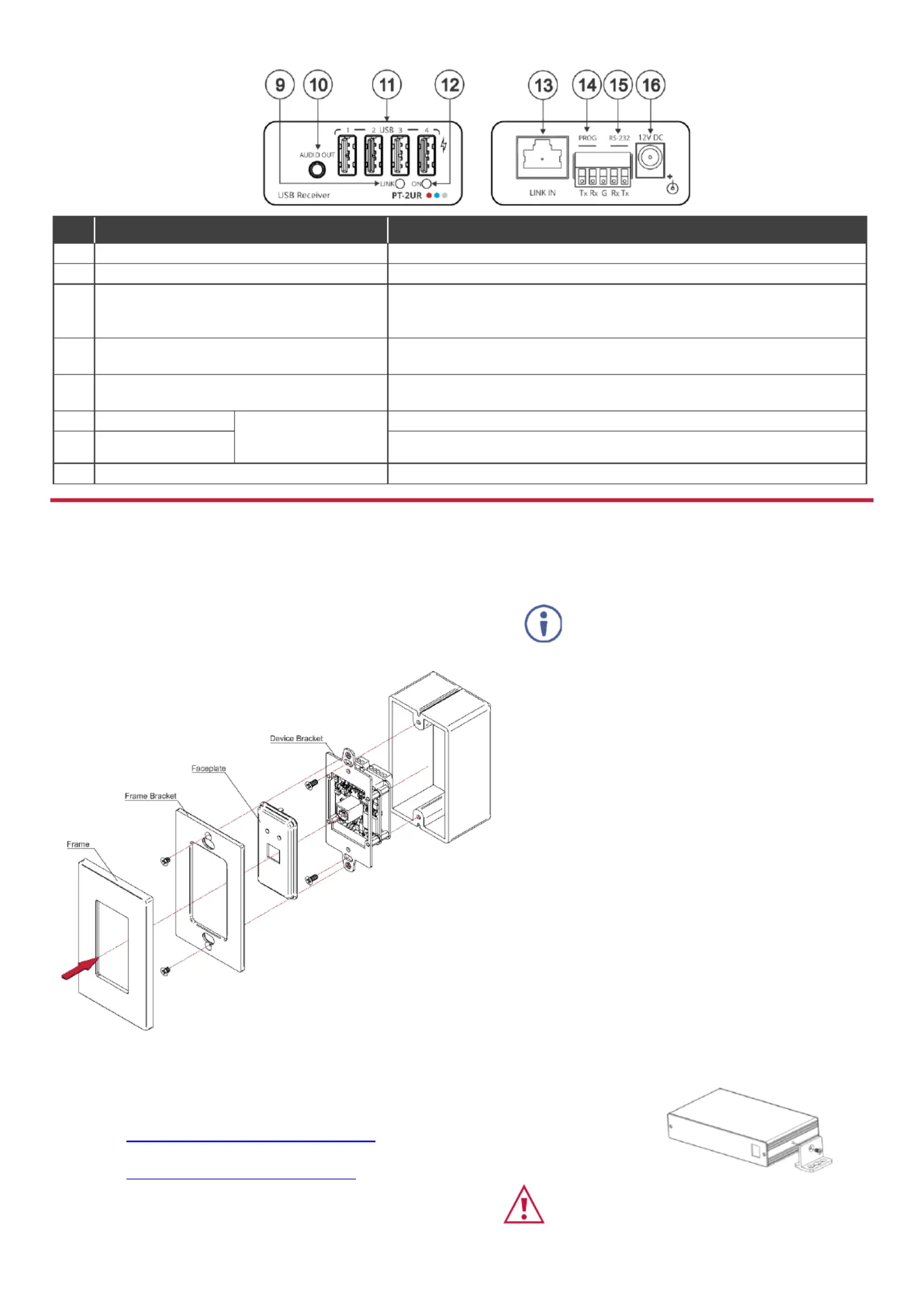

Step 2: Get to know your -2UT/R-KIT WP

WP-2UT

#

Feature

Function

1

USB 2.0 Type B Port

Connect to USB host.

2

LINK LED

Flashes blue when a link is established.

3

ON LED

Lights green when locally powered by the power adapter.

Lights orange when powered by PoC.

4

Ring Tongue Terminal Grounding Screw

Connect to grounding wire (optional).

5

SRV (Tx, Rx)

5-pin Terminal Block

Connector (with a

common G pin)

Connect for rmware upgrade.

6

RS-232 (G, Rx, Tx)

Connect for serial extension (9600 baud rate).

7

Power Supply 2-pin Terminal Block

Connector

Connect to the power supply. Connect GND to GND, +V to + 1212V.

8

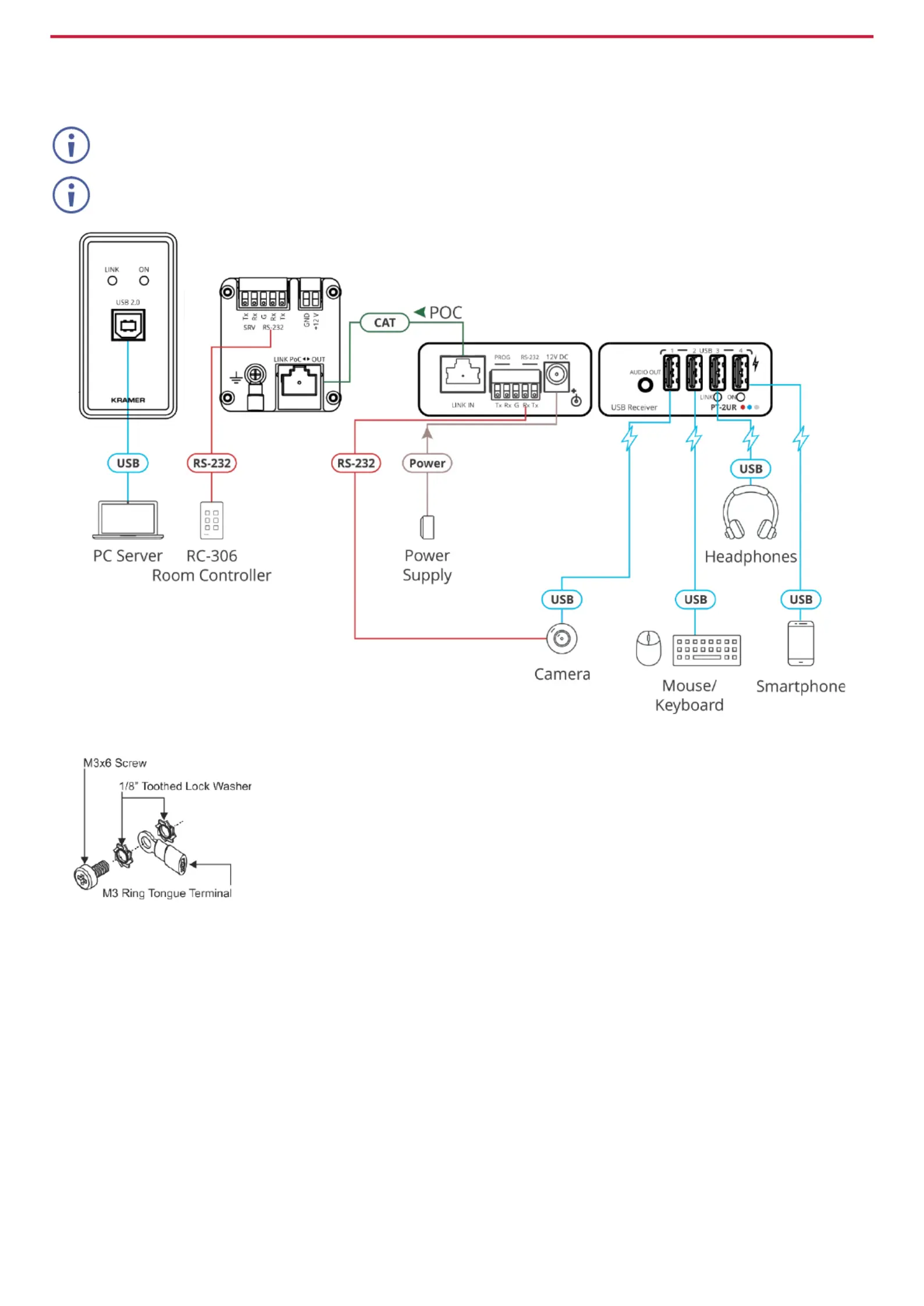

LINK POC OUT RJ-45 Connector ◄►

Connect to the LINK IN port on the PT-2UR and to power either the device

via the receiver or the receiver by the device.
