Sivu 1/4
SU Center
SU Surround
simple setup guide
thank you for choosing JBL. For over 50 years, JBL
has been involved in every aspect of musical and lm recording
and reproduction, from live performances to monitoring the
recordings you play in your home, car, or oce.
We’re condent that the JBL system you have chosen will
provide every note of enjoyment that you expected – and that
when you think about purchasing additional audio equipment for
your home, car, or oce, you will once again choose JBL.
Please take a moment to complete the enclosed prole card.
It enables us to keep you posted on our latest advancements,
and helps us to better understand our customers and build
products that meet your needs and expectations.
JBL Consumer Products
On TV.
Mounting Options
SU Surround
On shelves.
SU Surround
SU Center
one. Speaker Placement
SU Center
On wall.
The customer is responsible
for proper selection and use
of mounting hardware, avail-
able through hardware stores,
to properly and safely wall-
mount the speakers.

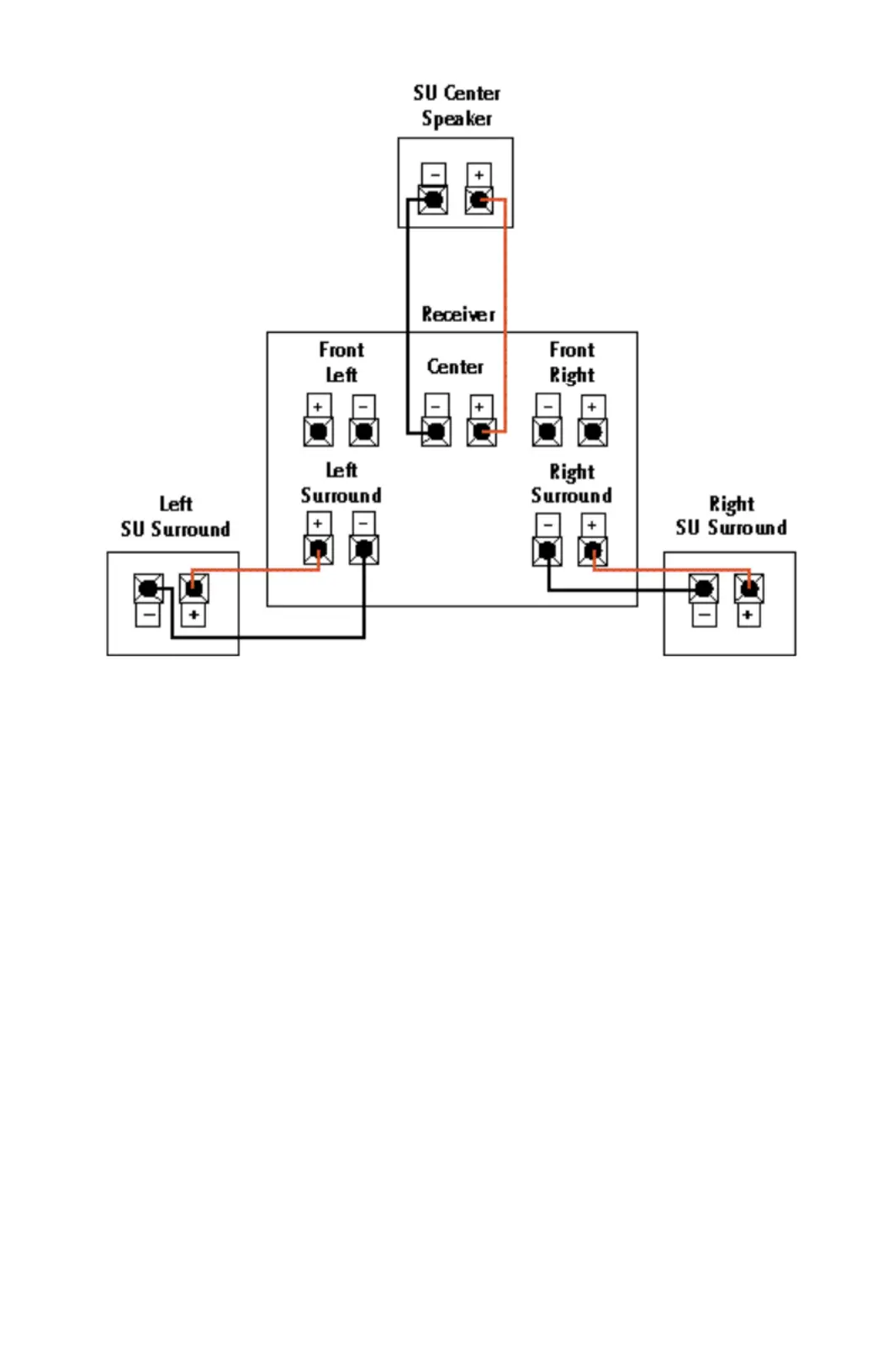

two. Speaker Connections
Separate and strip the ends of
the speaker wire as shown.
Speakers and electronics ter-
minals have corresponding (+)
and (–) terminals. It is impor-
tant to connect both speakers
identically: (+) on the speaker
to (+) on the amplier and (–)
on the speaker to (–) on the
amplier. Wiring “out of phase”
results in thin sound, weak
bass and a poor stereo image.
Connection Tips
If there is no sound from
the surround speakers,
check the following:
• Check all wires and con-
nections between receiver/
amplier and speakers. Make
sure all wires are connected.
Make sure none of the
speaker wires are frayed,
cut, or punctured.
• Review proper operation of
your receiver/amplier and its
surround-sound features.
• Make sure the movie or TV
show you are watching is
recorded in Dolby*Surround.
If it is not, check to see if
your receiver/amplier has
other surround modes you
may use.
If there is no sound from
the center speaker, check
the following:
• Make sure that your
receiver’s Center Channel
Mode is in the “normal” or
“wide” position. If it is in
the “phantom” position, the
center speaker will not play.
• Check all connections
between processor/amplier
and the center speaker.
If the system plays at low
volumes but shuts o as
volume is increased, check
the following:
• Check all wires and con-
nections between receiver/
amplier and speakers. Make
sure all wires are connected.
Make sure none of the
speaker wires are frayed,
cut, or punctured.
• If more than one pair o f
main speakers is being used,
check the minimum imped-
ance requirements of your
receiver/amplier.
Troubleshooting
