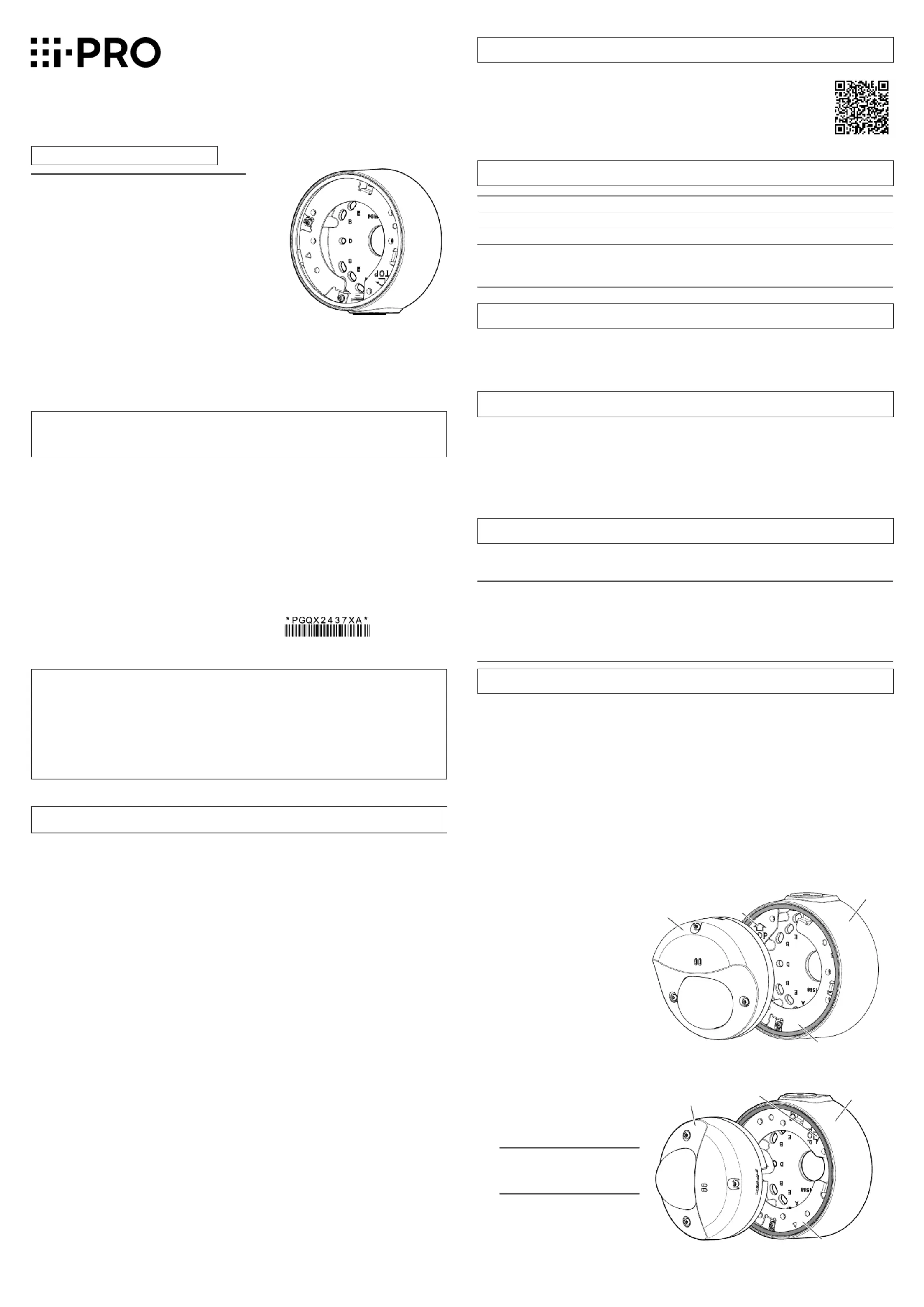

Sivu 1/2
Preface
Mount the camera onto the ceiling or wall using this bracket.
Use this bracket when conduits are used for wiring, or when there is no space
available for wiring in the ceiling or wall.
For the latest information about the supported cameras, refer to our support website
(
https://i-pro.com/global/en/surveillance/training_support/support/technical_information
<Control No.:C0501>
).
Specifications
Ambient operating temperature: –50 °C to +60 °C {–58 °F to +140 °F}
Dimensions: ø127 mm × 56.5 mm (H) {ø5 inches × 2-7/32 inches(H)}
Mass: Approx. 470 {1.04 lbs}g
Finish: Aluminum die cast
i-PRO white <WV-QJB502-W>
Light gray <WV-QJB502-G>
Precautions for installation
■ In order to prevent injury, the product must be securely mounted to the wall or ceiling
according to the Installation Guide of the camera.
■ Make sure to remove this product if it will no longer be used.
Standard accessories
Operating Instructions (this manual) .......... 1 pc.
The following parts are used during installation procedures.
Other items that are needed (not included)
• Fixing screw Recommended screw M4/4 or 2 pcs.
Minimum pull-out strength 196 N {44 lbf} (per 1 pc.)
Note:
• Select screws according to the material of the location that the camera will be mounted to.
In this case, wood screws and nails should not be used.
• For information about the minimum pull-out strength, refer to our support website
(https://i-pro.com/global/en/surveillance/training_support/support/technical_information
<Control No.: C0120>)
Attachment plate ......................................1 pc.
Fixing screw for camera
(M4×10 mm {13/32inches}) .................... 4 pcs.
(of them, 1 for spare)
Fixing screw for attachment plate
(M3×10 mm {13/32 inches}) ................... 5 pcs.
(of them, 1 for spare)
Cover ....................................................... 1 pc.
Ns1020-2042
© i-PRO Co., Ltd. 2022 Printed in China
Precautions
■ Do not use this bracket except with suitable cameras.
Failure to observe this may cause a drop resulting in injury or accidents.
■ Do not install this product on a place that is greatly infl uenced by wind.
Installation on a place where the wind speed is 60 m/s {approx. 134 mph} or more may cause
a fall of the product resulting in injury or accidents.
■ Refer installation work to the dealer.
Installation work requires technique and experience. Failure to observe this may cause fire,
electric shock, injury, or damage to the product. Be sure to consult the dealer.
■ Do not rub the edges of metal parts with your hand.
Failure to observe this may cause injury.
When using this product, also read the “Precautions” described in the operating instruc-
tions for the camera to be attached.
Operating Instructions
Included Installation Instructions
Base Bracket
Model No.
WV-QJB502-W
WV-QJB502-G
• Before attempting to connect or install this product, please read these instructions carefully and
save this manual for future use.
• T
he external appearance and other parts shown in this manual may differ from the actual
product within the scope that will not interfere with normal use due to improvement of the
product.
i-PRO Co., Ltd. assumes no responsibility for injuries or property damage resulting
from failures arising out of improper installation or operation inconsistent with this
documentation.

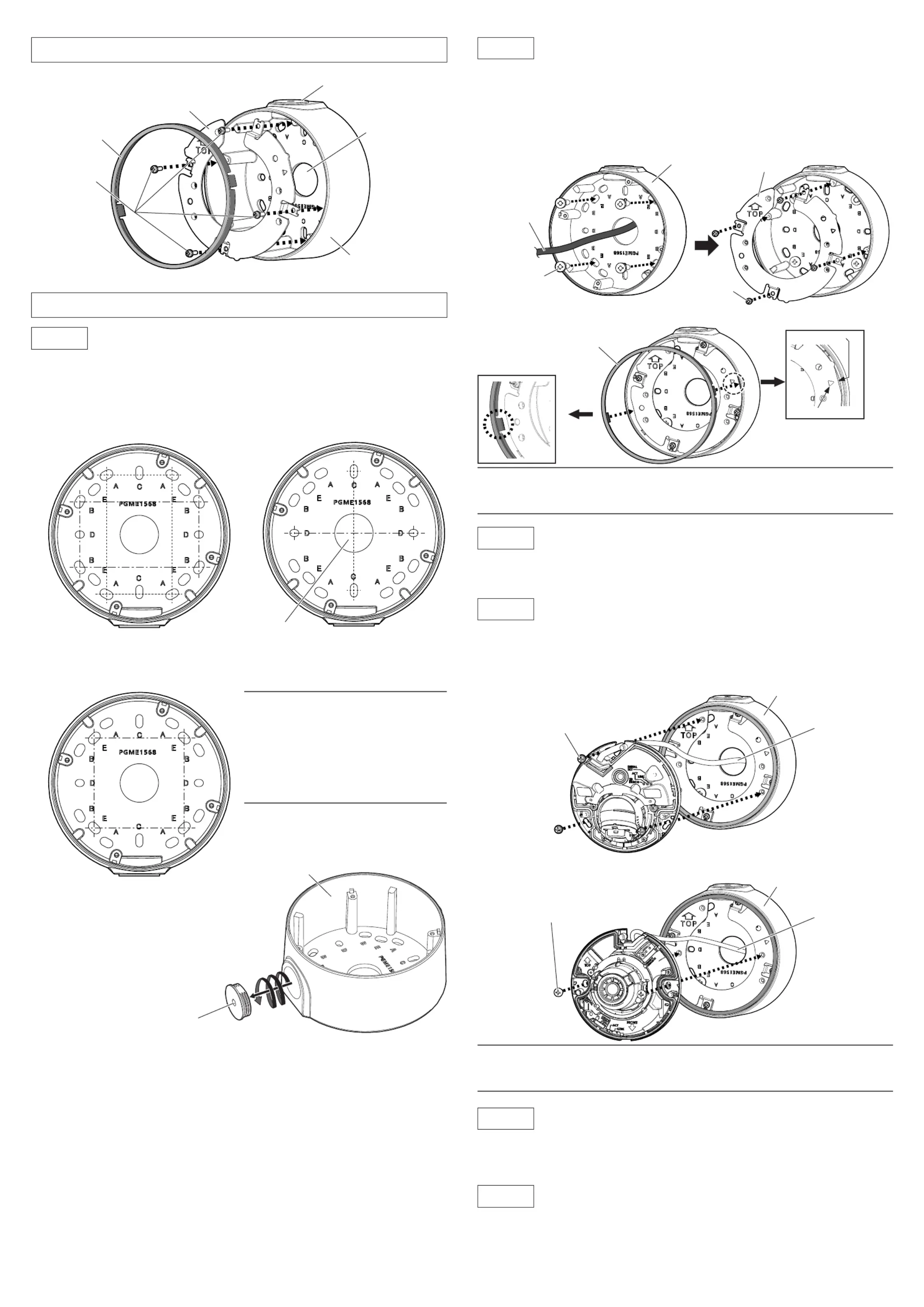

Preparations
[1] Remove the enclosure from the camera.
Refer to the Installation Guide of the corresponding camera for how to remove the enclosure
from the camera.
[2] Check the installation direction of the conduit and the image
capturing direction of the camera
Check the connection direction of the conduit (direction of the cable access hole for conduit
on this bracket) and the image capturing direction of the camera and then determine the
fixing position of the attachment plate. The fixing position of the attachment plate can be
changed with steps of 90°. The following is an example of the camera direction and the
fixing position of the attachment plate when connecting the conduit from the upper side.
<When the image capturing direction is downward>
Caution:
• Before attempting to connect or operate
this product, please read these instructions
carefully.
Notice:
• This product is not suitable for use in loca-
tions where children are likely to be present.
• Do not install this product in locations
where ordinary persons can easily reach.
• For information about screws and other
parts required for installation, refer to the
corresponding section of this document.
<When the image capturing direction is left side>
Camera
Base bracket
⇧TOP mark
Attachment plate
• Align the direction of the attach-
ment plate so that the “ TOP” ⇧
mark of the attachment plate
comes to the upper side.
• Align the direction of the attach-
ment plate so that the “ TOP” ⇧
mark of the attachment plate
comes to the right side.
Note:
• The connection cable is
omitted in the illustration.
Camera
⇧TOP mark
Attachment plate
Base bracket
For U.S. and Canada:
i-PRO Americas Inc.
For Europe and other countries:
i-PRO EMEA B.V.
https://www.i-pro.com/
