Havis ASS60121A Käyttöohje

Lue alta 📖 käyttöohje suomeksi merkille Havis ASS60121A (1 sivua) kategoriassa Ei luokiteltu. Tämä opas oli hyödyllinen 40 henkilölle ja sai 4.9 tähden keskimäärin 6 käyttäjältä

106.99

4.21

102

4.02

221.29

8.71

AA

INCLUDED ADHESIVE PAD

LOCKING, QUICK RELEASE TAB PROVIDES

ABILITY TO REMOVE BACKPLATE

REMOVEABLE COVER

COMPATIBLE WITH ENS BACKPLATES

(SOLD SEPARATELY)

35°

188.80

7.43

125.25

4.93

INCORPORATED

HANDLE

75

2.95

75

2.95

4X

7.20

.28

34.68

1.37

SECTION A-A

4X CLEARANCE HOLES FOR

MOUNTING SCREWS

(CUSTOMER PROVIDED)

CABLE ROUTING

CUTOUT/CHANNEL

VIEW SHOWN WITHOUT

CABLE COVER

D

C

B

A

A

B

C

D

1

2

3

4

5

6

7

8

8

7

6

5

4

3

2

1

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF

HAVIS AND REPRODUCTION IN PART OR IN WHOLE WITHOUT

THE WRITTEN PERMISSION

OF IS PROHIBITED. HAVIS

DRAWN

DATE

CUSTOMER APPROVAL

(SIGNATURE REQUIRED):

DATE

TITLE

SIZE

B

DWG. NO.

REV.

SHEET 1 OF 1

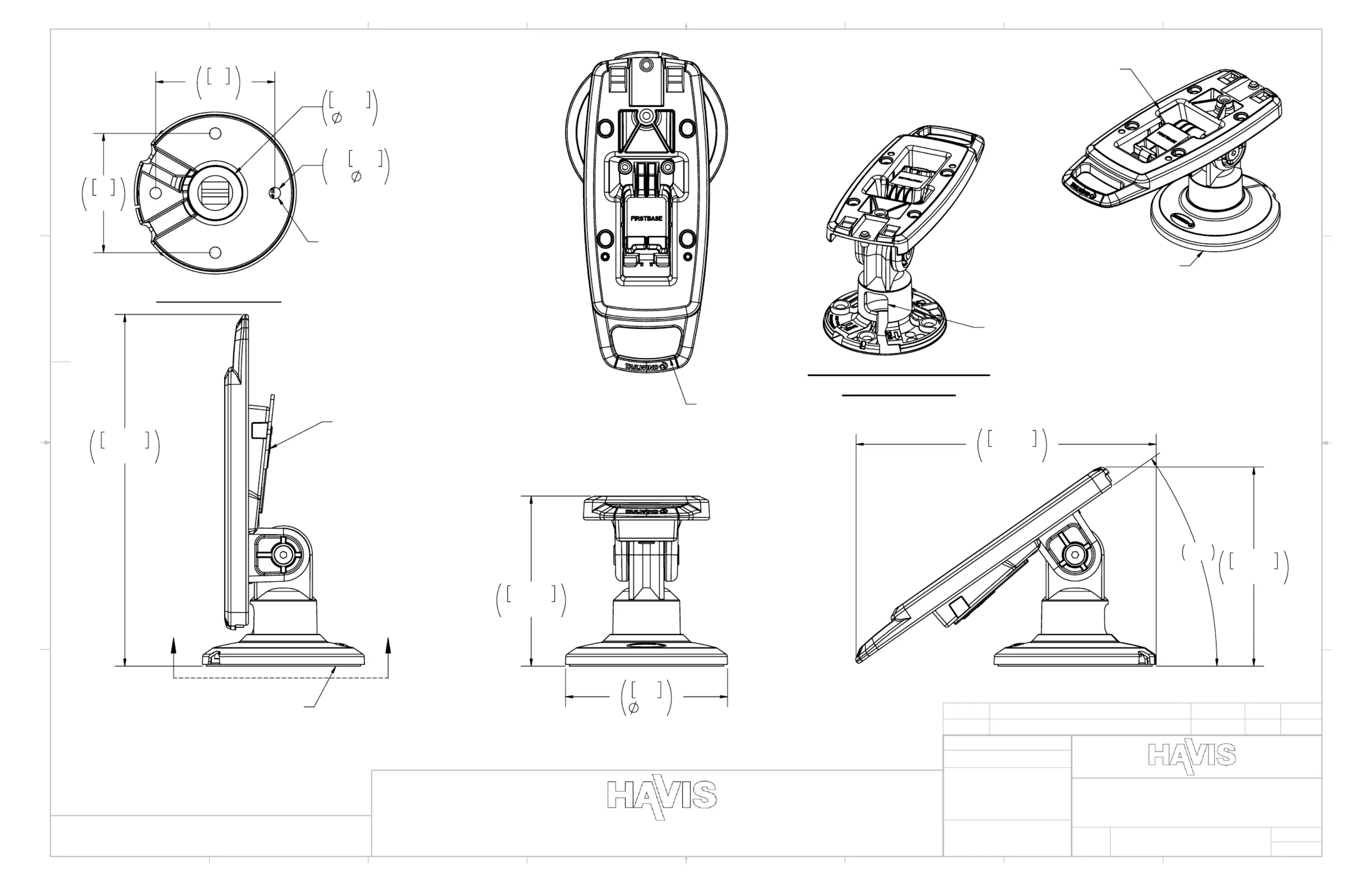

FLEXIPOLE SAFEBASE COMPACT STAND,

SPLIT CABLE CHANNEL

ASS60121A

02/27/2020

A.NORLING

REV.DESCRIPTIONDATE BY CHK'D

A

A

RELEASED FOR PRODUCTION

02/27/20

AN

AN

CUSTOMER VERIFICATION AND AUTHORIZATION
