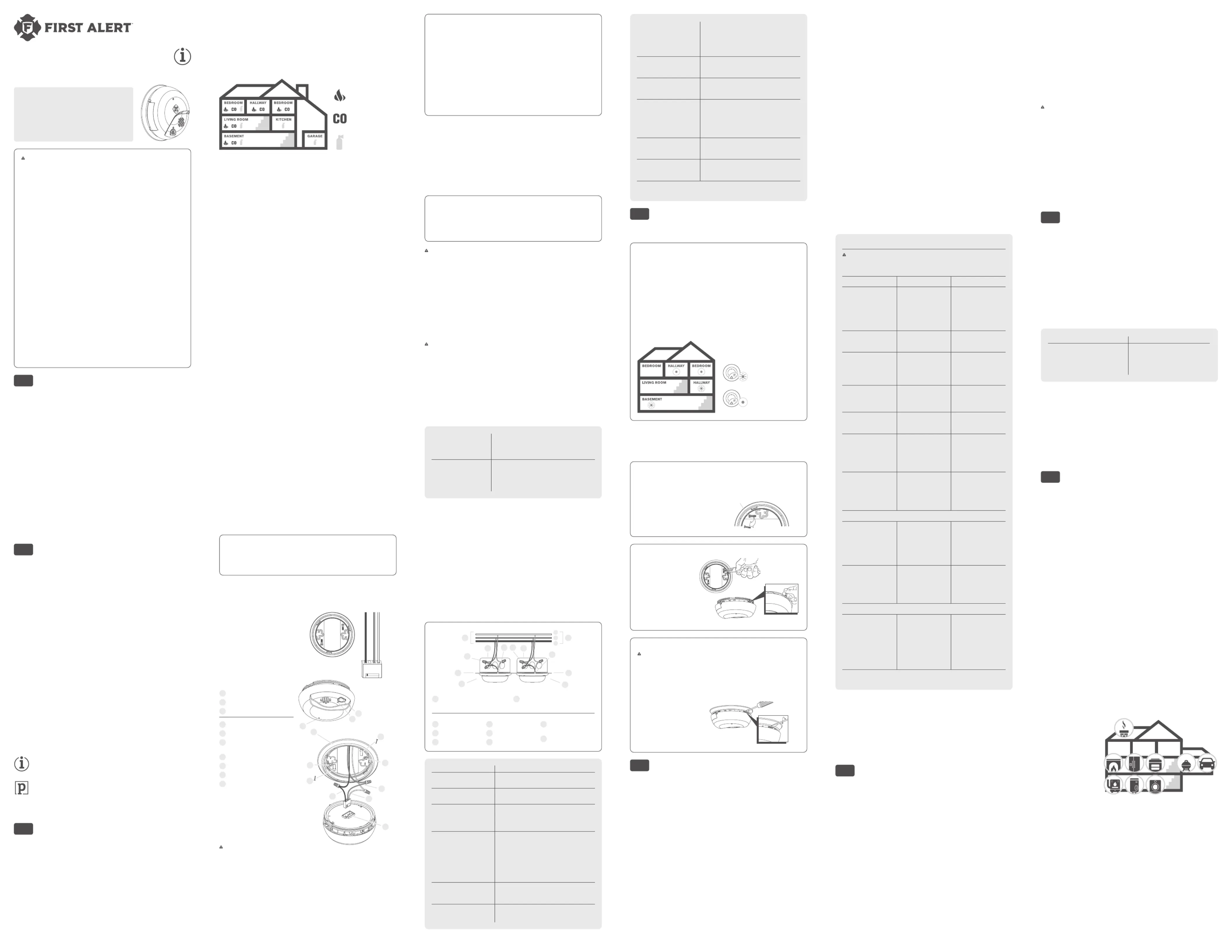

USER’S MANUAL

SMOKE & CARBON MONOXIDE ALARM

AC POWERED WITH 10-YEAR BATTERY BACKUP

Model SMICO105-AC

IMPORTANT! PLEASE READ CAREFULLY AND SAVE.

The warnings/limitations card and manual contains important

information about your Smoke Alarm’s operation. If you are

installing this Alarm for use by others, you must leave this

manual—or a copy of it—with the end user.

Para el manual del usuario en español, por favor

visite rstalert.com

DANGER!

ELECTRICAL SHOCK HAZARD. Turn off the power to the area where the Smoke Alarm is

installed before removing it from the mounting bracket. Failure to turn off the power

rst may result in serious electrical shock, injury or death.

! WARNING!

• This unit will not alert hearing impaired residents. It is recommended that you

install special units which use devices like ashing strobe lights to alert hearing

impaired residents.

• Installation of this unit must conform to the electrical codes in your area; Articles 210

and 300.3 (B) of NFPA 70 (NEC), NFPA 72, NFPA 101; ICC; SBC (SBCCI); UBC (ICBO); NBC

(BOCA); OTFDC (CABO), and any other local or building codes that may apply. Wiring and

installation must be performed by a licensed electrician. Failure to follow these guidelines

may result in injury or property damage.

• This unit must be powered by a 24-hour, 120V AC pure sine wave 60 Hz circuit. Be sure

the circuit cannot be turned off by a switch, dimmer, or ground fault circuit interrupter.

Failure to connect this unit to a 24-hour circuit may prevent it from providing constant

protection. Unit may be connected to an arc fault circuit interrupter.

• This Smoke Alarm must have AC or battery power to operate. If the AC power fails, battery

back-up will allow the Alarm to sound for at least 4 minutes. If AC power fails and the

battery is weak, protection should last for up to 7 days. If AC power fails and the battery is

dead or missing, the Alarm cannot operate.

• Never disconnect the power from an AC powered unit to stop an unwanted Alarm. Doing

so will disable the unit and remove your protection. In the case of a true unwanted Alarm

open a window or fan the smoke away from the unit. The Alarm will reset automatically

when it returns to normal operation.

• Never remove the batteries from a battery operated unit to stop an unwanted Alarm

(caused by cooking smoke, etc.). Instead open a window or fan the smoke away from the

unit. The Alarm will reset automatically.

! CAUTION!

• Connect this unit ONLY to other compatible units. See “How To Install This Smoke Alarm”

for details. Do not connect it to any other type of Alarm or auxiliary device. Connecting

anything else to this unit may damage it or prevent it from operating properly.

• The battery compartment resists closing unless a battery is installed. This warns you the

unit will not operate under DC power without a battery.

• Do not paint over the unit. Paint may clog the openings to the sensing chamber and

prevent the unit from operating properly.

INTRODUCTION

Thank you for choosing First Alert

for your Smoke and Carbon Monoxide Alarm needs. You have

purchased a state-of-the-art Smoke & Carbon Monoxide Alarm designed to help provide you with early

warning of a smoke and/or carbon monoxide danger. Please take the time to read this manual and

make the Smoke & Carbon Monoxide Alarm an integral part of your family’s safety plan.

BASIC SAFETY INFORMATION

IMPORTANT!

• Dangers, Warnings, and Cautions alert you to important operating instructions or to potentially

hazardous situations. Pay special attention to these items.

• This Smoke Alarm is approved for use in single-family residences. It is designed for NOT

marine or RV use.

! CAUTION!

• The Smoke Alarm will only indicate the presence of smoke that reaches the sensor.

• The Smoke Alarm is not designed to sense gas, heat or ames.

• This carbon monoxide alarm is designed to detect carbon monoxide gas from ANY

source of combustion.

! WARNING!

• This Smoke Alarm cannot operate without working batteries. Removing the batteries for any

reason, removes your protection.

• ignore any Alarm. See “If Your Smoke Alarm Sounds” for more information on how to NEVER

respond to an Alarm. Failure to respond can result in injury or death.

• The Silence Features are for your convenience only and will not correct a problem. See “Using the

Silence Features” for details. Always check your home for a potential problem after any Alarm.

Failure to do so can result in injury or death.

• Test this Smoke Alarm once a week. If the Alarm ever fails to test correctly, have it replaced

immediately! If the Alarm is not working properly, it cannot alert you to a problem.

ABOUT SMOKE ALARMS

TYPES OF ALARMS

All these Smoke Alarms are designed to provide early warning of res if located, installed and cared

for as described in the user’s manual, and if smoke reaches the Alarm. If you are unsure which type of

Smoke Alarm to install, refer the National Fire Protection Association (NFPA) Standard 72 (National Fire

Alarm and Signaling Code) and NFPA 101 (Life Safety Code). National Fire Protection Association, One

Batterymarch Park, Quincy, MA 02269-9101. Local building codes may also require specic units in

new construction or in different areas of the home.

Battery (DC) operated Smoke Alarms: Provide protection even when electricity fails, provided the

batteries are fresh and correctly installed. Units are easy to install, and do not require professional

installation. They do not, however, provide interconnected functionality.

AC powered Smoke Alarms: Can be interconnected so if one unit senses smoke, all units Alarm.

They do not operate if electricity fails.

AC with battery (DC) back-up: will operate if electricity fails, provided the batteries are fresh and

correctly installed. AC and AC/DC units must be installed by a qualied electrician.

Wireless Interconnected Alarms: Offer the same interconnected functionality as with hardwired

Alarms, without wires. Units are easy to install and do not require professional installation. They

provide protection even when electricity fails, provided the batteries are fresh and correctly installed.

Smoke Alarms for solar or wind energy users and battery backup power systems: AC powered

Smoke Alarms should only be operated with true or pure sine wave inverters. Operating this Smoke

Alarm with most batterypowered UPS (uninterruptible power supply) products or square wave or

“quasi sine wave” inverters If you are not sure about your inverter or UPS will damage the Alarm.

type, please consult with the manufacturer to verify.

Smoke Alarms for the hearing impaired: Special purpose Smoke Alarms should be installed for the

hearing impaired. They include a visual Alarm and an audible Alarm horn, and meet the requirements

of the Americans With Disabilities Act. These units can be interconnected so if one unit senses smoke,

all units Alarm.

Smoke Alarms are not to be used with detector guards unless the combination has been evaluated

and found suitable for that purpose.

All First Alert

Smoke Alarms conform to regulatory requirements, including UL217 and are

designed to detect particles of combustion. Smoke particles of varying number and size are

produced in all res.

Ionization technology is generally more sensitive than photoelectric technology at

detecting small particles, which tend to be produced in greater amounts by aming res,

which consume combustible materials rapidly and spread quickly. Sources of these res

may include paper burning in a wastebasket, or a grease re in the kitchen.

Photoelectric technology is generally more sensitive than ionization technology at

detecting large particles, which tend to be produced in greater amounts by smoldering

res, which may smolder for hours before bursting into ame. Sources of these res may

include cigarettes burning in couches or bedding.

For maximum protection, use both types of Smoke Alarms on each level and in every

bedroom of your home.

INSTALLATION

WHERE TO INSTALL THIS ALARM

Minimum coverage for Smoke Alarms, as recommended by the National Fire Protection Association

(NFPA), is one Smoke Alarm on every oor, in every sleeping area, and in every bedroom (See

“Regulatory Information For Smoke Alarms” for details on the NFPA recommendations).

For CO Alarms, the National Fire Protection Association (NFPA) recommends that a CO Alarm

should be centrally located outside of each separate sleeping area in the immediate vicinity of the

bedrooms. For added protection, install additional CO Alarms in each separate bedroom, and on every

level of your home.

NOTE: For added protection, install an additional Smoke/CO Alarm at least 15 feet (4.6 meters) away

from the furnace or fuel burning heat source where possible. In smaller homes or in manufactured

homes where this distance cannot be maintained, install the Alarm as far away as possible from the

furnace or other fuel burning source. Installing the Alarm closer than 15 feet (4.6 meters) will not harm

the Alarm, but may increase the frequency of unwanted Alarms.

IN GENERAL, INSTALL COMBINATION SMOKE AND CARBON MONOXIDE ALARMS:

• On every level of your home, including nished attics and basements.

• Inside every bedroom, especially if people sleep with the door partly or completely closed.

• In the hall near every sleeping area. If your home has multiple sleeping areas, install a unit in each.

If a hall is more than 40 feet (12 meters) long, install a unit at each end.

• At the top of rst-to-second oor stairs.

• At the bottom of the basement stairs.

• For additional coverage, install Alarms in all rooms, halls, and storage areas, where temperatures

normally remain between 40˚ F and 100˚ F (4.4˚ C and 37.8˚ C).

RECOMMENDED PLACEMENT:

Smoke Alarm

One on every level and

in every bedroom

Carbon Monoxide Alarm

One on every level and

in every bedroom

Fire Extinguisher

One on every level, plus

kitchen and garage

• When installing on the wall, the top edge of Smoke Alarms should be placed between 4 inches

(102 mm) and 12 inches (305 mm) from the wall/ceiling line.

• When installing on the ceiling, place the Alarm as close to the center as possible.

• In either case, install at least 4 inches (102 mm) from where the wall and ceiling meet.

NOTE: For any location, make sure no door or other obstruction could keep carbon monoxide or smoke

from reaching the Alarm.

WHERE NOT TO INSTALL THIS ALARM

FOR BEST PERFORMANCE, IT IS RECOMMENDED YOU AVOID INSTALLING SMOKE/CO ALARMS

IN THESE AREAS:

• In garages, furnace rooms, crawl spaces and unnished attics. Avoid extremely dusty, dirty

or greasy areas.

• Where combustion particles are produced. Combustion particles form when something burns.

Areas to avoid include poorly ventilated kitchens, garages, and furnace rooms. Keep units at

least 20 feet (6 meters) from the sources of combustion particles (stove, furnace, water heater,

space heater) if possible. In areas where a 20-foot (6 meter) distance is not possible – in modular,

mobile, or smaller homes, for example – it is recommended the Smoke Alarm be placed as far

from these fuel-burning sources as possible. The placement recommendations are intended

to keep these Alarms at a reasonable distance from a fuel-burning source, and thus reduce

“unwanted” Alarms. Unwanted Alarms can occur if a Smoke Alarm is placed directly next to a

fuel-burning source. Ventilate these areas as much as possible.

• Within 5 feet (1.5 meters) of any cooking appliance. In air streams near kitchens. Air currents can

draw cooking smoke into the smoke sensor and cause unwanted Alarms.

• In extremely humid areas. This Alarm should be at least 10 feet (3 meters) from a shower, sauna,

humidier, vaporizer, dishwasher, laundry room, utility room, or other source of high humidity.

• In direct sunlight.

• In turbulent air, like near ceiling fans or open windows. Blowing air may prevent CO or smoke from

reaching the sensors.

• In areas where temperature is colder than 40˚ F (4.4˚ C) or hotter than 100˚ F (37.8˚ C). These

areas include non-airconditioned crawl spaces, unnished attics, uninsulated or poorly insulated

ceilings, porches, and garages.

• In insect infested areas. Insects can clog the openings to the sensing chamber.

• Less than 12 inches (305 mm) away from uorescent lights. Electrical “noise” can interfere

with the sensor.

• In “dead air” spaces.

AVOIDING DEAD AIR SPACES

“Dead air” spaces may prevent smoke from reaching the Smoke/CO Alarm. To avoid dead air spaces,

follow installation recommendations below.

On ceilings, install Smoke/CO Alarms as close to the center of the ceiling as possible. If this is not

possible, install the Smoke/CO Alarm at least 4 inches (102 mm) from the wall or corner.

For wall mounting (if allowed by building codes), the top edge of Smoke/CO Alarms should be placed

between 4 inches (102 mm) and 12 inches (305 mm) from the wall/ceiling line.

On a peaked, gabled, or cathedral ceiling, install the rst Smoke/CO Alarm within 3 feet (0.9

meters) of the peak of the ceiling, measured horizontally. Additional Smoke/CO Alarms may be required

depending on the length, angle, etc. of the ceiling’s slope. Refer to NFPA 72 for details on requirements

for sloped or peaked ceilings.

HOW TO INSTALL THIS ALARM

IMPORTANT!

This Smoke/CO Alarm is designed to be mounted on any standard wiring junction box up to a 4-inch

(10 cm) size, on either the ceiling or wall (if allowed by local codes). Read “Where to Install This Alarm”

and “Where This Alarm Should Not Be Installed” before you begin installation.

Find the self-adhesive labels included with this Smoke/CO Alarm.

• On each label write in the phone number of your emergency responder (like 911) and a qualied

appliance technician.

• Place one label near the Smoke/CO Alarm, and the other label in the “fresh air” location you plan

to go if the Alarm sounds.

NOTE: A qualied appliance technician is dened as “a person, rm, corporation, or company that

either in person or through a representative, is engaged in and responsible for the installation, testing,

servicing, or replacement of heating, ventilation, air conditioning (HVAC) equipment, combustion

appliances and equipment, and/or gas replaces or other decorative combustion equipment.”

Tools you will need: needle-nose pliers or utility knife, standard athead screwdriver, wire strippers

(for interconnected Alarms)

! WARNING!

Make sure the Alarm is not receiving excessively noisy power. Examples of noisy power could

be major appliances on the same circuit, power from a generator or solar power, light dimmer

on the same circuit or mounted near uorescent lighting. Excessively noisy power may cause

damage to your Alarm.

THE PARTS OF THIS ALARM

The Mounting Bracket: To remove the mounting bracket from the Smoke/CO Alarm base, hold the

Smoke/CO Alarm base rmly and twist the mounting bracket counterclockwise. The mounting bracket

installs onto the junction box. It has a variety of screw slots to t most boxes.

The Power Connector: The power connector

plugs into a power input block on the Alarm. It

supplies the unit with AC power.

• The black wire is “hot.”

• The white wire is neutral.

• The orange wire is used for interconnect.

If you need to remove the power connector,

turn Insert a at POWER OFF rst.

screwdriver blade between the power

connector and the security tab inside the

power input block. Gently pry back the tab

and pull the connector free.

THE PARTS OF THIS SMOKE ALARM

Smoke LED (RED)

Power LED (GREEN)

Test/Silence button

Mounting Bracket

Mounting Slots

Locking Pins

(break out of bracket)

Hot (Black) AC Wire

Neutral (White) AC Wire

Interconnect (Orange) Wire

Quick-Connect Power Connector

FOLLOW THESE SIMPLE STEPS

The basic installation of this

Smoke/CO Alarm is similar whether you

want to install one Alarm, or interconnect

more than one Alarm. If you are

interconnecting more than one Alarm, you

MUST read “Special Requirements for

Interconnected Alarms” below before you

begin installation.

DANGER!

ELECTRICAL SHOCK HAZARD. Turn off power to the area where you will install this unit at the

circuit breaker or fuse box before beginning installation. Failure to turn off the power before

installation may result in serious electrical shock, injury or death.

! WARNING!

Improper wiring of the power connector or the wiring leading to the power connector will cause

damage to the Alarm and may lead to a non-functioning Alarm. All power connections should be done

using wire-nuts.

STAND-ALONE ALARM ONLY:

• Connect the white wire on the power connector to the neutral wire in the junction box.

• Connect the black wire on the power connector to the hot wire in the junction box.

• Tuck the orange wire inside the junction box. It is used for interconnect only.

INTERCONNECTED UNITS ONLY:

Strip off about 1/2" (12 mm) of the plastic coating on the orange wire on the

power connector.

• Connect the white wire on the power connector to the neutral wire (usually white) in

the junction box.

• Connect the black wire on the power connector to the hot wire (usually black) in

the junction box.

• Connect the orange wire on the power connector to the interconnect wire in the junction

box. Repeat for each unit you are interconnecting. Never connect the hot or neutral wires

in the junction box to the orange interconnect wire. Never cross hot and neutral wires

between Alarms.

1. Remove the mounting bracket from the base, and attach it to the junction box.

2. Using wire nuts, connect the power connector to the household wiring.

3. If there’s a battery pull tab, activate the battery back-up by removing the “Pull to Activate Battery

Back-Up” tab. You do no need to open the battery compartment during installation. If battery is not

installed, install battery back-up. Battery back-up cannot work until you install the battery in the

correct position (Match “+” to “+” and “-” to “-”).

4. Plug the power connector into the back of the Alarm.

5. Position the base of the Alarm over the mounting bracket, and turn the Alarm clockwise (right) until

the unit is in place. If wall mounted, adjust unit so words are level.

6. Check all connections.

STAND-ALONE ALARM ONLY:

• If you are only installing one Alarm, restore power to the junction box.

INTERCONNECTED UNITS ONLY:

• If you are interconnecting multiple Alarms, repeat steps 1-6 for each Alarm in the series.

When you are nished, restore power to the junction box.

DANGER!

ELECTRICAL SHOCK HAZARD. Do not restore power until all Alarms are completely installed.

Restoring power before installation is complete may result in serious electrical shock,

injury or death.

7. Turn AC power back on. Under normal operation, the Green power indicator light will

shine continuously.

8. If the Green power indicator light does not light, and TURN OFF POWER TO THE JUNCTION BOX

recheck all connections. If all connections are correct and the Green power indicator still does not

light when you restore the power, the unit should be replaced immediately.

9. Single Station Alarms: Test each Alarm. Press and release the Test/Silence button. The unit will

chirp and then Alarm.

Interconnected Alarms: Press and release the Test/Silence button. The unit will chirp and

then Alarm. All interconnected Alarms should sound. The other Alarms sounding only tests the

interconnect signal between Alarms. It does not test each Alarm’s operation. You must test

each Alarm individually to check if the Alarm is functioning properly.

DANGER!

If any unit in the series does not Alarm during testing, TURN OFF POWER and recheck

connections. If it does not Alarm when you restore power, replace it immediately.

SPECIAL REQUIREMENTS FOR INTERCONNECTED ALARMS

! WARNING!

• Failure to meet any of the above requirements could damage the units and cause them to

malfunction, removing your protection.

• AC and AC/DC Alarms can be interconnected. Under AC power, all units will Alarm when one

senses smoke or CO. When power is interrupted, only the AC/DC units in the series will continue to

send and receive signals. AC powered Alarms will not operate.

Interconnected units can provide earlier warning of a smoke/CO problem than stand-alone units,

especially if the problem starts in a remote area of the dwelling. If any unit in the series senses smoke/

CO, all units will Alarm. To determine which Smoke/CO Alarm initiated an Alarm, refer to the table.

During an Alarm

On Initiating Alarm(s): Red LED(s) ashes

(ash) rapidly

On All Other Alarms: Green LED(s) Constant Green

(AC power), Off (on battery backup), Red LED(s) Off

After an Alarm (Latching)

On Initiating Alarm(s): Smoke Alarm: Red LED(s) On

for 2 seconds/Off for 2 seconds; Red LED(s) CO Alarm:

On for 4 seconds/Off for 4 seconds

On All Other Alarms: Green LED(s) Normal,

Red LED(s) Off

COMPATIBLE INTERCONNECTED UNITS

IMPORTANT!

Interconnect units within a single family residence only. Otherwise all households will experience

unwanted Alarms when you test any unit in the series. Interconnected units will only work if they are

wired to compatible units and all requirements are met. This unit is designed to be compatible with:

First Alert Smoke Alarm Models 7010, 9120, 3120B, 7010B, 7010BSL, 7020B, 7020BSL, 9120B,

SA520, SC7010B, SC7010BV, SC9120B, SM100V-AC, SM300-AC, SM500-AC, SMI100-AC, SMI105-AC

and SM110LED-AC; First Alert Smoke & CO Alarm Models 1039102, 7030BSL, SMCO100V-AC,

SMICO100-AC, SMICO105-AC, and SMCO110LED-AC; First Alert CO Alarm Models CO5120BN and

CO5120PDBN; First Alert Heat Alarm Model HD6135FB; RM4 Relay and SLED177 Strobe when

connected via an RM4 Relay.

INTERCONNECTED UNITS MUST MEET ALL OF THE FOLLOWING REQUIREMENTS:

• A maximum of 18 compatible units may be interconnected (Maximum of 12 Smoke

Alarms) per NFPA 72.

• The same fuse or circuit breaker must power all interconnected units.

• The total length of wire interconnecting the units should be less than 1000 feet (300 meters). This

type of wire is commonly available at Hardware and Electrical Supply stores.

• All wiring must conform to all local electrical codes and NFPA 70 (NEC). Refer to NFPA 72, NFPA

101, and/or your local building code for further connection requirements.

Unswitched 120VAC 60 Hz source

To additional units; Maximum =

18 total (Maximum 12 Smoke Alarms)

Alarm

Ceiling or Wall

Power Connector

Wire Nut

Junction Box

Neutral Wire (White)

Interconnect Wire

(Orange)

Hot Wire (Black)

Action What You Will See & Hear

Normal Operations

Horn: Power LED: Silent; Constant Green;

Smoke/CO LED: Off

Alarm Operating

on Battery Backup

Horn: Power LED: Silent; Flashes Green

every minute; OffSmoke/CO LED:

When You Test the Alarm

Horn: 3 beeps, pause, 3 beeps, followed by, 4 beeps,

pause, 4 beeps; Power LED: Green if AC power to

Alarm is On, Off if Alarm is operating under DC power;

Smoke/CO LED: Flashes Red in sync with horn

Alarm has reached

Low Battery/End of Life

If AC power to Alarm is on OR rst 15 minutes after

AC power is removed

Horn: Power LED: Chirps 5 time every minute; Flashes

Green 2 seconds on/2 seconds off; OffSmoke LED:

After rst 15 minutes if AC power to Alarm is Off

Horn: Power LED: Chirps 5 times every minute;

Flashes Green 5 times every minute; OffSmoke LED:

Low Battery/End of Life

Signal is Silenced

Horn: Silent (for up to 2 days, 14 days total);

Power LED: Steady Green (AC power) or 5 Green

ashes (on battery backup); OffSmoke LED:

If Alarm is Not

Operating Properly

(MALFUNCTION SIGNAL)

Horn: Power LED: 3 chirps every minute; 3

Green Flashes approximately once a minute;

Smoke/CO LED: Off

Smoke is Detected

Horn: 3 beeps, pause, 3 beeps; Power LED: Constant

Green (AC power), Off (on battery backup);

Smoke/CO LED: During Alarm: Flashes Red in sync

with the horn pattern. After Alarm: Flashes Red On for 2

seconds/Off for 2 seconds. Smoke Alarm Latch is now

engaged (See Latching Features section for details)

Smoke Alarm is Silenced

Horn: Power LED: Off (for up to 15 minutes); Constant

Green (AC power), Off (on battery backup);

Smoke/CO LED: Flashes Red;

Smoke is Detected in Another

Interconnected Alarm

Horn: 3 beeps, pause, 3 beeps; Power LED:

Constant Green (AC power), Off (on battery

backup); OffSmoke LED:

Alarm Levels of CO are Detected

Horn: 4 fast beeps, pause, 4 fast beeps; Power LED:

Constant Green (AC power), Off (on battery backup);

Smoke/CO LED: During Alarm: Flashes Red in sync

with the horn pattern. After Alarm: Flashes Red On for

4 seconds/Off for 4 seconds. CO Alarm Latch is now

engaged. (See Latching Features section for details).

CO Alarm is Silenced

Horn: Power LED: Off (for up to 6 minutes); Constant

Green (AC power), Off (on battery backup)

Smoke/CO LED: Flashes Red

CO is Detected in Another

Interconnected Alarm

Horn: 4 fast beeps, pause, 4 fast beeps; Power

LED: Constant Green (AC power), Off (on battery

backup); OffSmoke LED:

NOTE: Without AC Power and running on battery only, Low Battery Latch or Alarm Latch are

only engaged for about 15 minutes to conserve power.

ALARM FEATURES

• 10 Year Battery Backup: For protection during power outages.

• Identies unit that initiated Alarm.Alarm Indicator:

• Add protection in minutesEasy Installation:

LATCHING FEATURES

Alarm Latch is activated after an Alarm is exposed to Alarm levels of smoke or carbon

monoxide. This feature will only work with AC power. See “Special Requirements for

Interconnected Alarms” for signaling.

This feature helps emergency responders, investigators, or service technicians identify which

unit(s) in your home were exposed to Alarm levels of smoke. This can help investigators

pinpoint the source of smoke.

Interconnected Alarms. Latching Alarm Indicator shows which Alarm(s) in the series were

exposed to Alarm levels of smoke. The Latching Alarm Indicator stays ON until you clear it,

so it can alert you to an Alarm that occurred while you were away from home, even though

smoke present in the air has dropped below Alarm levels.

Low Battery Latch is activated when the Alarm is in the “low battery condition”. When this

occurs, the Green LED ashes 2 seconds on, 2 seconds off. This feature is designed to help

you identify which Alarm needs to be replaced.

Latching Alarm

Unit was exposed to

Alarm levels of smoke

Latching Not Activated

Unit was not exposed to

Alarm levels of smoke

“SMART INTERCONNECT” FEATURE

This Alarm includes “Smart Interconnect” which enables the Alarm to be interconnected with other First

Alert

Smoke, Heat, and “Smart Interconnect” CO Alarms. When smoke is detected, all Alarms will sound

the smoke horn pattern. When CO is detected, “Smart Interconnect” Alarms will sound the CO horn pattern.

Alarms that do not have the “Smart Interconnect” feature will remain silent during a CO Alarm.

OPTIONAL LOCKING FEATURE

The optional locking feature is designed to discourage unauthorized removal of the Alarm. It is

not necessary to activate the locks in single-family households where unauthorized removal

is not a concern.

Locking Pin

Tools you will need: Needle-nose pliers or

utility knife, standard athead screwdriver

The locking feature uses a locking pin,

which is molded into the mounting bracket.

Using needle nose pliers or a utility knife,

remove the pin from the mounting bracket.

TO LOCK THE MOUNTING BRACKET

1. Using needle-nose pliers,

detach one locking pin from

mounting bracket.

2. Insert the locking pin into the

lock located opposite from

the battery drawer as shown

in the diagram.

3. When you attach the Alarm

to the mounting bracket, the

locking pin’s head will t into a

notch on the bracket.

TO UNLOCK THE MOUNTING BRACKET

DANGER!

ELECTRICAL SHOCK HAZARD. Turn off the power to the area where the Alarm is

installed before removing it from the mounting bracket. Failure to turn off the power

rst may result in serious electrical shock, injury or death.

! WARNING!

Always discharge the branch circuit before servicing an AC or AC/DC Smoke/CO Alarm.

First, turn off the AC power at the circuit breaker or fuse box. Next, remove the battery

from Smoke/CO Alarms with battery back-up. Finally press and hold the test button.

1. Insert a athead screwdriver

between the mounting bracket

pin and the mounting bracket.

2. Pry the Alarm away from

the bracket by turning both

the screwdriver and the

Alarm counterclockwise (left)

at the same time.

TESTING & MAINTENANCE

WEEKLY TESTING

! WARNING!

• use an open ame of any kind to test this unit. You might accidentally damage or set re NEVER

to the unit or to your home. use vehicle exhaust! Exhaust may cause permanent damage NEVER

and voids your warranty.

• stand close to the Alarm when the horn is sounding. Exposure at close range may be DO NOT

harmful to your hearing. When testing, step away when horn starts sounding.

! CAUTION!

It is important to test this unit every week to make sure it is working properly. Using the test

button is the recommended way to test this Smoke/CO Alarm.

1. Push and release the Test/Silence button on the cover until you hear a “chirp.” The “chirp” marks

the start of the self-test sequence.

2. During testing, you will hear a loud, repeating horn pattern: 3 beeps, pause, 3 beeps, pause, while

the red smoke LED ashes. Then you will hear a loud, repeating horn pattern: 4 beeps, pause, 4

beeps, pause, while the red CO LED ashes.

3. When testing a series of interconnected units you must test each unit individually. Make sure all

units Alarm when each one is tested.

If the Smoke/CO Alarm does not test properly:

1. Make sure the AC power is applied and battery is fresh and installed correctly.

2. Be sure the Alarm is clean and dust-free.

3. Test the unit again.

If the Smoke/CO Alarm is still not working properly, replace it immediately. Refer to the

“Limited Warranty” at the end of this manual.

! WARNING!

If there is still a problem, do not try to x the Alarm yourself. This will void your warranty!

REGULAR MAINTENANCE

! WARNING!

This unit has been designed to be as maintenance-free as possible, but there are a few simple things

you must do to keep it working properly:

• Test it at least once a week.

• Clean the Smoke/CO Alarm at least once a month; gently vacuum the outside of the Smoke/CO

Alarm using your household vacuum’s soft brush attachment. Test the Smoke/CO Alarm. Never use

water, cleaners or solvents since they may damage the unit.

• If the Smoke/CO Alarm becomes contaminated by excessive dirt, dust and/or grime, and cannot be

cleaned to avoid unwanted Alarms, replace the unit immediately.

• If the green power LED ashes 2 times every minute (horn is silent) it means that the Alarm needs

to be cleaned as indicated above. If green LED continues to ash, please call Consumer Support.

• Relocate the unit if it sounds frequent unwanted Alarms. See “Where This Alarm Should Not Be

Installed” for details.

• When the battery back-up becomes weak, the Alarm will “chirp” about 5 times a minute

(the low battery warning). This warning should last 7 days, but you should replace the alarm.

• Protect or cover the alarm when doing any maintenance to home i.e. sanding oors, painting,

drywall patching, etc. to prevent contamination.

! WARNING!

DO NOT spray cleaning chemicals or insect sprays directly on our near the Alarm. paint over DO NOT

the Alarm. Doing so may permanently damage the Alarm.

! WARNING!

• Alarm is supplied with lithium battery (factory locked in battery drawer) that is capable of

providing backup battery function for the recommended life of the Alarm. At low battery or end

of life signal, use tool to cut /disengage the locking pin located at the side of the factory locked

drawer and properly dispose of lithium battery (reference drawing added) and Alarm. DO NOT

REPLACE BATTERY.

• Please dispose of or recycle used batteries properly, following any local regulations. Consult your

local waste management authority or recycling organization to nd an electronics recycling facility

in your area. DO NOT DISPOSE OF BATTERIES IN FIRE. BATTERIES MAY EXPLODE OR LEAK.

IMPORTANT!

Actual battery service life depends on the Smoke Alarm and the environment in which it is installed.

At low battery or end of life signal, use tool to cut/disengage the locking pin located at side of factory

locked drawer and properly dispose of lithium battery and Alarm.

TROUBLESHOOTING GUIDE

DANGER!

ELECTRICAL SHOCK HAZARD. Turn off the power to the area where the Alarm is installed

BEFORE removing it from the mounting bracket or checking any electrical connections!

Failure to turn off the power rst may result in electrical shock, injury or death.

IF THE ALARM... PROBLEM... YOU SHOULD...

Green Power LED is OFF.

Unit will not Alarm when you

press the Test/Silence button.

Unit may not be

receiving any power.

Check the AC power supply.

Make sure the power

connector is securely

attached to the Alarm. Make

sure a fresh 9V battery

is installed to power the

battery back-up*.

Green Power LED ashes ON,

once a minute (horn is silent).

Alarm is not

receiving AC power.

Unit is operating on battery

back-up. Check the

AC power supply.

Horn “chirps” 5 times every

minute and Green Power LED

ashes on for 2 seconds ON/

2 seconds OFF (Low battery

latch is engaged)

Battery is low or missing.

Replace Alarm immediately.

If unit is under warranty,

contact Consumer

Support to process a

warranty replacement.

Horn “chirps” and Green

Power LED ashes 3

times every minute

MALFUNCTION SIGNAL.

Device is not working

properly, and needs

to be replaced.

If unit is under warranty,

contact Consumer

Support to process a

warranty replacement.

Horn “chirps” and Green

Power LED ashes 5

times every minute

END OF LIFE SIGNAL.

Alarm needs

to be replaced.

Immediately

replace the Alarm.

Alarm goes back into

Alarm after you pressed

the Test/Silence button to

silence an Alarm.

Smoke and/or

CO levels are still

potentially dangerous.

Refer to “If Your Smoke/CO

Alarm Sounds” for details

on how to respond to an

Alarm. If anyone is feeling

ill, EVACUATE your home

immediately and call 911.

Power LED ashes Green

2 times every minute.

Alarm requires cleaning.

Clean Alarm then press and

release the test button. See

“Regular Maintenance”

section. If Green LED

continues to ash, contact

Consumer Support.

CARBON MONOXIDE ALARM ONLY

CO Alarm goes back into

Alarm 4 minutes after

you Silence it.

CO levels indicate

a potentially

dangerous situation.

IF YOU ARE FEELING

SYMPTOMS OF CO

POISONING, EVACUATE

your home and call 911

or the Fire Department.

Refer to “If The CO Alarm

Sounds” for details.

CO Alarm sounds frequently

even though no high levels

of CO are revealed in

an investigation.

The CO Alarm may be

improperly located. Refer

to “Where to Install This

Alarm” for details.

Relocate your Alarm. If

frequent Alarms continue,

have home rechecked for

potential CO problems. You

may be experiencing an

intermittent CO problem.

SMOKE ALARM ONLY

Smoke Alarm sounds when

no smoke is visible.

Unwanted Alarm may be

caused by nonemergency

source like cooking smoke.

Silence Alarm using manual

button; clean the Alarm’s

cover with a soft, clean

cloth. If frequent unwanted

Alarms continue, relocate

your Alarm. Alarm may

be too close to a kitchen,

cooking appliance, or

steamy bathroom.

If you have questions that cannot be answered by reading this manual, call the

Consumer Support Team at 1-800-323-9005.

FIRE SAFETY TIPS

Follow safety rules and prevent hazardous situations: 1) Use smoking materials properly. Never smoke

in bed. 2) Keep matches or lighters away from children; 3) Store ammable materials in proper

containers; 4) Keep electrical appliances in good condition and don’t overload electrical circuits;

5) Keep stoves, barbecue grills, replaces and chimneys grease- and debris-free; 6) Never leave

anything cooking on the stove unattended; 7) Keep portable heaters and open ames, like candles,

away from ammable materials; 8) Don’t let rubbish accumulate. Keep Alarms clean, and test them

weekly. Replace Alarms immediately if they are not working properly. Smoke Alarms that do not work

cannot alert you to a re. Keep at least one working re extinguisher on every level, and an additional

one in the kitchen. Have re escape ladders or other reliable means of escape from an upper level in

case stairs are blocked; 9) Have an escape plan and practice it regularly.

IF YOUR SMOKE/CO ALARM SOUNDS

WHAT TO DO FIRST: IDENTIFY THE TYPE OF ALARM SIGNAL

Refer to previous section “What You Will See And Hear With This Alarm”.

! WARNING!

Actuation of your CO Alarm indicates the presence of carbon monoxide (CO) which can kill you. In

other words, when your CO Alarm sounds, you must not ignore it!

IF THE CO ALARM SIGNAL SOUNDS:

1. Press the Test/Silence button.

2. Call your emergency services, re department or 911. Write down the number of your local

emergency service here:

____________________________________________________________________

3. Immediately move to fresh air—outdoors or by an open door or window. Do a head count to check

that all persons are accounted for. Do not re-enter the premises, or move away from the open door

or window until the emergency services responder has arrived, the premises have been aired out,

and your CO Alarm remains in its normal condition.

4. After following steps 1-3, if your CO Alarm reactivates within a 24-hour period, repeat steps

1-3 and call a qualied appliance technician to investigate for sources of CO from fuel-burning

equipment and appliances, and inspect for proper operation of this equipment. If problems are

identied during this inspection have the equipment serviced immediately. Note any combustion

equipment not inspected by the technician, and consult the manufacturers’ instructions, or contact

the manufacturers directly, for more information about CO safety and this equipment. Make sure

that motor vehicles are not, and have not, been operating in an attached garage or adjacent to the

residence. Write down the number of a qualied appliance technician here:

____________________________________________________________________

NOTE: A qualied appliance technician is dened as “a person, rm, corporation, or company that

either in person or through a representative, is engaged in and responsible for the installation, testing,

servicing, or replacement of heating, ventilation, air conditioning (HVAC) equipment, combustion

appliances and equipment, and/or gas replaces or other decorative combustion equipment.”

IF THE SMOKE/CO ALARM SOUNDS:

RESPONDING TO AN ALARM

! WARNING!

• If the unit Alarms and you are not testing the unit, it is warning you of a potentially dangerous

situation that requires your immediate attention. ignore any Alarm. Ignoring the Alarm may NEVER

result in injury or death.

• Never remove the batteries from a battery operated Smoke/CO Alarm to stop an unwanted Alarm

(caused by cooking smoke, etc.). Removing batteries disables the Alarm so it cannot sense smoke,

and removes your protection. Instead open a window or fan the smoke away from the unit. The

Alarm will reset automatically.

• If the unit Alarms get everyone out of the house immediately.

DANGER!

ELECTRICAL SHOCK HAZARD. Do not restore power until all Alarms are completely installed.

Restoring power before installation is complete may result in serious electrical shock,

injury or death.

WHAT TO DO IN CASE OF FIRE

• Don’t panic; stay calm. Follow your family escape plan.

• Get out of the house as quickly as possible. Don’t stop to get dressed or collect anything.

• Feel doors with the back of your hand before opening them. If a door is cool, open it slowly. Don’t

open a hot door. Keep doors and windows closed, unless you must escape through them.

• Cover your nose and mouth with a cloth (preferably damp). Take short, shallow breaths.

• Meet at your planned meeting place outside your home, and do a head count to make sure

everybody got out safely.

• Call the Fire Department as soon as possible from outside. Give your address, then your name.

• Never go back inside a burning building for any reason.

• Contact your Fire Department for ideas on making your home safer.

! WARNING!

Alarms have various limitations. See “General Limitations of Smoke/CO Alarms” for details.

USING THE SILENCE FEATURES

! WARNING!

The Silence Feature does not disable the unit—it makes it temporarily less sensitive to smoke. For

your safety, if smoke around the unit is dense enough to suggest a potentially dangerous situation,

the unit will stay in Alarm or may re-Alarm quickly. If you do not know the source of the smoke, do

not assume it is an unwanted Alarm. Not responding to an Alarm can result in property loss, injury,

or death. If the unit will not silence and no heavy smoke is present, or if it stays in silence mode

continuously, it should be replaced immediately.

Never remove the batteries to quiet an unwanted Alarm. Removing the batteries disables the

Alarm and removes your protection.

• The Silence Feature is intended to temporarily silence the horn while you identify and correct the

problem. Do not use the Silence Feature in emergency situations. It will not correct a CO problem

or extinguish a re.

• The Silence Feature can temporarily quiet an unwanted Alarm for several minutes. You can silence

this Smoke/CO Alarm by pressing the Test/Silence button on the Alarm cover.

Activate the Alarm test, reset or silence function by use of a nger or thumb. Use of any other

instrument is strictly prohibited.

When the Smoke Alarm is Silenced When the CO Alarm is Silenced

The Smoke Alarm will remain silent

for up to 15 minutes, then returns to

normal operation.

If the smoke has not cleared–or continues to

increase–the device will go back into Alarm.

The CO Alarm will remain silent for

up to 6 minutes.

After 6 minutes, if CO levels remain

potentially dangerous the horn will start

sounding again.

TO SILENCE SMOKE ALARMS IN AN INTERCONNECTED SERIES

1. To silence multiple Alarms in an interconnected series, you must press the Test/Silence button on

the unit(s) that initiated the Alarm. The red LED on the initiating Alarm will ash. The red NOTE:

LED will be Off on all other non-initiating Alarms. Once silenced, no audible sound will be heard.

While the unit is in “silence mode”, pressing and holding the Test/Silence button for approximately 10

seconds will test the unit. After testing, the unit will re-enter “silence mode” and the timer is reset.

SILENCING THE LOW BATTERY/END OF LIFE WARNING

This Silence Feature can temporarily quiet the low battery/end of life warning “chirp” for up to 48

hours. Press the Test/Silence button on the Alarm cover until you hear the acknowledge “chirp”.

Once the low battery/end of life warning “chirp” Silence Feature is activated, the unit continues to

ash the green light 5 times every minute for up to 48 hours. Then, the end of life “chirp” will resume.

Replace the unit as soon as possible, to maintain protection in event of a power outage.

WHAT YOU NEED TO KNOW ABOUT CO

WHAT IS CO?

CO is an invisible, odorless, tasteless gas produced when fossil fuels do not burn completely, or are

exposed to heat (usually re). Electrical appliances typically do not produce CO.

These fuels include: Wood, coal, charcoal, oil, natural gas, gasoline, kerosene, and propane.

Common appliances are often sources of CO. If they are not properly maintained, are improperly

ventilated, or malfunction, CO levels can rise quickly. CO is a real danger now that homes are more

energy efcient. “Air-tight” homes with added insulation, sealed windows, and other weatherproong

can “trap” CO inside.

SYMPTOMS OF CO POISONING

These symptoms are related to CO POISONING and should be discussed with ALL household members.

Mild Exposure: Slight headache, nausea, vomiting, fatigue (“u-like” symptoms).

Medium Exposure: Throbbing headache, drowsiness, confusion, fast heart rate.

Extreme Exposure: Convulsions, unconsciousness, heart and lung failure. Exposure to carbon

monoxide can cause brain damage, death.

IMPORTANT!

This CO Alarm measures exposure to CO over time. It Alarms if CO levels are extremely high in a

short period of time, or if CO levels reach a certain minimum over a long period of time. The CO

Alarm generally sounds an Alarm before the onset of symptoms in average, healthy adults. Why is

this important? Because you need to be warned of a potential CO problem while you can still react in

time. In many reported cases of CO exposure, victims may be aware that they are not feeling well, but

become disoriented and can no longer react well enough to exit the building or get help. Also, young

children and pets may be the rst affected. The average healthy adult might not feel any symptoms

when the CO Alarm sounds. However, people with cardiac or respiratory problems, infants, unborn

babies, pregnant mothers, or elderly people can be more quickly and severely affected by CO. If you

experience even mild symptoms of CO poisoning, consult your doctor immediately!

FINDING THE SOURCE OF CO AFTER AN ALARM

Carbon monoxide is an odorless, invisible gas, which often makes it difcult to locate the source of CO

after an Alarm. These are a few of the factors that can make it difcult to locate sources of CO:

• House well ventilated before the investigator arrives.

• Problem caused by “backdrafting.”

• Transient CO problem caused by special circumstances.

Because CO may dissipate by the time an investigator arrives, it may be difcult to locate the

source of CO. First Alert shall not be obligated to pay for any carbon monoxide investigation

or service call.

POTENTIAL SOURCES OF CO IN THE HOME

Fuel-burning appliances like:

portable heater, gas or wood

burning replace, gas kitchen range

or cooktop, gas clothes dryer.

Damaged or insufcient venting:

corroded or disconnected water

heater vent pipe, leaking chimney

pipe or ue, or cracked heat

exchanger, blocked or clogged

chimney opening.

Improper use of appliance/

device: operating a barbecue grill

or vehicle in an enclosed area (like

a garage or screened porch).

Transient CO problems: “transient” or on-again-off-again CO problems can be caused by outdoor

conditions and other special circumstances.

The following conditions can result in transient CO situations:

1. Excessive spillage or reverse venting of fuel appliances caused by outdoor conditions such as:

Wind direction and/or velocity, including high, gusty winds. Heavy air in the vent pipes (cold/humid air

with extended periods between cycles).

• Negative pressure differential resulting from the use of exhaust fans.

• Several appliances running at the same time competing for limited fresh air.

• Vent pipe connections vibrating loose from clothes dryers, furnaces, or water heaters.

• Obstructions in or unconventional vent pipe designs which can amplify the above situations.

2. Extended operation of unvented fuel burning devices (range, oven, replace).

3. Temperature inversions, which can trap exhaust close to the ground.

4. Car idling in an open or closed attached garage, or near a home.

These conditions are dangerous because they can trap exhaust in your home. Since these

conditions can come and go, they are also hard to recreate during a CO investigation.

Tuotetiedot

Merkki:	First Alert
Kategoria:	Palovaroitin
Malli:	SMICO105-AC

Tarvitsetko apua?

Jos tarvitset apua merkille First Alert SMICO105-AC esitä kysymys alla ja muut käyttäjät vastaavat sinulle

Nimesi*

Sähköpostisi*

Kirjoita kysymyksesi tähän

Palovaroitin First Alert Käyttöohjeet

First Alert SMICO105-AC Käyttöohje

24 Helmikuuta 2025

First Alert SMICO110 Käyttöohje

24 Helmikuuta 2025

First Alert SMI100 Käyttöohje

24 Joulukuuta 2024

First Alert SMI105-AC Käyttöohje

24 Joulukuuta 2024

First Alert SMI100-AC Käyttöohje

24 Joulukuuta 2024

First Alert SM210 Käyttöohje

24 Joulukuuta 2024

First Alert SMICO100-AC Käyttöohje

27 Lokakuuta 2024

First Alert SMCO100V-AC Käyttöohje

27 Lokakuuta 2024

First Alert SMCO210V Käyttöohje

27 Lokakuuta 2024

First Alert SMCO210 Käyttöohje

27 Lokakuuta 2024

Palovaroitin Käyttöohjeet

Viimeisimmät Palovaroitin Käyttöohjeet

Hochiki SOC-24V Käyttöohje

26 Helmikuuta 2025

Hochiki ALN-V Käyttöohje

26 Helmikuuta 2025

Hochiki ACC-V Käyttöohje

26 Helmikuuta 2025

Hochiki HCA-4 Käyttöohje

26 Helmikuuta 2025

Drayton CCT599002 Käyttöohje

20 Helmikuuta 2025

Logilink SC0016 Käyttöohje

29 Tammikuuta 2025

DSC PG9933 Käyttöohje

25 Tammikuuta 2025

X-Sense XS01-WX Käyttöohje

18 Tammikuuta 2025

Smartwares FSM-12800 Käyttöohje

12 Tammikuuta 2025

FireAngel ST-630-DE Käyttöohje

29 Joulukuuta 2024
