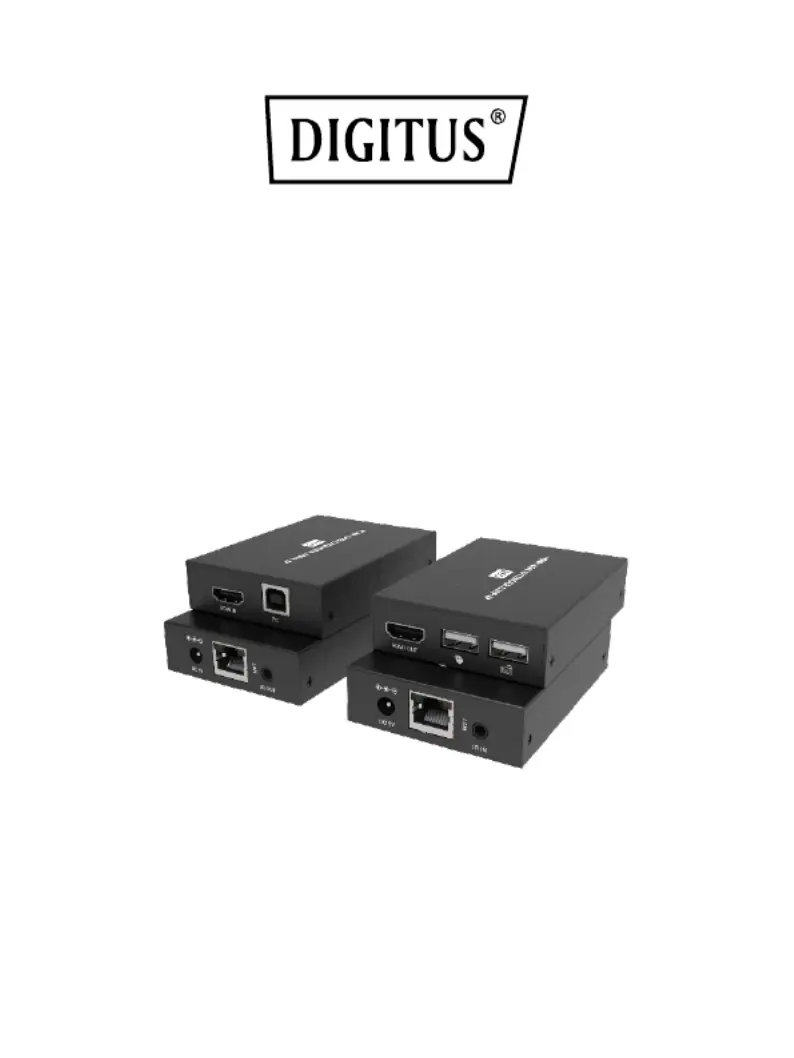

Sivu 1/11
HDMI KVM IP
Extender Set
Manual
DS- 75550
Table of Contents
1. Introduction ............................................................................ 2
2. Main Features ......................................................................... 3
3. Package Contents .................................................................... 3
4. Specification ............................................................................ 4
5. Operating Controls and Functions ............................................ 6
5.1 Encoder Panel ........................................................................ 6
5.2 Decoder Panel ........................................................................ 7
6.
Application Example ................................................................ 8
1. Introduction
The HDMI KVM IP Extender Set comprises a transmitter unit
(positioned locally) as well as a receiver unit (positioned at a distance).
The HDMI signal can be extended using a network cable (Cat5e, CAT 6,
CAT 6A, CAT 7) up to a maximum distance of 150 m (point- -to point
connection). The HDMI signal can also be extended to an unlimited
distance using the existing network infrastructure or using standard IP
network switches (IP connection). The highest supported video
resolution is Full HD (1920x1200/60 Hz, 4:4:4). The set also enables
convenient access to a computer (mouse and keyboard) using the USB
ports on the receiver unit. The set is perfectly suited for industrial,
commercial and public sector applications.
2. Main Features
Extends the maximum length for HDMI cables to up to 150 m
via a simple network cable
Extension of the signal (unlimited distance) via the
existing local network infrastructure or commercial network
switches (IP connection)
Supports video resolutions up to: Full HD
(1920x1200/60 Hz, 4:4:4)
KVM functionality for connection to mouse and keyboard
Supports Cat5e, CAT 6, CAT 6A, CAT 7, CAT 8 network cable
IR transmission
Compact design for easy and flexible installation
Sturdy metal housing
3. Package Contents
1x Transmitter unit
1x Receiver unit
1x IR transmission cable (1.5 m)
1x IR receiver cable (1.5 m)
2 5 x Power adapter (DC V/1A, 1.5 m)
1x USB-B- A cable (1.5 m)
1x User manual
