Sivu 1/16

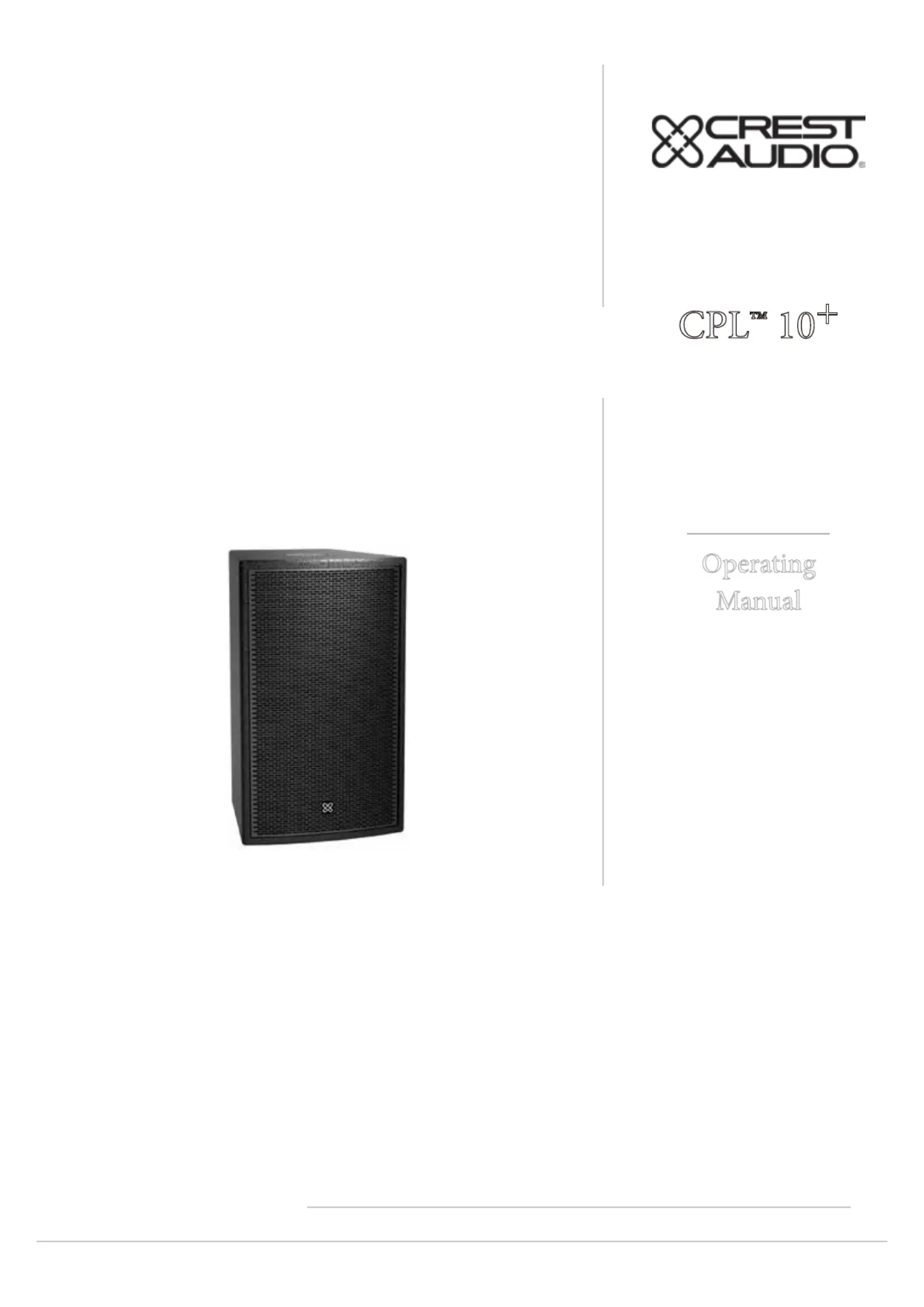

www.crestaudio.com
Passive 2-way
Loudspeaker System
Operating
Manual
CPL™ 10+
Dealer Name:
Serial Number:
Date of Purchase:
Model Number or Name:
1
Features
• Compact passive two-way loudspeaker
• Premium 10” woofer, 2.5“ voice coil
• 1” Compression driver, 1.4“ voice coil
• Continuous power handling: 300 Watts
• Nominal impedance: 8 Ohms
• Coverage pattern (HxV): 90° x 60° (Rotatable Horn)
• Connectors: 2 x 4-pin twist-lock & 4-pin Euroblock
• 2+/2- Loop rough
• Advanced crossover network
• Tweeter protection
• 15 mm Plywood construction
• Textured polyurea paint
• 12 x M8 suspension points (3 top, 3 bottom, 2 each side, 2 rear)
• 4 x M6 suspension points for Peavey® Versamount™ 35
• Available in Black and White
e Crest Audio CPL 10+ is a compact passive two-way loudspeaker designed for music playback, public address
and live performance reinforcement applications where space is at a premium.
e CPL 10+ can be utilized for both permanent installations and portable live sound applications. Perfect for
public address, monitoring and background audio reinforcement purposes typically required in houses of
worship, clubs, bars/restaurants, retail outlets plus education and corporate meeting facilities or anywhere high
quality discrete audio distribution is required.
e CPL 10+ is equipped with a premium 10 inch woofer having a 2.5 inch voice coil together with a 1 inch exit
compression driver known for its smooth frequency response and non-fatiguing mid range. Directivity pattern of
the loudspeaker is measured at 90° horizontal and 60° vertical providing a wide yet well controlled audio coverage.
An internal advanced crossover network maintains EQ and driver protection. Impedance of the loudspeaker is 8
Ohms allowing for easy daisy chaining. Connectivity is made via either looping 4-pin twist-lock or 4-pin
Euroblock connectors.
e CPL 10+ enclosure is built from prime-grade 15 mm plywood that oers sturdy mechanical and low resonant
electro-acoustic characteristics together with a heavy-duty steel grille backed with acoustic foam to ensure
maximum protection of the internal components. e loudspeaker is equipped with a total of 16 threaded
suspension points oering multiple mounting options for various applications. Available in durable black and
white nish.
Crest Audio® CPL™ 10+
DESCRIPTION EN
