Sivu 1/3

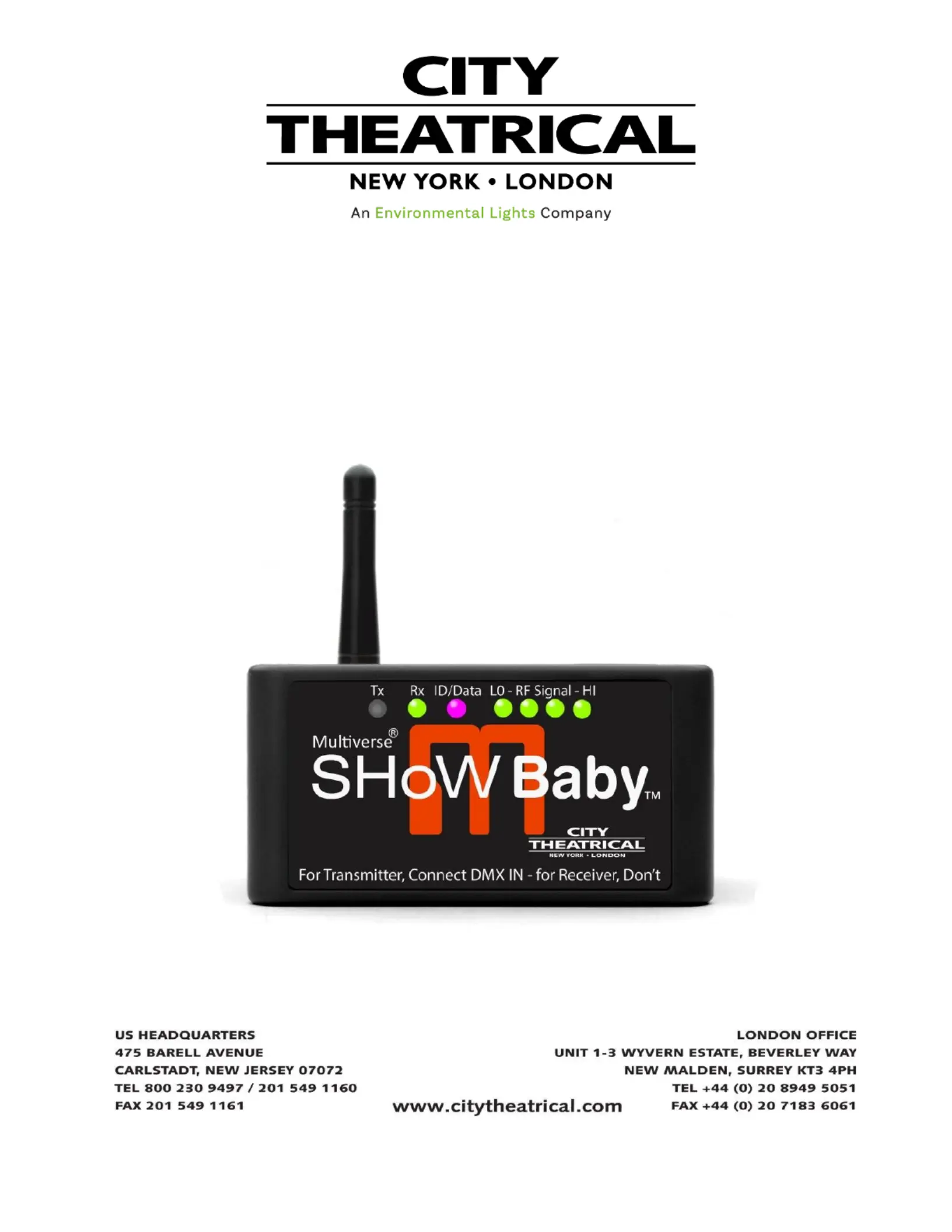

Multiverse
®
SHoW Baby
®
P/N 5900
User’s Manual
Rev 6 1.
© 2024 City Theatrical
Multiverse SHoW Baby Transceivers are covered by U.S. Patent # 7,432,803 and other patents pending.
Made in USA
Page 2 of 15
Table of Contents
Compliance .................................................................................................................................3
Safety Notices .............................................................................................................................4
Introduction .................................................................................................................................5
Multiverse SHoW Baby Settings ..............................................................................................5
Multiverse SHoW Baby Antennas ............................................................................................6
Setup Operation and ...................................................................................................................6
Transmitter Setup ....................................................................................................................6
Receiver Setup ........................................................................................................................7
RDM Operation ...........................................................................................................................7
Multiverse SHoW Baby Advanced Setup .................................................................................8
Installing the Mounting Bracket ................................................................................................9
Specications ..........................................................................................................................9
What’s Included ..................................................................................................................... 11
List of Tables
Table 1: Setting SHoW ID by Color .............................................................................................5
Table 2: SHoW IDs and SHoW Keys 8 ..........................................................................................
Table 3 Physical Characteristics : ................................................................................................9
Table 4: Multiverse SHoW IDs .................................................................................................. 12
Table 5: SHoW DMX Neo SHoW IDs ........................................................................................ 13
Table 6: Troubleshooting Guide ................................................................................................ 15
List of Figures
Figure 1: Multiverse SHoW Baby Front and Rear View Diagrams ...............................................6
Figure 2: Attaching the Mounting Bracket ....................................................................................8
Figure 3: What’s Included .........................................................................................................11
Page 3 of 15
Compliance
FCC Compliance Statement (United States)
This device complies with Part 15 of the Federal Communications Commission (FCC) Rules. Operation is
subject to the following two conditions:
1.
This device may not cause harmful interference.
2.
This device must accept any interference received, including interference that may
cause undesired operation.
CAUTION:
Changes or modications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.
IC Statement
This device co -exempt RSSs. Operation is subject to the mplies with Industry Canada’s license
following two conditions:
1.
This device may not cause interference; and
2.
This device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
1.
l’appareil ne doit pas produire de brouillage, et
2.
l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
CE Mark Conformity
City Theatrical Inc. declares that this product conforms to the specications listed in this manual,
following the provisions of the European RED Directive 2014/53/EU, EMC Directive 2014/30/EU,
and Low Voltage Directive 2014/35/EU:
City Theatrical Inc. vakuuttaa täten että dieses produkt tyyppinen laite on direktiivin 2014/53/EU,
2014/30/EU, 2014/35/EU oleellisten vaatimusten ja sitä koskevien näiden direktiivien muiden
ehtojen mukainen.
City Theatrical Inc. déclare que le produit est conforme aux conditions essentielles et aux
dispositions relatives à la directive 2014/53/EU, 2014/30/EU, 2014/35/EU.
□
EN 301 489-1, 301 489-18 General EMC requirements for Radio equipment
□
EN 62832-1 Safety
□
EN 300 328 Technical requirements for Radio equipment
□
EN 55032, EN 55103-2
CAUTION This equipment is intended to be used in all EU and EFTA countries. Outdoor use may —
be restricted to certain frequencies and/or may require a license for operation. Contact local
Authority for procedure to follow.
Note: ESD precautions should be used when attaching or removing the antenna.
Note: Combinations of power levels and antennas resulting in a radiated power level of above 100 mW
equivalent isotropic radiated power (EIRP) are considered as not compliant with the above mentioned directive
and are not allowed for use within the European community and countries that have adopted the European
R&TTEdirective 2014/53/EU, 2014/30/EU, 2014/35/EU. For more details on legal combinations of power levels
and antennas, contact City Theatrical Inc.
Do not use this product near water, for example, in a wet basement or near a swimming pool.
Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.
