INSTALLATION INSTRUCTIONS
Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes
no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use
of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or
implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
Chief Manufacturing, a products division of Milestone AV Technologies
8401 Eagle Creek Parkway, Savage, MN 55378
• P: 800.582.6480 / 952.894.6280 • F:877.894.6918 / 952.894.6918
8802-002051 Rev00
©2009 Milestone AV Technologies,
a Duchossois Group Company
12/09

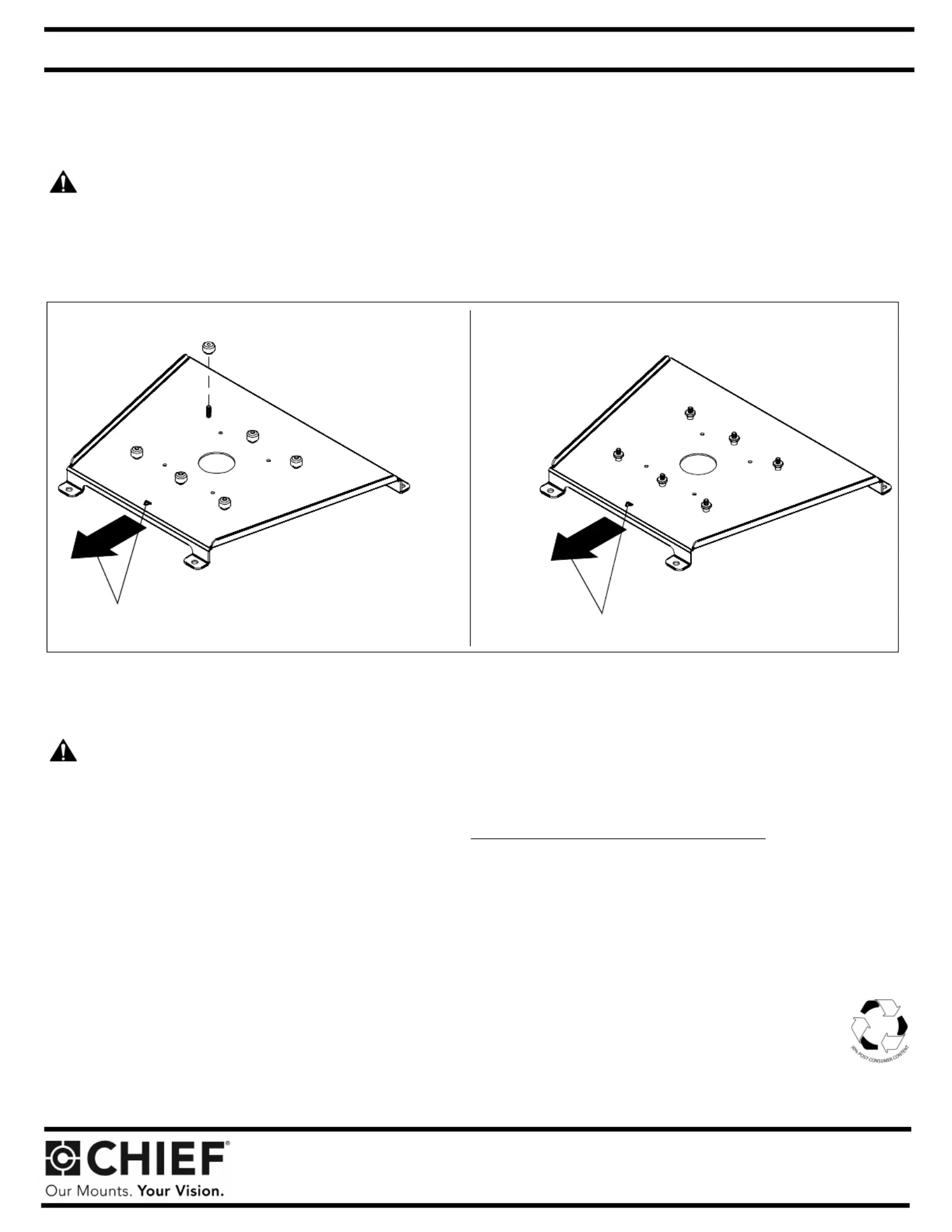

SLB-255 and SLM-255 Interface Brackets
SLB-255 and SLM-255 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific installation instructions
provided with the mount for additional installation information.
Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.
WARNING:IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!
Installation Instructions
WARNING:OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUIPMENT! DO NOT over tighten screws when installing interface brackets.
NOTE:Step 1 is only required when installing an SLB interface bracket. If an SLM bracket is being installed, proceed to step 2.
1.Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
2.Turn projector upside down on a flat surface.
3.Place the interface bracket onto the bottom of the projector, aligning the mounting holes in the bracket with the threaded inserts in the
bottom of the projector and ensuring that triangle in bracket points towards front of projector.
4.Position four M6 x 10mm mounting screws with four M6 flat washers into the threaded inserts. Tighten all fasteners at this time, securing
the bracket to the projector.
NOTE:Security screws can be substituted when mounting Interface bracket to projector by using the parts and installation instructions in the
All-Points Security Kit.
Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.
(1) Interface Bracket(4) Screw, Phillips Pan Head, Machine, M6 x 10mm
(6) 10-24 Thumb Nuts **(4) Washer, M6
(1) All-Points Security Kit(1) 5/32" Security Hex Key
**Only used when installing SLB interface brackets.
SLB-255
SLM-255
Towards front
of projector
Towards front
of projector
