Installation Instructions

1.Determine where the speaker(s) will be mounted. Ensure power is not connected to speaker wires prior to installation.

Follow all local safety and building codes and route speaker wires to desired wall or ceiling location. Pull approximately

12" of wire through opening in mounting surface.

2.Pull speaker wire through the back of the large opening of the speaker enclosure. Using the supplied mounting hardware,

secure the enclosure to the mounting surface. Note that two toggle bolts (for sheet rock surfaces) and two wood screws

(for securing to solid wood/beams) have been included. Utilize the two washers (supplied) as shown in Figure 1with either

toggle bolts, wood screws, or other user supplied hardware.

MB8TSL, MB8TSQ, MB8TSLVR, MB8TSQVR

70V/25V Metal Box Speakers

For Surface Mounting to Walls and Ceilings

© 2005 Bogen Communications, Inc.

Specifications subject to change without notice.

54-2135-01C 0809

Use two of the enclosure’s mounting

holes as a template (diagonally

opposed), and mark screw hole

locations. If toggle bolts will be

used, drill two, 1/2" diameter holes

in the mounting surface, otherwise

drill a hole appropriate for hardware

being used.

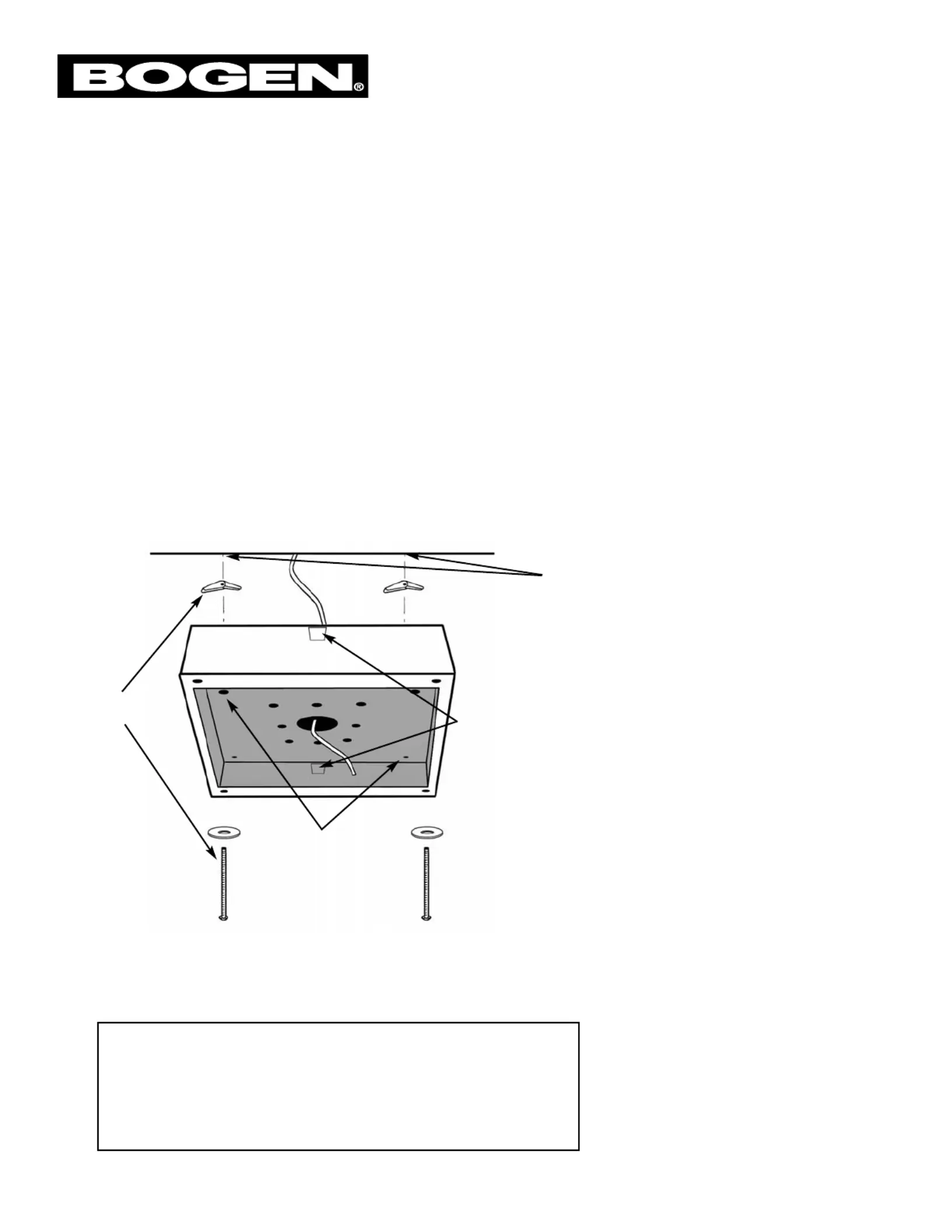

Figure 1- Sheet rocked ceiling mount example

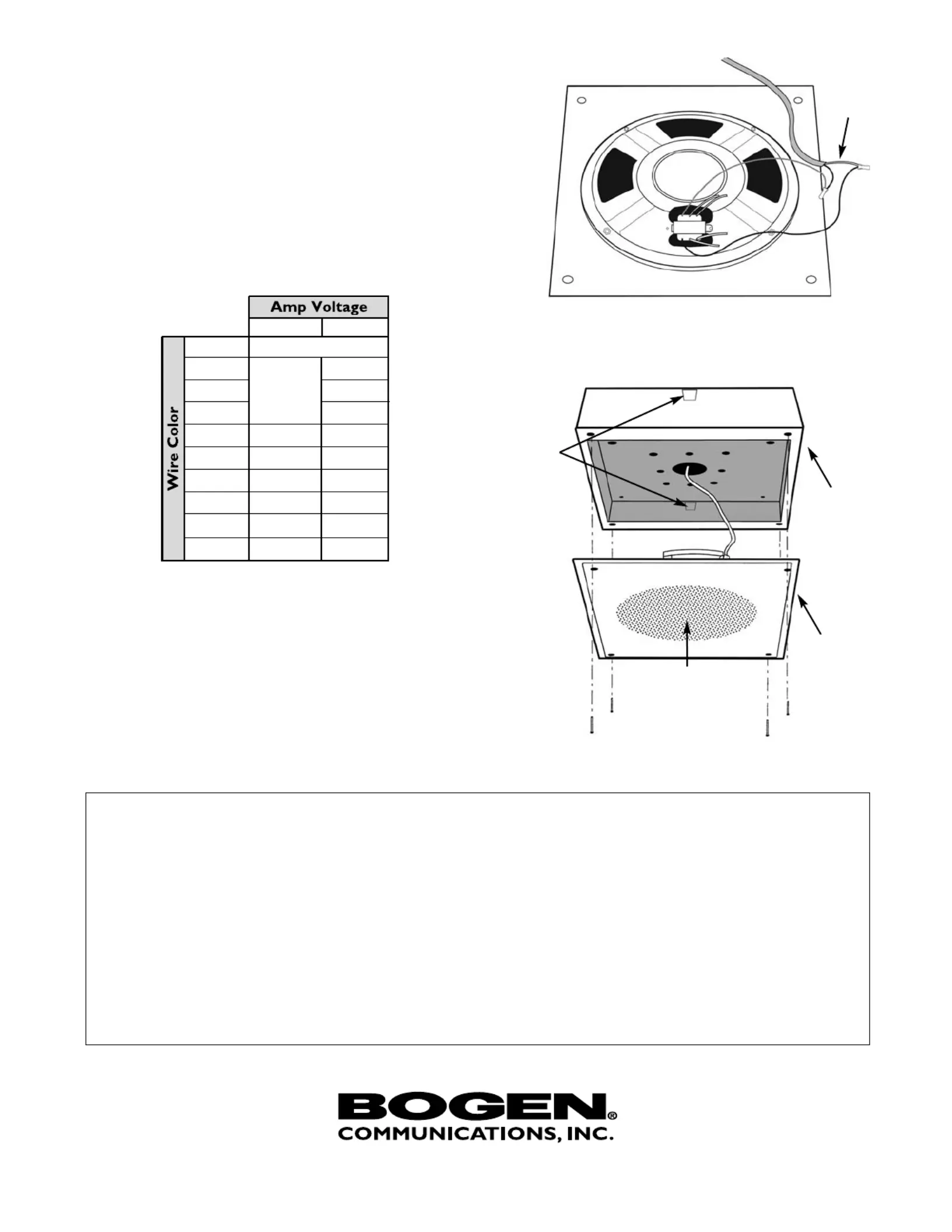

Package Contents:

• Back box enclosure

• Grille with speaker assembly

• Two crimp-type connectors

• Two toggle bolts

• Two wood screws

• Two washers

• Four 1" screws for attaching

grille assembly

Ceiling

Toggle bolts

(for sheet rock)

Enclosure

mounting holes

Wiremold

®

Knockouts
