AXAMP-FD3

INSTALLATION INSTRUCTIONS

AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 1/30/25 INSTAXAMP-FD3

INTERFACE FEATURES

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape

• Wire cutter

• Zip-ties

• Multimeter

TABLE OF CONTENTS

Installation & Installation Options2 ........................

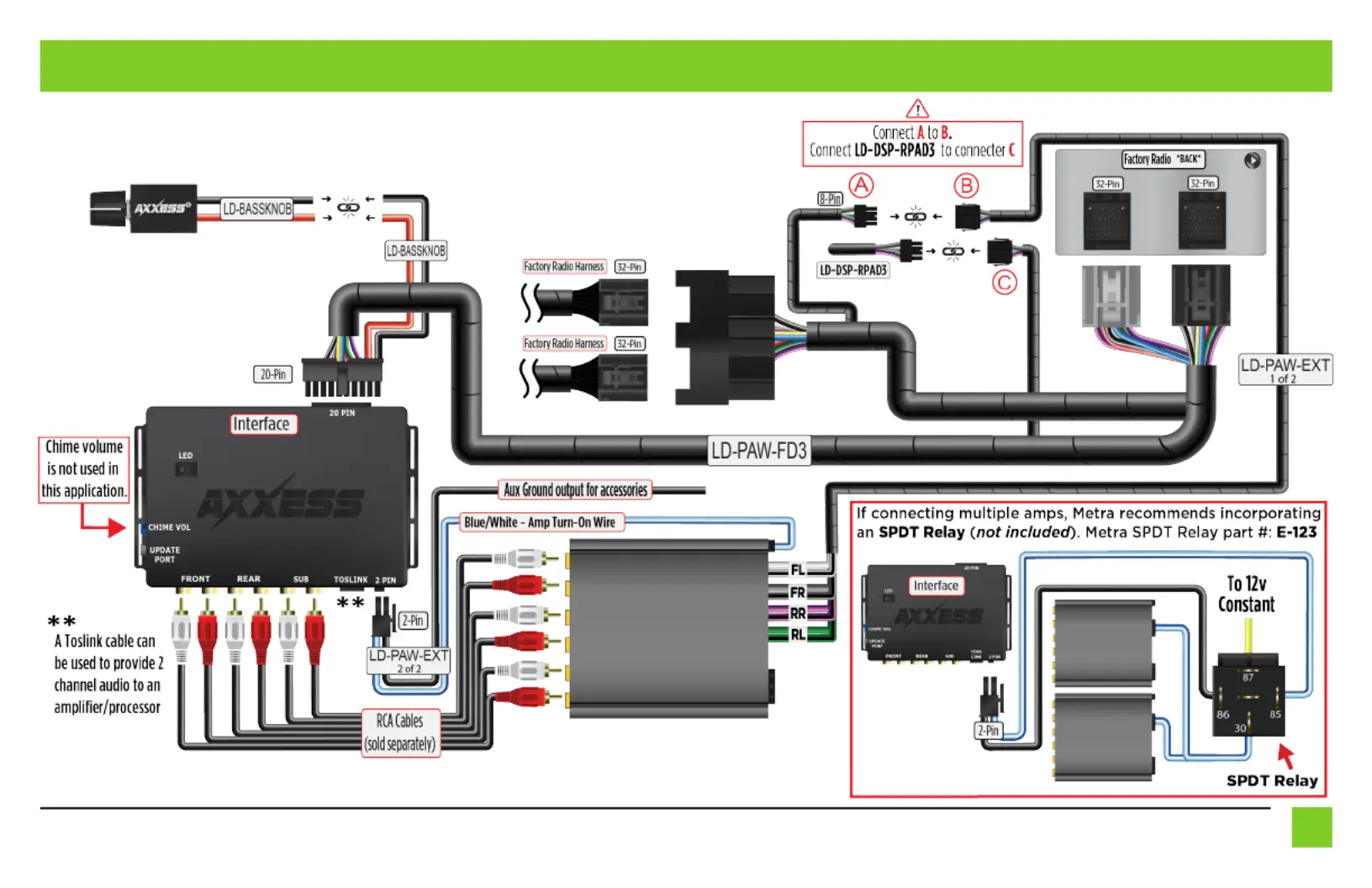

Adding Amp(s) to a Factory System3 ....................

Troubleshooting.....................................................4

• Designed for non-amplified vehicles

• Provides 6 channels of 5-volt RMS audio

• Non-fading full-range output (channels 5 and 6)

• Simple plug-n-play installation behind the radio

• No programming required

• Dual-colored LED display

• Input: 50W per channel

• Amp turn on trigger (DC): 250mA

• 2-channel S/PDIF out (front)

APPLICATIONS

Visit for current application listAxxessInterfaces.com

INTERFACE COMPONENTS

• AXAMP-FD3 Amplifier integration interface

• AXAMP-FD3 vehicle T-harness

• Bass knob

• LD-DSP-RPAD3

Amplifier Integration Interface

Fits Ford Select Models

2020-Up

www.MetraOnline.com

MetraOnline.com may be used to assist

with dash assembly instructions. Simply

enter your Year, Make, Model vehicle

into the vehicle fit guide and look for the

Dash Kit Installation Instructions.

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights, are

plugged in before reconnecting the battery or cycling

the ignition to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.
