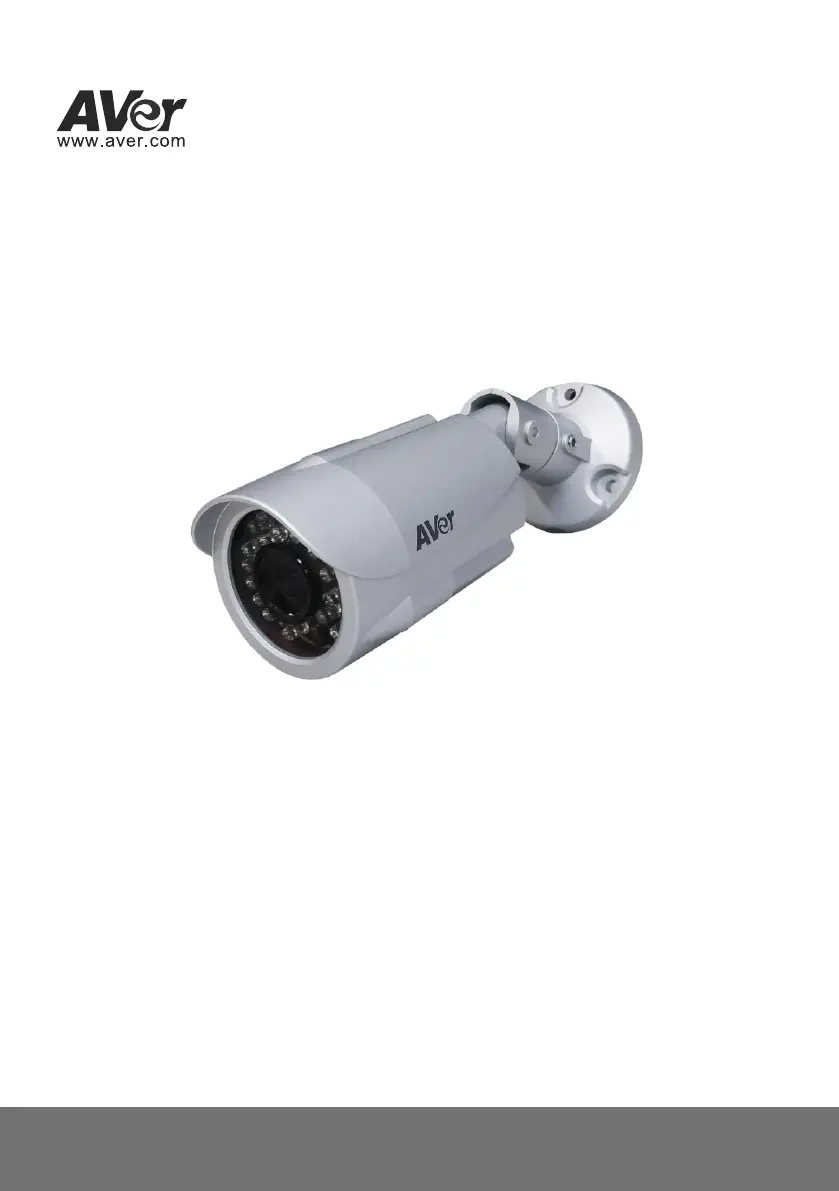

AVer FB10 26
User Manual
Table of Contents
PRODUCT SPECIFICATIO NS ............................................................................................. 1
PACKAGE CONTENTS ....................................................................................................... 5
PRODUCT INSTALLATION ................................................................................................. 6
M S 6 ONITOR ETTING .............................................................................................................
H IARDWARE NSTALLATION.................................................................................................... 7
P O E OWER VER THERNET (POE) .......................................................................................... 8
IP A SSIGNMENT.................................................................................................................. 9
F CINDING IP AMERA BY USING ITE RECORDING SOFTWARE“NXU L”.......................................... 9
F CINDING IP AMERA BY USING “AV ”ER AM TILITYIPC U ......................................................... 13
U NON- S N SING DHCP ERVER/ROUTER ETWORK................................................................ 15
INSTALL A X C CTIVE ONTROL ............................................................................................... 17
USING THE IP CAMERA BROWSER INTERFACE .......................................................... 19
P REVIEW ......................................................................................................................... 19
S > G YSTEM ENERAL ......................................................................................................... 21
S > G > M YSTEM ENERAL AINTENANCE................................................................................. 21
To Upgrade the IP Camera Firmware ....................................................................... 22
S > G > DYSTEM ENERAL ATE IME& T ................................................................................... 23
S > U M YSTEM SER ANAGEMENT ......................................................................................... 24
S > U M YSTEM SER ANAGEMENT ......................................................................................... 24
S > N S > S YSTEM ETWORK ETTING ETTING........................................................................... 26
S > N S > S YSTEM ETWORK ETTING EVER ............................................................................. 27
S > N S > YSTEM ETWORK ETTING DDNS ............................................................................. 28
S > N S > O 1 YSTEM ETWORK ETTING THER .......................................................................... 30
S > N S > O 2 YSTEM ETWORK ETTING THER .......................................................................... 32
S > N S > 6 YSTEM ETWORK ETTING IPV................................................................................ 36
S >YSTEM ADVANCE > HTTPS .......................................................................................... 37
S >YSTEM ADVANCE > SNMP ...........................................................................................39
S >YSTEM ADVANCE > A CCESS LIST ................................................................................... 41
S >YSTEM ADVANCE O> Q S/DSCP ...................................................................................42
S > I YSTEM MAGE.............................................................................................................. 43
S > I > OSD YSTEM MAGE ................................................................................................... 43
S > I > P YSTEM MAGE REFERENCE....................................................................................... 44
S > I > AYSTEM MAGE DVANCED ........................................................................................... 45
S > I > PYSTEM MAGE RIVACY ASKM ..................................................................................... 47
S > V S > G YSTEM IDEO TREAM ENERAL ...............................................................................48
S > V S > S 1 YSTEM IDEO TREAM TREAM ............................................................................... 49
S > V S > S 2 YSTEM IDEO TREAM TREAM ............................................................................... 51
S > V S > S 3 YSTEM IDEO TREAM TREAM ............................................................................... 53
S > C YSTEM SD ARD......................................................................................................... 54
E >VENT A > M RRANGEMENT OTION.................................................................................... 55
E >VENT A > P RRANGEMENT REFERENCE ............................................................................ 56
E > S VENT CHEDULE .........................................................................................................57
STATUS NFORMATIONI ....................................................................................................... 60
NETWORK CONFIGURATION .......................................................................................... 61
FACTORY DEFAULT ......................................................................................................... 63
TROUBLESHOOTING ....................................................................................................... 64
APPENDIX ......................................................................................................................... 65
FCC NOTICE (CLASS A) ...................................................................................................66
COPYRIGHT ...................................................................................................................... 66
NOTICE .............................................................................................................................. 66
WARNING .......................................................................................................................... 66
LIMITED WARRANTY ....................................................................................................... 67
LIMITATIONS OF WARRANTY .........................................................................................67
DISCLAIMER OF WARRANTY .........................................................................................67
LIMITATION OF LIABIL ITY ............................................................................................... 68
GOVERNING LAW AND YOUR RIGHTS .......................................................................... 68
1
Product Specifications
Real Time HD 720P
Digital Wide Dynamic Range
Adjustable Shutter Speed
3D+2D Digital Noise Reduction
Adjustable Sense Up
Day & Night Manual Switch Time Control
Power over Ethernet
Built-in IR LED, M Available 20
IP66
H.264/ M-JPEG Compression
Micro SD C Backup(SD card is not included) ard
Support iPhone/Android/Mac
SDK for Software Integration
Free Bundle 32CH Recordi Software ng
2
Specications
Hardware
CPU
Multimedia SoC
RAM
128MB
Flash
16M
Image sensor
1 / 4” Mega-Pixel CMOS sensor
Lens type
2.8mm @ F1.8
View Angle
76.9°(H), 49.7°(V)
Shutter time
1/10~1/24,000 sec
Min.illumination
Color : 0.35 Lux @F1.8
B / W: 0 Lux (IR LED ON)
ICR
Mechanism IR cut Filter
Audio Input/Output
N/A
IR distance
20 Meter
Power Over Ethernet
Yes
Power Consumption
DC 12V Max: 3.61W(IR ON); 1.64W(IR O ) FF
PoE Max: 802.3af, 4.33W (IR ON); 1.97W(IR O ) FF
Operation Temperature
-10°C ~ 50°C
Dimensions
68mm ( ) x 102mm (H)
Weight
550g
Network
Ethernet
10/ 100 Base-T
Network Protocol
IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access
list, RTSP, TCP/ IP, UDP, SMTP, FTP, PPPoE, DHCP,
DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour
3
System
Video Resolution
1280x800@30fps,1280x720@30fps , x600@30fps, 800
640x480@30fps, 320x240@30fps, 176x144@30fps
Video Adjust
Brightness, Contrast, Hue, Saturation, Sharpness, AGC,
Shutter Time, Sense-up, D-WDR, Lens Distortion
Correction, Flip, Mirror, Day&Night adjustable, Red Gain
and Blue Gain, Denoise, Anti Fog
Triple Streaming
Yes
Image snapshot
Yes
Full screen monitoring
Yes
Privacy Mask
Yes, 5 different areas
Compression format
H.264/ M-JPEG
Video bitrate adjust
CBR, VBR
Motion Detection
Yes, 3 Different Areas
Triggered action
Mail, FTP, Save to SD card, SAMBA, DO
Pre/ Post alarm
Yes (Pre: 5 secs/ Post: 5 secs)
Security
Password protection, IP address ltering, HTTPS
encrypted data transmission, QoS/DSCP
Firmware upgrade
HTTP mode, can be upgraded remotely
Simultaneous connection
Up to 10
MicroSD card management
Recording trigger
Motion Detection, IP check, Network break down (wire
only),Schedule
Video format
AVI, JPEG
Video playback
Yes
Delete les
Yes
4
Web browsing requirement
OS
Windows 7, XP
Microsoft® IE 8.0 or above
[Note] Please enable “Compatibility View” while using
IE 10 or above.
Hardware Suggested
iOS 4.3 or above, Android 1.6 or above.
Mobil support
Intel Dual Core 2.53G
RAM: 1024MB
Graphic card: 128MB
*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
5
Package contents
Item
Descriptions
1. FB1026
2. Hex wrench
3. RJ45 female to female connector
4. Screws
1. (User s Manual and Quick Guide, NVR CD ’
software included)
6
Product Installation
Monitor Setting
1. Right-click on the desktop. Select “ ”Properties
2. Change “Color quality” to “Highest (32-bit)”.
7
Hardware Installation
1. Connector Instruction
Connect the power adaptor rst, then connect the IP Camera to the PC or network, and set up the
network congurations according to the network environment.
2. Axis Bracket
Use the 3-Axis bracket to adjust the camera to the appropriate angle, then turn and tighten the screw
to x it.
8
Power Over Ethernet (Po E)
Set up the camera through Power over Ethernet (PoE). Po a technology that integrates power IP E is
into a standard LAN infrastructure. It enables power to be provided to the network device, such as an
IP camera, using the same cable as that used for network connections. It eliminates the need for
power outlets at the camera locations.
[Note] 802.3af 15.4W PoE Switch is recommended. ,
Ethernet
PoE Switch
PoE IP Camera
PoE IP Camera
Ethernet Cable
Ethernet Cable
9
IP Assignment
There are two ways to nd IP Cameras:
Finding IP Camera by using the “NXU Lite recording software”
Finding IP Camera by using the “AVer IPCam Utility”
Finding IP Camera by using “NXU Lite recording software ”
1. The NXU Lite software is in the attached software CD. Before launching it, please install the
software rst. During the installation process, users will be required to input a User name and
Password for login NXU Lite system. Users can dene the User name and Password as desired.
Please refer to the NXU Lite user manual for detailed installation instructions.
2. To run the application, double-click on your PC desktop or click Start Programs DVR > > >
NXU Lite. For security purposes, some of the features require you to enter the User name and
Password before it can be accessed. When the Authorization dialog box appears, key in your User
ID and Password. (If this is the first time, enter the one you have registered when installing the
software.
Click it to call out the
virtual keyboard.
10
3. Click the “ ”Setup button.
4. Click the “Add IPCam” button.
11
5. Select “IP Camera” item.
6. Enter IP Camera’s ID and Password (default is admin/admin Auto Search) and click “ ” to nd
camera.
7. In the Search Result window, click the IP camera model that the user has purchased (Please
ignore ONVIF connection item); the camera is in red text that is congurable. Users can click
on the camera in the red text and congure the IP camera s settings’; even if the IP camera is not in
the same IP segment. Press “ ”OK to back to the previous screen and press to start go ” ”Connect
live view.
12
Click the IP camera model
that user has purchased (ex:
FB 6 102 ).
Please ignore ONVIF
protocol selection; NXU Lite
doesn t support ONVIF ’
connection.
13
Finding IP Camera by using “AVer IPCam Utility”
1. Use the software, “AVer IPCam Utility” to assign the IP address of the IP camera. The software is
in the attached software CD.
2. Run the IPCam Utility
3. Select the proper network adapter and click [Search] to begin searching.
4. Select and double click the IP camera you want to access. If you want to change the settings of the
selected IP camera, enter the user ID, correct password, and change the settings and then click
Apply button. This will change the setting and rescan the network again.
14
5. The IE browser will open and direct you to the IP camera login page. This requires IPViewer.ocx to
run. If the IE ActiveX warning message appears, click to allow running the add- . on
[Note]
The default IP address is: 192.168.1.168
The default ID and Password are both . ” ”admin
You can’t enter a device name in Chinese any other special characters (' " \ & ^). or
Gateway number can t be 0 . ’ “ ”
IP camera device name should be less than 30 digits
Default ID: admin
Default Password: admin
16
IP camera IP addresses :
A quick way to access remote monitoring is to double-click on a selected IP camera Camera Name in “
list AVer IPCam Utility. Then, the IE browser will open and connect to the IP camera. ”in
Then, please key in the default “ID” “ ”, both of which are “ ” and Password admin .
17
Install ActiveX Control
The rst time you attempt to view the camera video via Internet Explorer, it will ask you to install the
ActiveX component.
If the installation fails, please check the security settings for the Internet Explorer browser.
1. Tools IE Internet Options… Security Tab Custom Security Settings Level…
Download unsigned ActiveX controls Select “ ” or Prompt.Enable
2. Tools IE Internet Options… Security Tab Custom Level… Initialize and script ActiveX
controls not marked as safe Select “Enable” or Prompt.
1
2
3
4
18
5
When the following dialogue box appears, click “Yes”.
19
Using the IP Camera Browser Interface
The admin have the full access to the IP camera browser interface. The menu on the left, you can
expand and navigate to access all the features.
Prev iew
Launch the Internet Explorer browser, type the IP address of the IP camera in the address eld. It will
show the following dialogue box. Key-in the ” ” and “ ”. The defaultID Password ” ” and “ID Password”
are both “admin”.
Once connected to the IP camera, the following program interface will appear.
(1)
(2)
(3)
(4)
(5) (6) (7) (8)
(11)(12) (10)
(9)
20
Name
Function
(1) System/Event/Status
Information
S up IP camera s conguration. et ’
(2) Login IP
Show PC’s IP address
(3) Bandwidth
Show current IP camera s transmitting bandwidth ’
(4) FW Version
Show IP camera’s current rmware version
(5) Logout
Exit the application
(6) Zoom control
Reset zoom level.
Increase zoom level.
Decrease zoom level.
Use the scroll bar to zoom in or zoom out the
video screen
(7) Capture
Capture and save the image on the screen in *.bmp format
(8) Record
Start/stop audio and video recording. The recorded video will
be saved in *.avi format.
(9) Language
Select the browser interface language.
(10) Video screen
Change the video screen display.
Display the actual video pixel size
Display the video screen in compact size.
Display the video in full screen mode. Press ESC to exit full
screen mode.
(11) Stream
Switch to view the video stream type. The IP camera can send
multiple video streams of up to 3 types. To change the video stream
setting, go to System > Video Stream.
[Notes]When streaming 2 setting in”Video Setting” is closed, there
won t have other stream option ’
(12) Direction Controller
Move the position of the view point while in zoom mode. User has
to zoom in rst.
21
System > General
In this section, only admin level is authorized to congure the IP camera system maintenance and the
date and time settings.
System > General > Maintenance
In the Maintenance tab, the administrator can check the system event log, upgrade the system
rmware, reset the conguration settings without having to change the user management and network
settings, reboot, and restore all back to factory default settings.
(1)
(2)
(3)
(4)
(5)
(6)
Name
Function
(1) Export Settings
Upload to save all the conguration settings from the IP camera to
the computer hard disk.
(2) Reboot
Turn the IP camera o and on again.
(3) Factory default
Set all the conguration settings back to default except the user
management and network settings.
22
Name
Function
(4) Firmware Upgrade
Upgrade the rmware to the latest version.
To Upgrade the IP Camera Firmware
1. Download the le from
our website and save it
on your computer hard
disk.
2. Click Browse. Locate
and select the le and
click Open.
3. Click Apply. Wait till you
see the massage
“Firmware Upgrade OK!!”. You may now click the Internet
Explorer browser refresh button or press F5. The login page will
appear.
(5) Import
Download to replace the current settings with the conguration
settings le from the computer hard disk to IP camera.
(6) System log
Display the IP camera system event log.
23
System > General > Date & Time
In the Date & Time tab, admin“ ” the istrator can set and update the system date and time. After ’s
lling in correct s the setting , click Apply to apply the new settings.
(1)
(2)
(3)
(4)
Name
Function
(1) Current Date & Time
Display the current date and time.
(2) Date Format
Select the date display format.
(3) Time Zone
Set the local time zone. Check the box next to “Enable Daylight
Saving” to enable and setup the start date and end date for
daylight saving time.
Tuotetiedot
| Merkki: | AVer |
| Kategoria: | Valvontakamera |
| Malli: | FB1026 |
Tarvitsetko apua?
Jos tarvitset apua merkille AVer FB1026 esitä kysymys alla ja muut käyttäjät vastaavat sinulle
Valvontakamera AVer Käyttöohjeet
21 Tammikuuta 2025
21 Tammikuuta 2025
5 Tammikuuta 2025
8 Joulukuuta 2024
26 Lokakuuta 2024
26 Lokakuuta 2024
26 Lokakuuta 2024
26 Lokakuuta 2024
26 Lokakuuta 2024
Valvontakamera Käyttöohjeet
- Valvontakamera ORNO
- Valvontakamera Bosch
- Valvontakamera D-Link
- Valvontakamera Philips
- Valvontakamera TP Link
- Valvontakamera Kogan
- Valvontakamera Sony
- Valvontakamera Xiaomi
- Valvontakamera Netatmo
- Valvontakamera Lutec
- Valvontakamera Axis
- Valvontakamera HiLook
- Valvontakamera Lorex
- Valvontakamera TCP
- Valvontakamera EMOS
- Valvontakamera Ezviz
- Valvontakamera Speco Technologies
- Valvontakamera Dahua Technology
- Valvontakamera Canon
- Valvontakamera Planet
- Valvontakamera Hikvision
- Valvontakamera V-Tac
- Valvontakamera Leviton
- Valvontakamera CRUX
- Valvontakamera QSC
- Valvontakamera I-PRO
- Valvontakamera DVDO
- Valvontakamera Uniden
- Valvontakamera Lumens
- Valvontakamera BIRDFY
- Valvontakamera Abus
- Valvontakamera EVOLVEO
- Valvontakamera MEE Audio
- Valvontakamera IOIO
- Valvontakamera Arlo
- Valvontakamera Imou
- Valvontakamera Reolink
- Valvontakamera VTech
- Valvontakamera Ring
- Valvontakamera Bea-fon
- Valvontakamera BirdDog
- Valvontakamera Mobotix
- Valvontakamera Milesight
- Valvontakamera Honeywell
- Valvontakamera Flir
- Valvontakamera KJB Security Products
- Valvontakamera Vimar
- Valvontakamera Setti+
- Valvontakamera Acti
- Valvontakamera Chacon
- Valvontakamera Foscam
- Valvontakamera Overmax
- Valvontakamera Alfatron
- Valvontakamera Burg-Wachter
- Valvontakamera ClearOne
- Valvontakamera AViPAS
- Valvontakamera Enabot
- Valvontakamera IDIS
- Valvontakamera Bolin Technology
- Valvontakamera Pentatech
- Valvontakamera Technaxx
- Valvontakamera Ernitec
- Valvontakamera Defender
- Valvontakamera Provision ISR
- Valvontakamera EtiamPro
- Valvontakamera DIO
- Valvontakamera Arenti
- Valvontakamera HuddleCamHD
- Valvontakamera Nextech
- Valvontakamera Sonic Alert
- Valvontakamera GVI Security
- Valvontakamera DSC
- Valvontakamera Control4
- Valvontakamera Conbrov
Viimeisimmät Valvontakamera Käyttöohjeet
28 Tammikuuta 2025
25 Tammikuuta 2025
25 Tammikuuta 2025
25 Tammikuuta 2025
25 Tammikuuta 2025
25 Tammikuuta 2025
25 Tammikuuta 2025
25 Tammikuuta 2025
25 Tammikuuta 2025
25 Tammikuuta 2025
