AdderLink XD150FX
User Guide
Experts in
Connectivity
Solutions
Extender
Solutions
INSTALLATION
1
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
Introduction
Welcome ................................................................................................................ 2
AdderLink XD150FX features ..........................................................................3
Supplied items ....................................................................................................... 4
Optional extras .....................................................................................................5
Installation
Locations ................................................................................................................ 6
Connections ..........................................................................................................6
Fiber optic link ................................................................................................7
Transmitter video link ...................................................................................8
Transmitter audio links .................................................................................8
Transmitter USB link .....................................................................................9
Transmitter serial link ....................................................................................9
Transmitter management port link ..........................................................10
Transmitter power connection .................................................................11
Receiver video display .................................................................................12
EDID management .................................................................................12
Receiver audio devices ................................................................................12
Receiver USB devices ..................................................................................13
Receiver serial link .......................................................................................13
Receiver power connection .......................................................................14
Conguration
Accessing the management application .........................................................15
The Congure page .....................................................................................16
The Maintenance page ................................................................................17
Operation
Indicators .............................................................................................................18
Resetting a module ............................................................................................19
Further information
Getting assistance ..............................................................................................20
Appendix 1 - Options port pin-out ...............................................................21
Appendix 2 - Open source licenses ...............................................................22
Index
Contents
INSTALLATION
2
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
Introduction
WELCOME
Thank you for choosing the AdderLink XD150FX extender modules. Using ber optic
links, these compact modules allow you to transfer the multiple connections listed
below up to 4 kilometers from a host computer (see Transmission distances on the
right).
The high grade screening employed within the metal cased enclosures combined with
the immunity from interference of the ber optic links make the AdderLink XD150FX
modules highly suitable for use in ‘noisy’ industrial environments.
AdderLink XD150FX extender modules provide support for:
• High quality single- or dual-link DVI digital video (up to 2560 x 2048 @60Hz),
• USB keyboard and mouse plus two other USB devices (up to USB 2.0),
• An RS232 serial device at speeds up to 115200 baud,
• Mono microphone,
• Stereo speakers,
• Line-level audio in/out connections.
Transmission distances
The choice of ber used with the AdderLink XD150FX modules has a considerable
effect on the distance over which operation can take place. Using multi-mode ber you
can achieve distances up to 400m (1,312 feet); whereas, by using single-mode ber (and
accompanying SFP modules), the achievable maximum distance is increased to 4km (2.5
miles):
Distance Fiber type Fiber color code SFP module
70m OM1 (TIA-492AAAA) Orange SFP-MM-LC-10G
150m OM2 (TIA-492AAAB) Orange SFP-MM-LC-10G
380m OM3 (TIA-492AAAC) Aqua SFP-MM-LC-10G
400m OM4 (TIA-492AAAC) Aqua SFP-MM-LC-10G
4km OS1 (TIA-492C000) Yellow SFP-SM-LC-10G
OS2 (TIA-492E000) Yellow SFP-SM-LC-10G

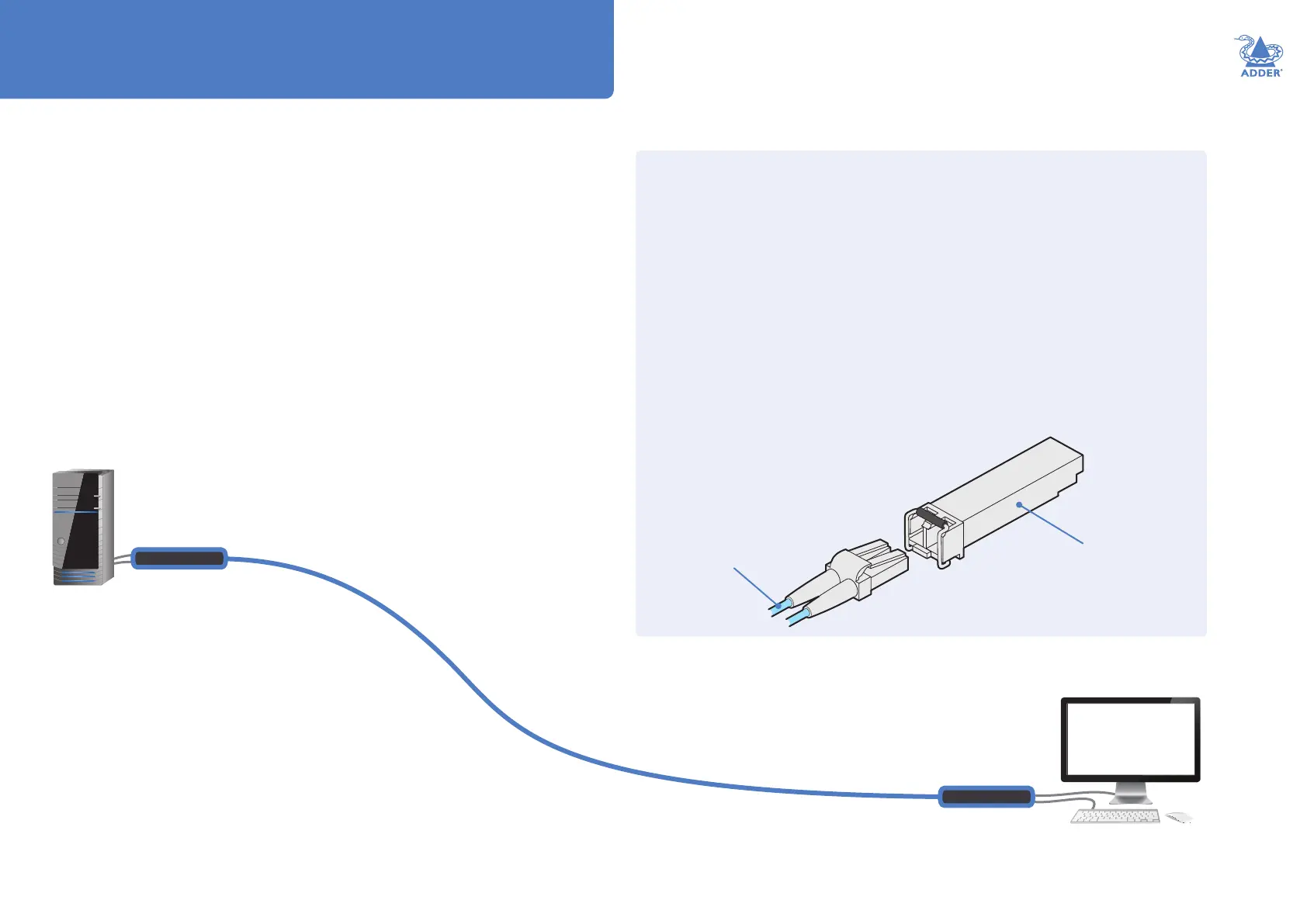

XD150FX
Transmitter
module
XD150FX
Receiver
module
One dual-link DVI-D display
Four USB devices
One RS232 serial device
Stereo speakers plus micr
ophone
Transmitter
Receiver
Fiber optic link
(up to 4km)
The AdderLink XD150FX extender modules
are totally transparent in operation, leaving
you free to use your computer as though
you’re still sitting next to it.
SFP
module
Fiber
color
